1″ OD, 1/2″ ID, 1/4″ Wall Round Tube Fiberglass, Gray
Our 1″ OD, 1/2″ ID, 1/4″ Wall, fiberglass tube is made by the pultrusion process. Fiberglass (random directional) mat, pulled via hydraulics through a bath of resin and pigment. Heated and cured. Our stock lengths are the perfect sizes to ship via standard parcel carriers like FedEx and Post. 8 foot long lengths fit under the oversize 3 shipping mark. Oversize 3 goods (anything over 96.02 inches) will all ship at freight rates which start at $120 and rise from there making our lengths of tube perfect for prototyping, hobbyist, etc…
This listing contains all of the product offerings for the 1″ OD, 1/2″ ID Round Tube including: RT-1-QTR-05, RT-1-QTR-2, RT-1-QTR-4, RT-1-QTR-8, RT-1G-QTR-05, RT-1G-QTR-2, RT-1G-QTR-4, and RT-1G-QTR-8.
Round Tube Typical Properties
Product

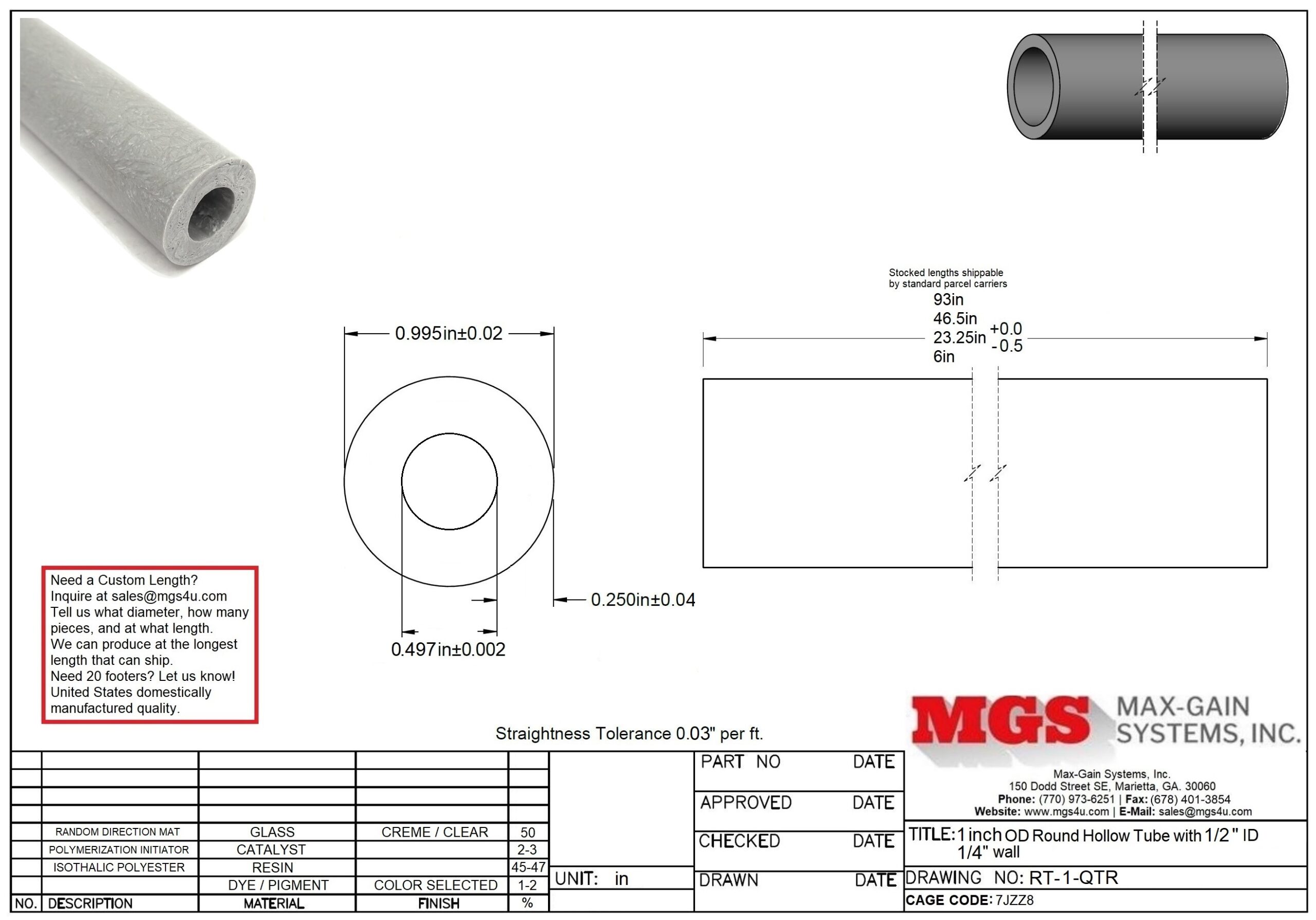

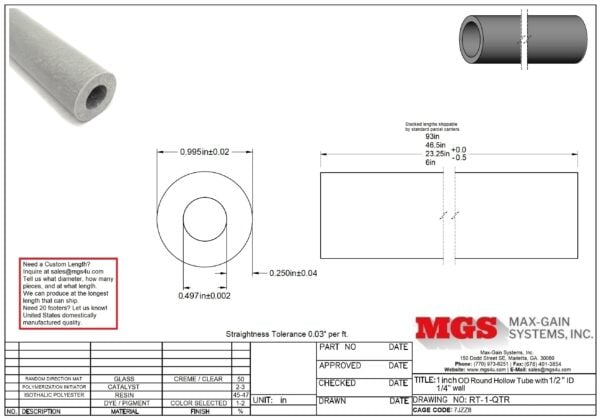

Drawing
Round Hollow Tube Safety Datasheet
MGS Fiberglass Sizes that sleeve 1″ OD, 1/2″ ID, x 1/4″ Wall, Round Hollow Tube:
0.5 inch OD Round Solid Rod fits inside our 1 inch OD x 1/4 inch WALL Round Hollow Tube (full length sleevable)
0.5 inch OD Round Hollow Tube fits inside our 1 inch OD x 1/4 inch WALL Round Hollow Tube (full length sleevable)
1/2″ x 13UNC Fiberglass All Thread Rod fits inside our 1 inch OD x 1/4 inch WALL Round Hollow Tube (full length sleevable)
1.25 inch OD Round Hollow Tube fits over our 1 inch OD x 1/4 inch WALL Round Hollow Tube (full length sleevable)
1.5 inch OD x 1/4 inch WALL Round Hollow Tube fits over our 1 inch OD x 1/4 inch WALL Round Hollow Tube (full length sleevable)
1.25 inch On-Side Square Hollow Tube fits over our 1 inch OD x 1/4 inch WALL Round Hollow Tube (full length sleevable)
MGS Fiberglass Shapes that are size adjacent with 1/4″ wall:
This 1/4 inch WALL Round Tube is available in a Round Sleeving Tube Sample Pack for easier product evaluation. Easily acquire a 6 inch or 2 foot long piece of each size of 1/4 inch WALL Round Fiberglass Tube.
1.25 inch OD x 1/4 inch WALL Round Hollow Tube is the next larger size of 1/4″ Wall Tube.
MGS Fiberglass Shapes that are 1″ size equivalent:
1 inch OD Round Solid Rod is the solid rod size equivalent.
1 inch OD Round Hollow Tube is a hollow tube size equivalent.
1 inch x 8UNC All Thread Rod is the same diameter and is fully threaded.
1 inch On-Side Square Solid Bar is the square shape size equivalent.
Attachments that fit-on, clamp-on, couple, etc…
The 1 inch Stainless Steel, Threaded, Tube and Rod Coupler has open ends to fit over the 1 inch OD Round Hollow Tube.
The 1 inch Painter’s Pole, Threaded, Tube and Rod Coupler has open ends to fit over the 1 inch OD Round Hollow Tube.

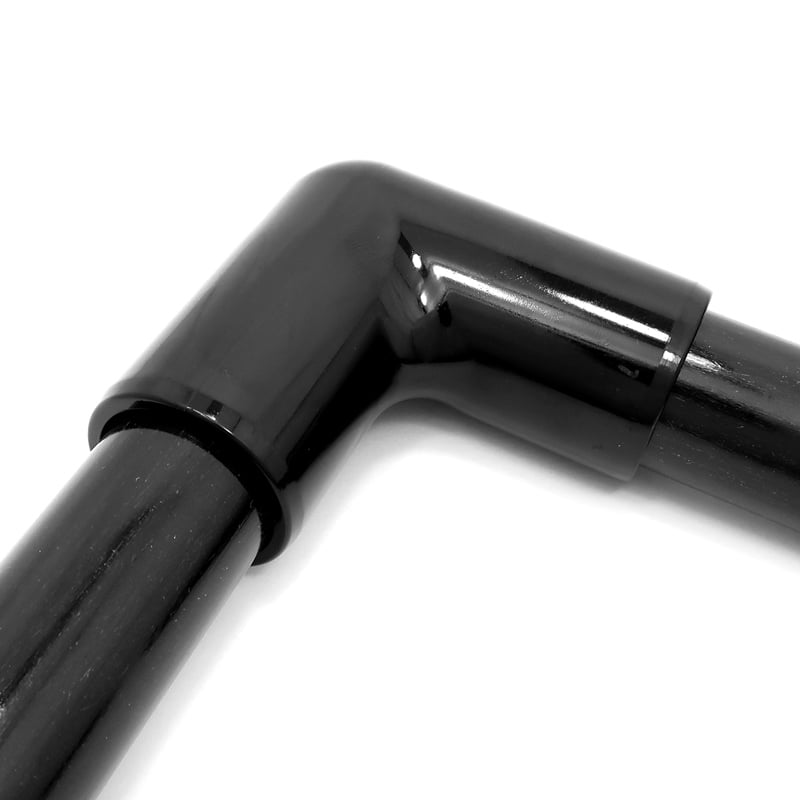

The 1 inch 90 Degree Elbow Fittings fit on the end of the 1 inch OD Round Solid Rod and 1 inch OD Round Tube and allows the connecting of two tubes or rods
The 1 inch Tube and Rod Storage Clip accepts our 1 inch Tube and holds it with a snug grasp. Multiple may be needed for long items.
The 1 inch T-Grip has an open end to fit on 1 inch OD Round Hollow Tube or 1 inch OD Round Solid Rod
The 4-in-1 Paddle has a deep open end to fit on 1 inch OD Round Hollow Tube or 1 inch Round Solid Rod

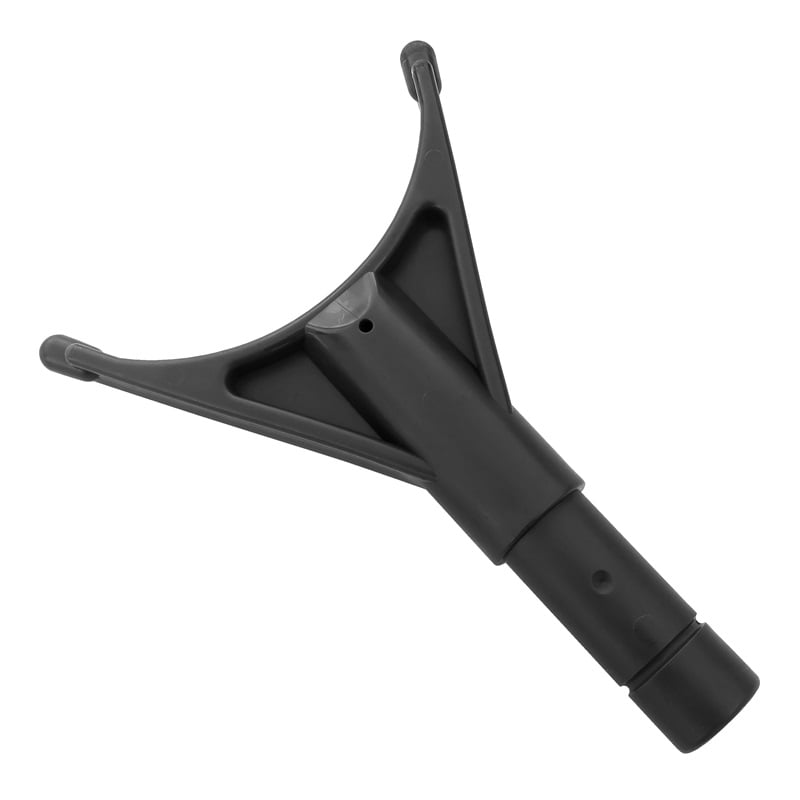

The Push Pole Foot has a deep open end to fit on 1 inch OD Hollow Tube
The 1 inch Guy Ring has a center hole to fit around 1 inch OD Round Hollow Tube or 1 inch OD Round Solid Rod
The 1 inch Camera Mount has an open end to fit over the 1 inch OD Round Hollow Tube.
All 316 Stainless Steel I-Bolt kit designed to perfectly go through our 1 inch OD Round Hollow Tube
The 1 inch Vinyl End Cap fits on the end of the 1 inch OD Round Tube.
The 1 inch White Vinyl End Cap – Food Grade fits on the end of the 1 inch OD Round Tube.
The 1 inch Vinyl Handle Grip fits on the end of the 1 inch OD Round Tube.
Mounts to the ground, walls, vehicles, etc…
The 1 inch ID Wall Mount can be used to attach 1 inch OD Round Tube to a wall.
Data Points for using 1″ OD, 1/2″ ID, 1/4″ Wall Fiberglass Round Tube

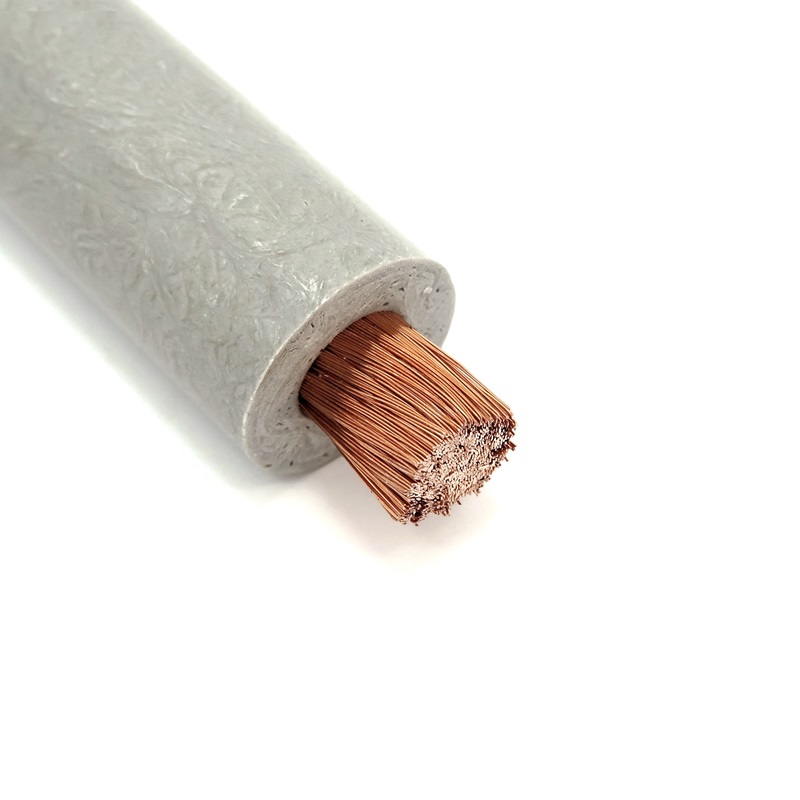

Our 1″ OD, 1/2″ ID, 1/4″ Wall Fiberglass Round Tube can accept 2/0 Gauge (00) AWG Bare Solid Wire or 2/0 Gauge (00) AWG Bare, Tightly Wound, Stranded Wire.

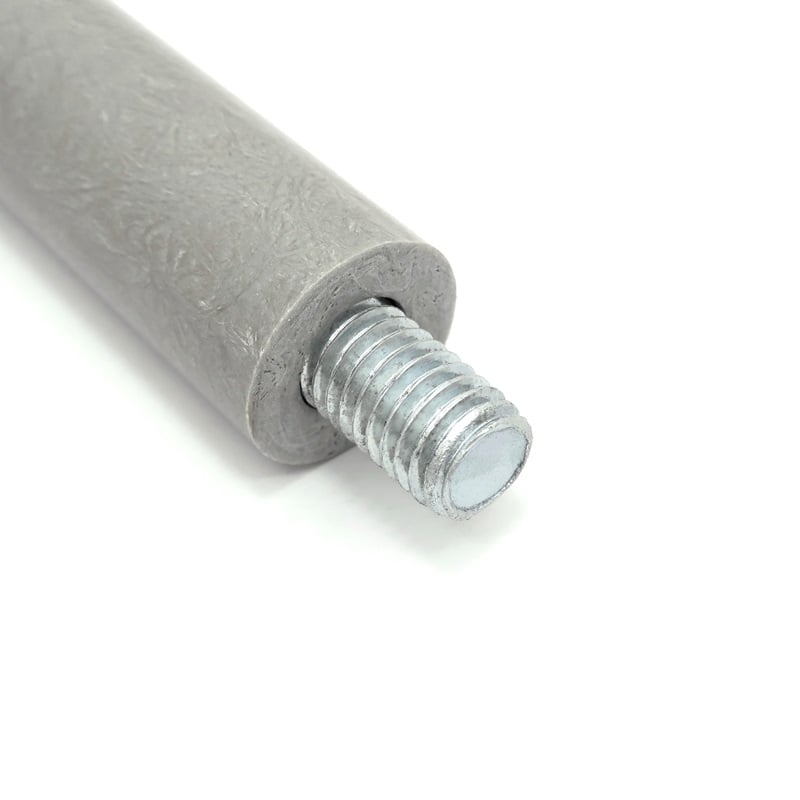

Our 1″ OD, 1/2″ ID, 1/4″ Wall Fiberglass Round Tube can accept 0.50 inch (1/2″) Galvanized Threaded Rod through it.
Round Tube Sleeving and Reinforcement
Round Tube Sleeving Sample Pack
This Round Tube is available in a Round Sleeving Tube Sample Pack for easier product evaluation. Easily acquire a 6 inch or 2 foot long piece of each size of Round Fiberglass Tube.
Round Tube 1/4 inch Wall Sample Packs
This 1/4 inch WALL Round Tube is available in a Round Sleeving Tube Sample Pack for easier product evaluation. Easily acquire a 6 inch or 2 foot long piece of each size of 1/4 inch WALL Round Fiberglass Tube.
Please note: The sleeving and reinforcement guide below is for Max-Gain Systems’ proprietary line of tube and rod only. All sizes are “nominal” and allow a few thousandths for sleeving purposes.
These same stated sizes of tube and rod from other manufacturers probably will NOT mate with our line!
|
Round Tube
|
||
|
Tubing Size
|
Accepted Inside Sizes
|
Accepted Outside Sizes
|
|
no direct sizes
|
||
|
no direct sizes
|
||
|
no direct sizes
|
||
|
no direct sizes
|
||
|
no direct sizes
|
||
Fiberglass Information and Resources
JOINING / CONNECTING
Joining and connecting tubes and rods together through many different methods. Find out which method works for you!
CUTTING / DRILLING
Information on cutting and drilling fiberglass tube and rods. Including which tools work best!
BONDING / ADHESIVES
Information on bonding fiberglass shapes together thru chemical adhesion. Including what NOT to use!
PAINTING / COATING
Information on painting fiberglass tube and rods. Best practices and tips on how to make it less visible.
QUAD SPREADERS
We offer telescoping, Quad Spreaders with usable lengths up to a total of 26 feet! Telescoping Quad Spreaders are discounted from individual piece prices! See our Quad Spreader Information Sheet for details.
QUANTITY DISCOUNTS
Buying ten or more quantity of one size of fiberglass qualifies for a 10% quantity discount on that item. Fifty or more, of one size, qualifies for 15%, and one hundred or more 20%.
WHOLESALE PRICING
If you are a reseller or manufacturer, you may qualify for our factory-direct, wholesale/O.E.M. pricing! SUBSTANTIAL savings are possible with increasing volume, and our customer service is unsurpassed. Email us for quantity pricing.
CONSTRUCTION ADVICE
Available free by telephone. For almost unlimited life, we highly recommend that any fiberglass – even ours which is UV-stabilized – be painted. A sprayed primer coat and flat-black top coat, works best. (See our Max-Tips Info Sheet for details.)
Certificates of Compliance
RoHS DECLARATION
EU REACH
SVHC
CALIFORNIA
PROP 65
CONFLICT MINERALS
About Max-Gain Systems, Inc.
Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage.
Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries. Including but not limited to: marine / boating, aeronautical, agriculture, construction, emergency services, etc…. We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge. We can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc…
RT-1-QTR-8, RT-1-QTR-4, RT-1-QTR-2, RT-1-QTR-05
