Hexbeam Antenna Fiberglass Kits and Accessories
The hexbeam has been one of the most popular new antenna designs for amateur radio use in many years.
An excellent performer, light, with a small turning radius and a relatively low visibility profile, this antenna lends itself to the “build-your-own” enthusiast. This page makes obtaining the needed fiberglass to build your own hexbeam an easy task, and also seeks to make the task of finding design and construction notes far easier, too!
Before ordering the fiberglass for building your Hexbeam, you might want to look at these informational links. If you are aware of other useful / informative hexbeam links, please tell us so that we may make the link available to others.
- Excellent hexbeam construction site by Leo Shoemaker, K4KIO
- KIO Technology pre-built antennas by Leo Shoemaker
- Yahoo HexBeam group (You need to join Yahoo groups to see the pictures in this group but you should be able to read the messages.)
- DL7IO (provides a lot of measurement details but not parts lists)
- Steve Hunt, G3TXQ
- The famous G3TXQ BROADBAND hexbeam design
- Construction photos by Bill Patton, WY3A
- Hexbeam base plate, hardware, and parts site by Ron Mott, W4RDM
- A nice, very low cost rotor for this application, as reported to us by users. (Sorry, we do NOT sell these!)
- Hex antennas and hex antenna parts by K5BOB, including unique non-metallic base plates of UHMW material
- Hex antennas (complete) by DX Engineering
- Hexagonal beam center hubs by Roger Rockwell, NA4RR
Hexbeam Antenna Fiberglass Kit
Our newest version of our fiberglass tube parts kit follows the currently specified cut lengths called for on Leo Shoemaker’s website. If you are building your antenna using Leo’s instructions on his current website, we suggest this kit. This fiberglass kit is also fine for building the broadband version!
|Hexbeam Antenna Fiberglass Kit||$119.95|| |
Fiberglass Quad Spreaders
Max-Gain Systems offers several different types of Quad Spreader arms – up to 26 feet in length!
|Fiberglass Quad Spreader Arms||$16.11 – $67.32|| |
With these additions to our line, our customers have a wide range of choices, allowing them to customize their choice of spreaders for the load the spreaders will be asked to carry: lowest band desired, total number of bands, and the most severe weather conditions likely to be encountered in their location. You may design your quad with budget in mind, or to be “bulletproof”. In either case, our aim is to give you absolutely the most for your money.
MAX-GAIN SYSTEMS’ spreaders – unlike earlier types of sleeved spreaders using smaller diameter, less reliable materials-offer a number of advantages:
- FedEx shippable. Available since the spreaders telescope at 8 feet… saving a great deal over the motor freight charges required for all one piece spreaders.
- Strength. Our design puts the larger diameter (and therefore the greatest strength) where you need it most: at the point of attachment to the boom. The ends of the spreaders are light-allowing flexibility, yet more than strong enough for severe conditions.
- Length. Since each spreader is made from eight foot sections, there is still up to 26 feet of usable length-even allowing an entire foot of overlap!!! More than enough for a 40M reflector arm.
- Stress point reinforcement. Some of the extra length can be used to reinforce the larger diameter with the smaller, at the point of highest stress: where the clamps secure the arms to the spreader mounting plate. This yields a full ¼ inch wall thickness for most spreader types, and sleeved nearly solid for Types 2 and 6!!!
Buying spreaders to repair a damaged Lightning Bolt quad? Take a look at this VERY well done page by WB9DLC
Wire Attachment Method for Quads – Does Not Require Drilling Spreaders

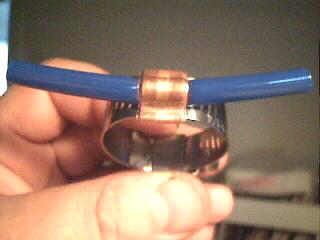

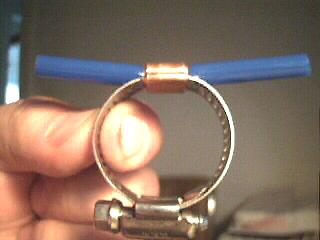

The following photos illustrate an easy method of making almost indestructible clamps to be used to attach element wires on quad antenna spreaders. This method does not require drilling through the spreaders. This method allows easy and infinite adjustment of the corners of the wire loops, for easy and precise loop centering on the element spreaders. This method cushions and protects the wire elements at the points of greatest stress . the loop corners, and prevents sharp bends which weaken the wire.
These clamps consist of an ALL STAINLESS hose screw-clamp.. (be certain the screw clamp says “All Stainless” or the screw itself will be plated, not stainless, and it will eventually rust), a short length of copper plumbing pipe, and a plastic tube. Very simple, but effective. For the plastic tube, it is best to use a very tough and UV resistant material such as truck air-brake hose (from auto parts store) instead of clear vinyl tube. It will last MUCH longer. Also, spray-paint the plastic tube with flat-black spray paint for additional UV protection.
Minimum spreader lengths required for quad reflector loop at various frequencies*
*(calculated for bottom end of bands)
In order to estimate how far out (measured from the center of the boom) a quad wire of a given length will intersect with a spreader, use this formula:
Take the total wire length of the quad loop in feet (for example, 70.79 ft for a driven element on the 20 meter band) and divide it by 4….(about 17.7 in our example). Then square the result…(about 313.3 in our example). Divide this figure by 2….(about 156.65 for the example) and then take the square root. For our example, this yields the result 12.51, so you know that the wire intersect point will be 12.51 feet out the spreader, measured from the center of the boom.
A Far Less Complex Method
(with thanks to Ed Niemi, K6EDJ)
Simply take the cosine of one side of the quad loop (.707 times the length of one side of the quad loop) and measure out the sp reader (measure from the center of the boom) to determine the point of wire attachment! The measurement from corner to corner, measuring down one sp reader, through the boom, and up the opposite sp reader, (wire attachment point to wire attachment point) of each quad loop will be 1.414 times the length of one side of the quad loop.
