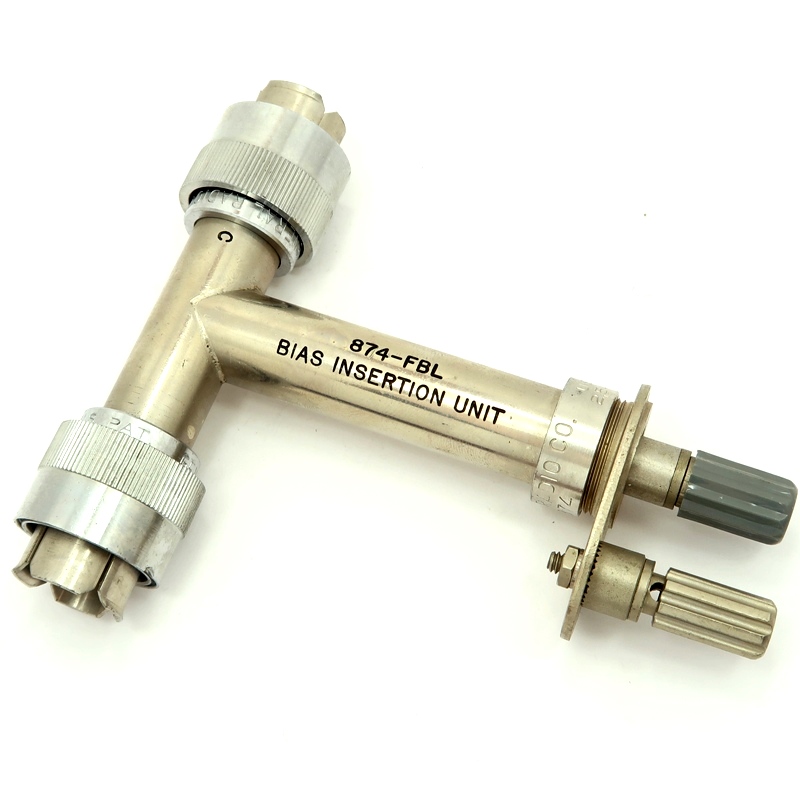

Bias Insertion Unit (locking), General Radio Part #: 874-FBL

$25.00

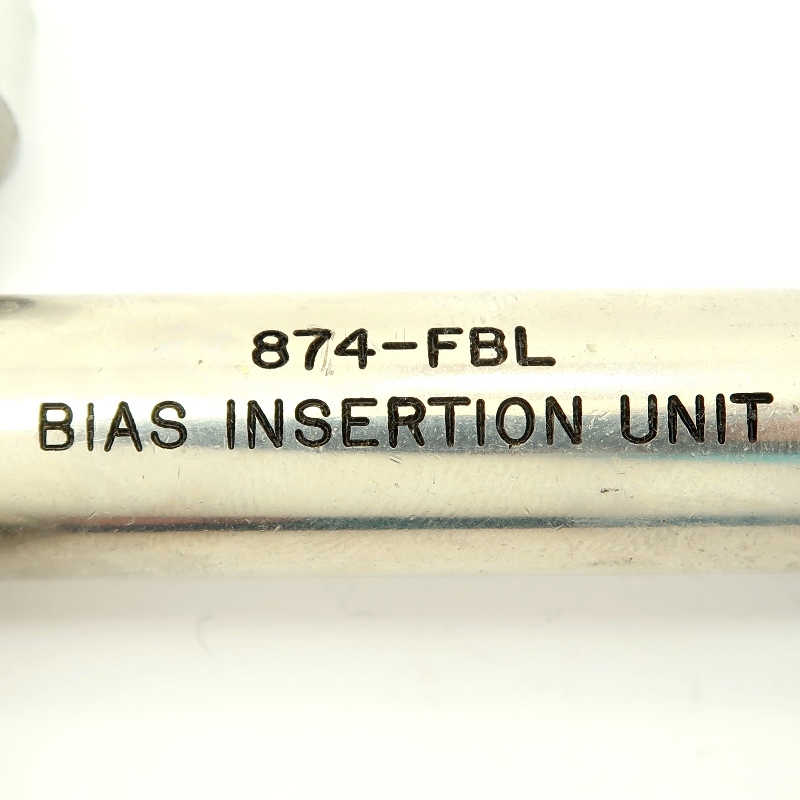

Bias Insertion Unit (locking)

1 in stock

SKU: 874-FBL Categories: , Tags: , ,

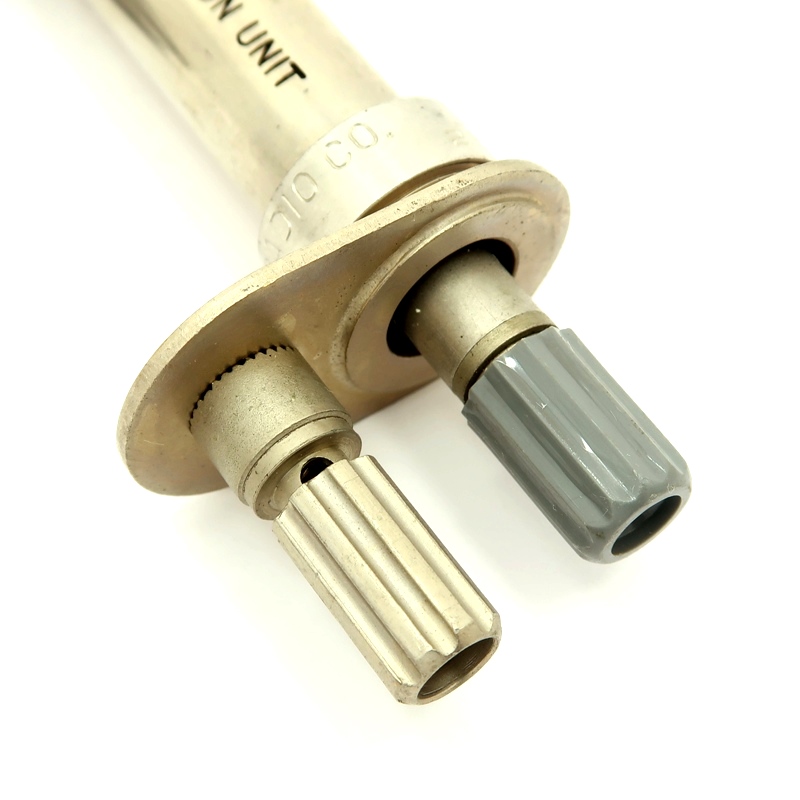

Used with slotted lines, the 1602-B Admittance Meter, and 1609 UHF Admittance Bridge for immittance and similar measurements when bias is to be applied to diodes, transistors, and other solid-state devices. It comprises a blocking capacitor in series with the line, an isolating chose, and a low-pass filter. In slotted-line measurements, the unit is inserted at the source end of the line and therefore introduces no reflections at the measurement terminals. 50 OHM impedance, locking GR-874 connectors. Sourced frommilitary surplus lots.

Additional information

Shipping Weight 6.50 oz
Shipping Dimensions 4.40 × 3.73 × 1.01 in
Connection Type

Connection Type 2

GR874

itemCondition
