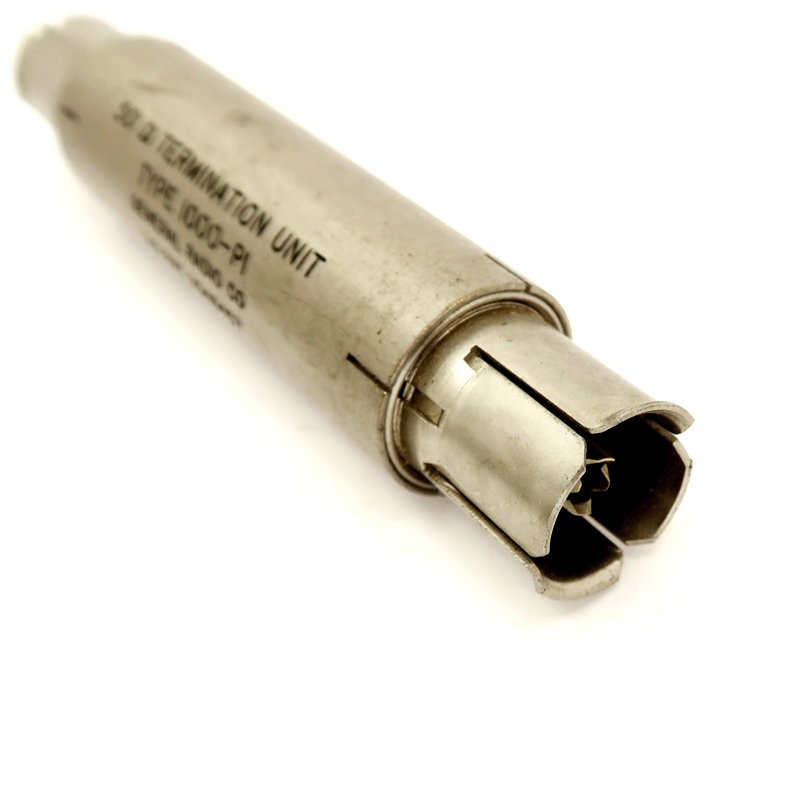

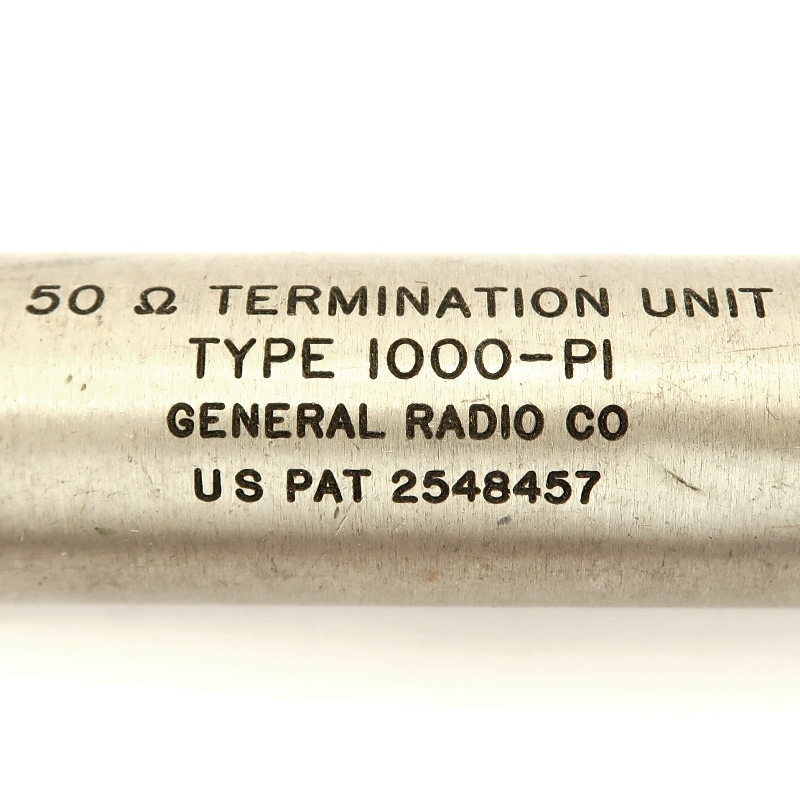

50 OHM TERMINATION UNIT, General Radio Part #: 1000-P1

$39.00

50 OHM TERMINATION UNIT

1 in stock

50 OHM TERMINATION UNIT, an accessory of the Type 1001-A Standard Signal Generator, used in output connections throughout the range of the signal generator, but in particular at the highest frequencies (10-50 Mc), the patch cord may advantageously be terminated at its output end by plugging in the Type 1000-P1 50-ohm Termination Unit. This provides a net output impedance which is lower in value (25 ohms) and more constant with frequency. The output voltage, however, is one-half the voltage indicated by the panel controls. Sourced from military surplus lots.

Additional information

Shipping Weight 3.30 oz
Shipping Dimensions 4.35 × 0.92 × 0.88 in
Connection Type

Connection Type 2

GR874

itemCondition
