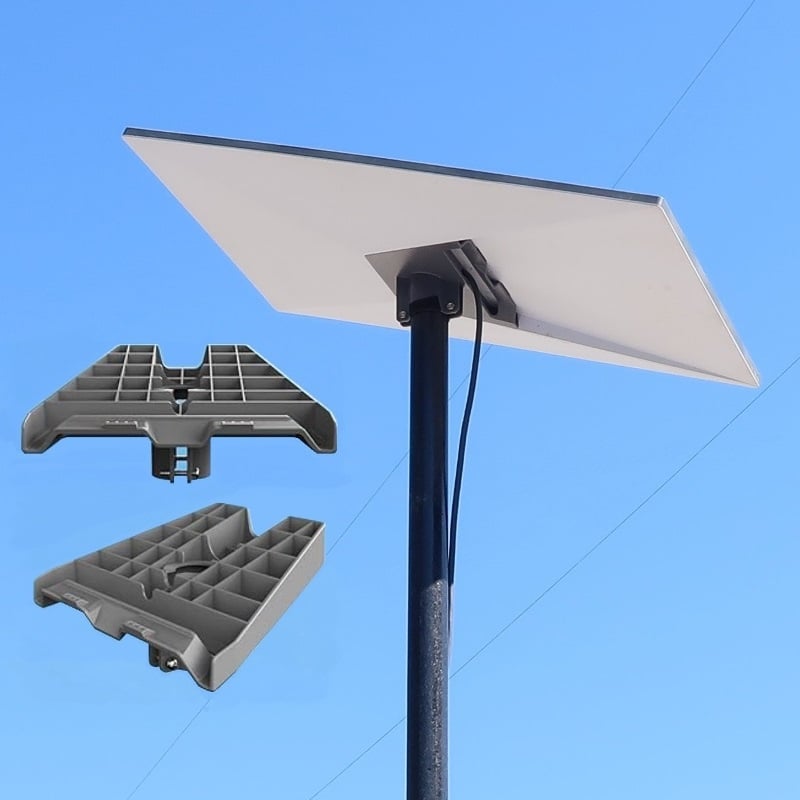

Starlink Gen3 Adapter Kit
This kit is the best way to mount your Starlink Gen3 dish on any pole that has an outer diameter of 1.5 inches.
We offer several different masts, that this will fit, to get you either 36 feet up, 18 feet up, or ~9 feet up with our Ultra Heavy duty series of Push-Up Masts.

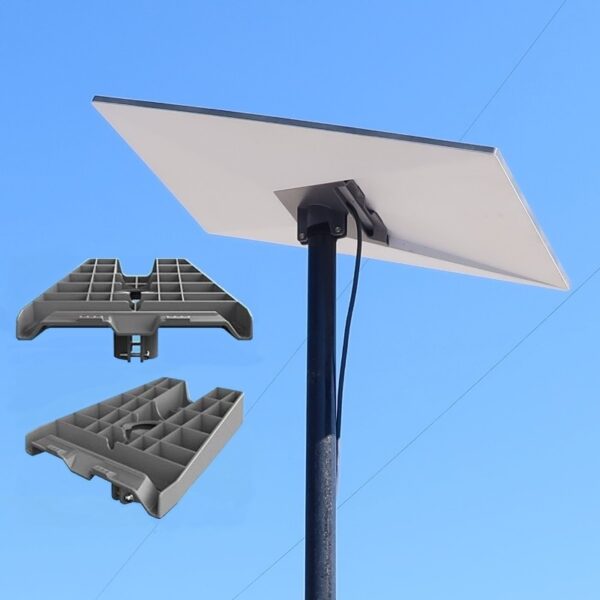

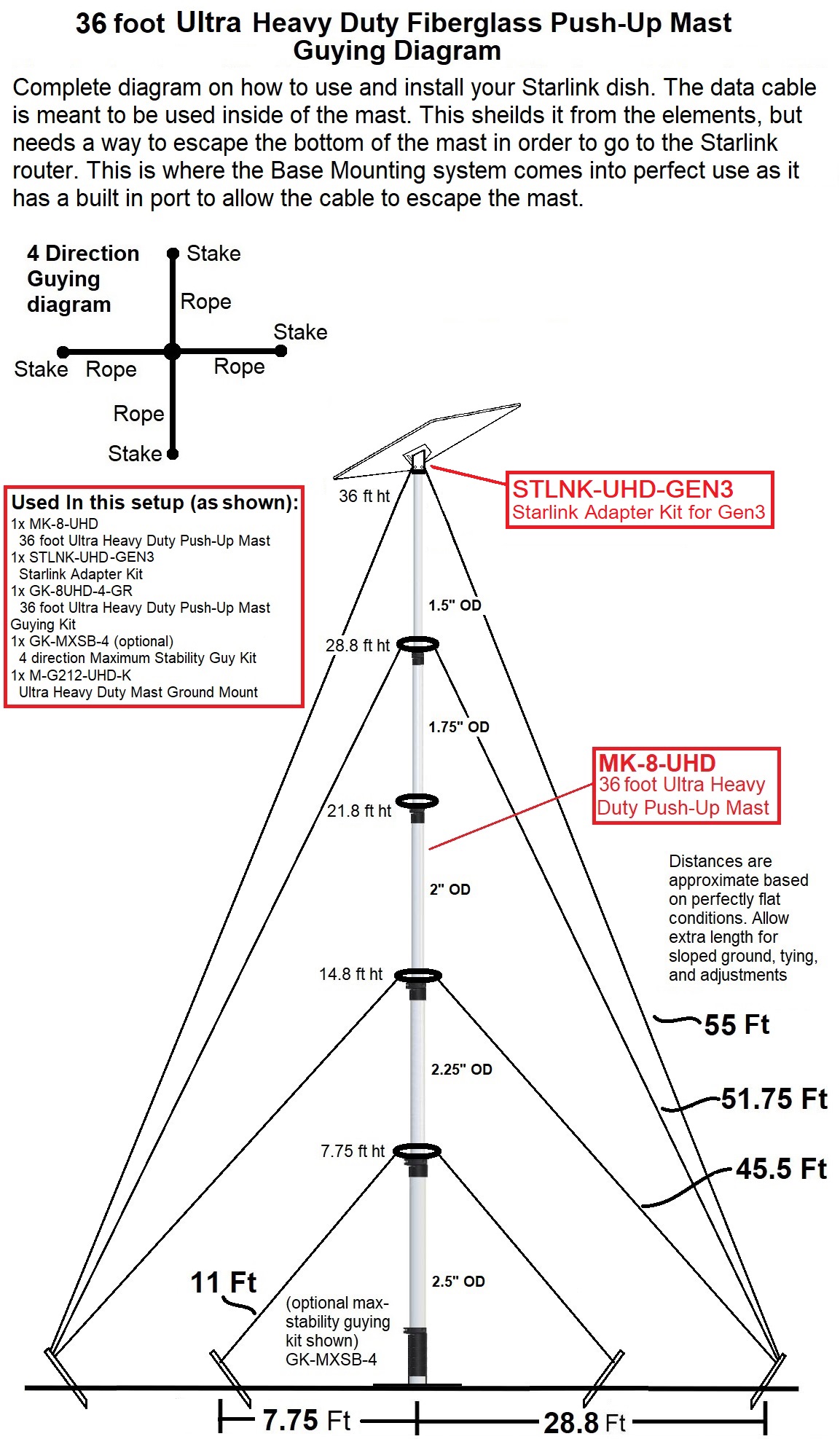

Complete Install Example:
Mounting Starlink Dish to a Mast

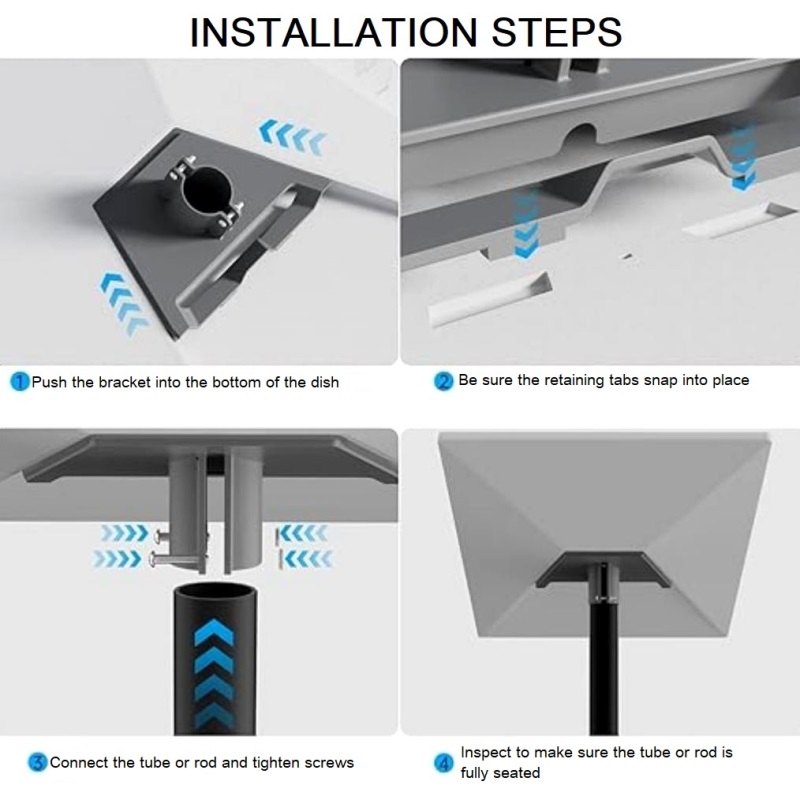

Starlink Gen3 Adapter Instructions

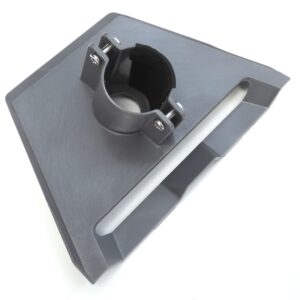

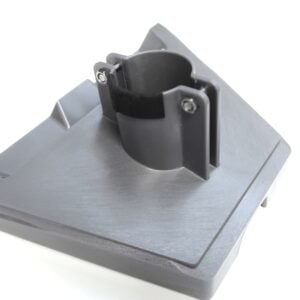

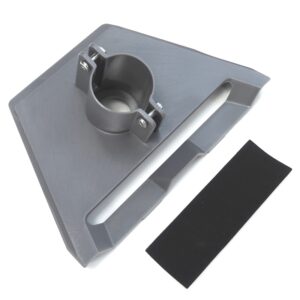

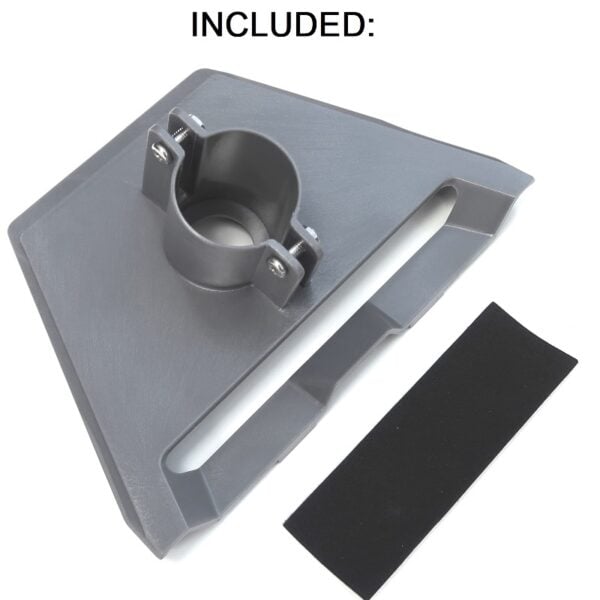

The Starlink Gen3 to UHD mast Adapter Kit, is almost plug and play. Unbox it, apply the grip sticker to the inside of one of the halves of the pole adapter, and you are ready to apply it to the tubing.

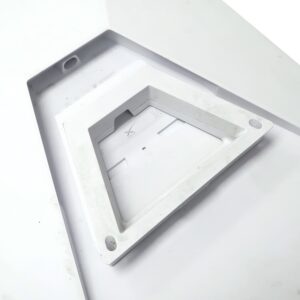

We need to prep the Starlink Gen3 Dish to receive the Starlink Gen3 Adapter by removing the “kickstand” from the bottom of the dish. Pull up on the tab from under the kickstand to release the two retaining tabs from the back of the dish, simultaneously sliding the entire kick stand assembly away from the data port in the dish. The kickstand assembly should now we entirely removed.

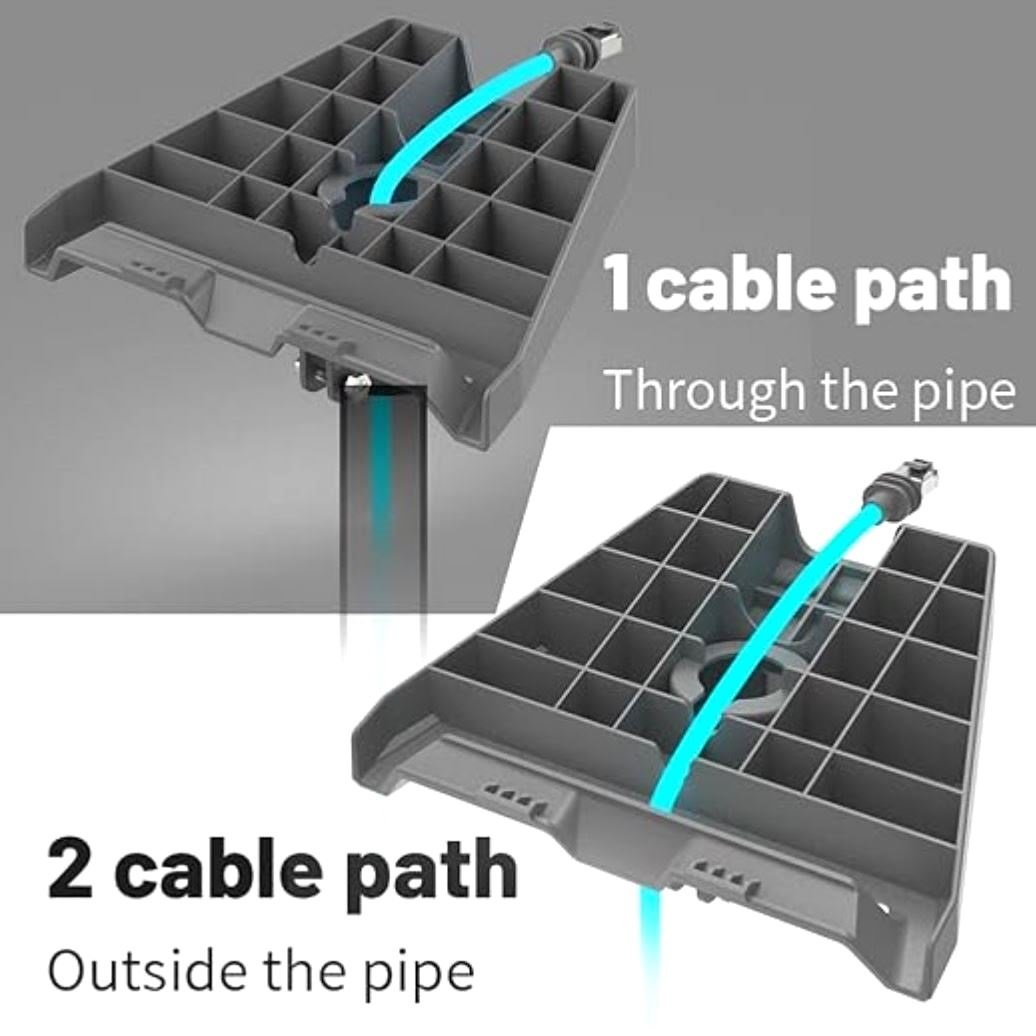

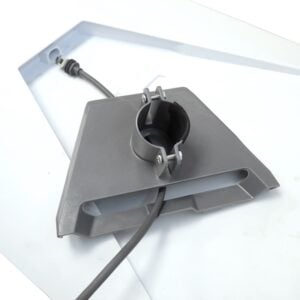

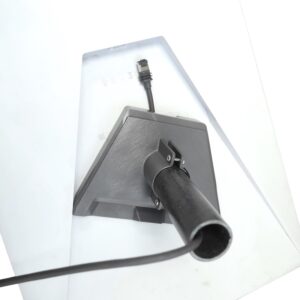

The Starlink Gen3 adapter has two methods for routing the data cable. Cable Path 1 can be routed through the center of the mast for a clean look and also protecting the data cable from UV and other elements. Cable Path 2 can be routed outside the mast for faster, more repeated, more simple installations.
Once assembled, click in the data cable into the data port in the dish then slide and snap the Starlink Gen3 Adapter into the Gen3 Starlink dish.
