RP-SMA Male Crimp Connector for RG-174, RG-316, LMR-100A, and other 0.100 Inch OD Coax
Gold Plated Brass Body
Gold Plated Brass Center Pin
Detailed Product Information
This RP-SMA Male Crimp Connector is one of several thousand RF products available from Max-Gain Systems, Inc.

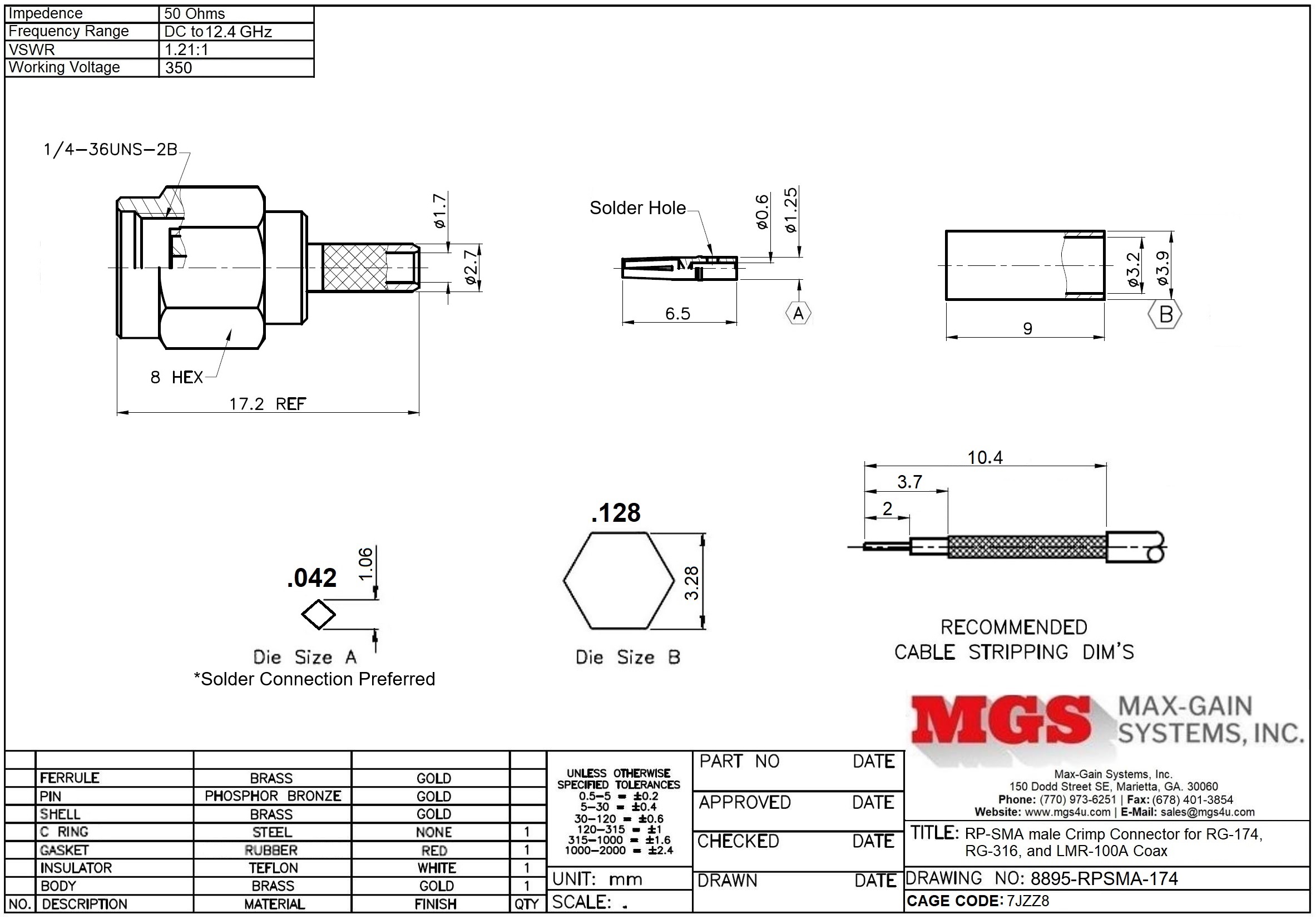

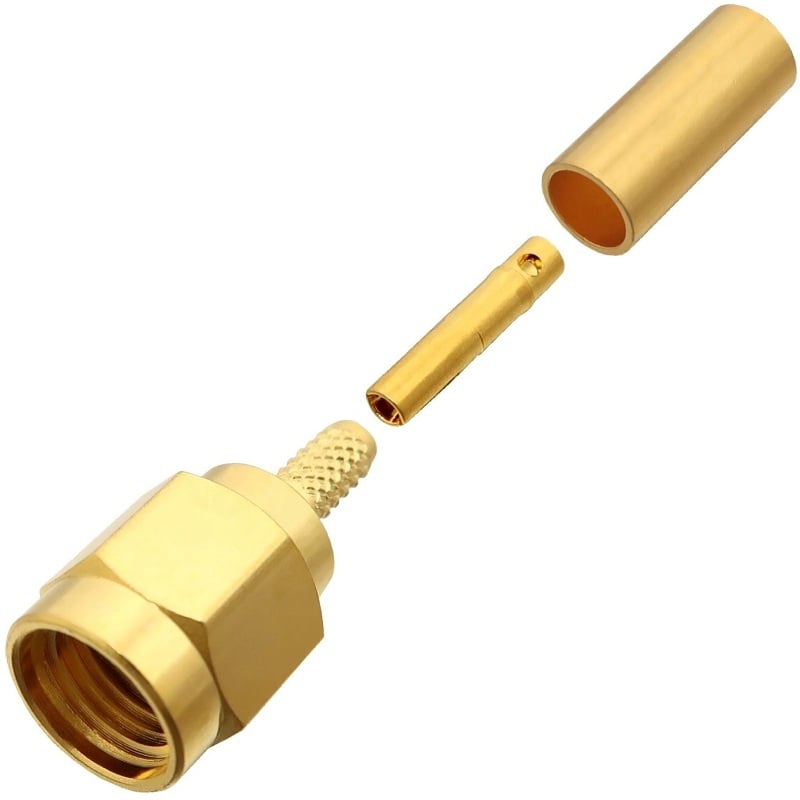

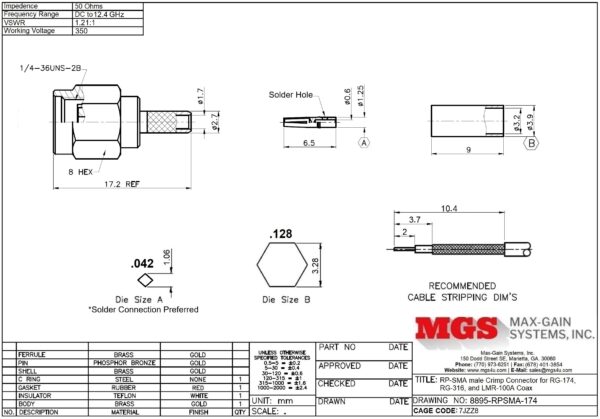

This connector is made from a Solid Brass body that is precision machined and plated with Gold for superior performance and value. This RP-SMA Male Crimp Connector has a PTFE dielectric and a gold plated brass center pin. The RP-SMA Male interface provides the same threads as an SMA male and pins that are normally found in SMA female connections; RP-SMA connections are popular in Wi-Fi, WiMAX, and other computer applications.
Compatible with Coaxial Cable Types: RG-174, RG-188, RG-188A/U, RG-316, RG-316/U Double Shield, LMR-100A, Belden 7805R, Belden 8216, Belden 83269, Belden 83284, Belden 84316, and other 0.100 Inch OD Coaxial cable.
See our entire line RF Connectors and Adapters:
About Max-Gain Systems, Inc.
Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage.
Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to: marine / boating, aeronautical, agriculture, construction, emergency services, etc…. We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc…
