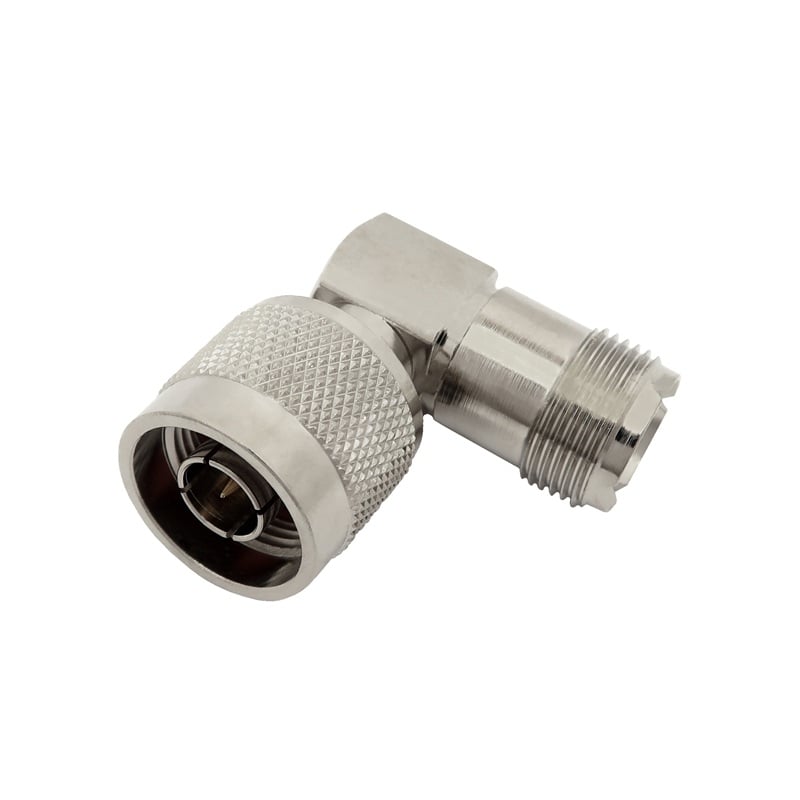

UHF female to Type N male right angle adapter
Nickel Plated Brass Body
Gold Plated Brass Center Pin
Detailed Product Information
This UHF female to Type N male right angle adapter is one of several thousand RF products available from Max-Gain Systems, Inc. This right angle adapter is a between series coaxial adapter.

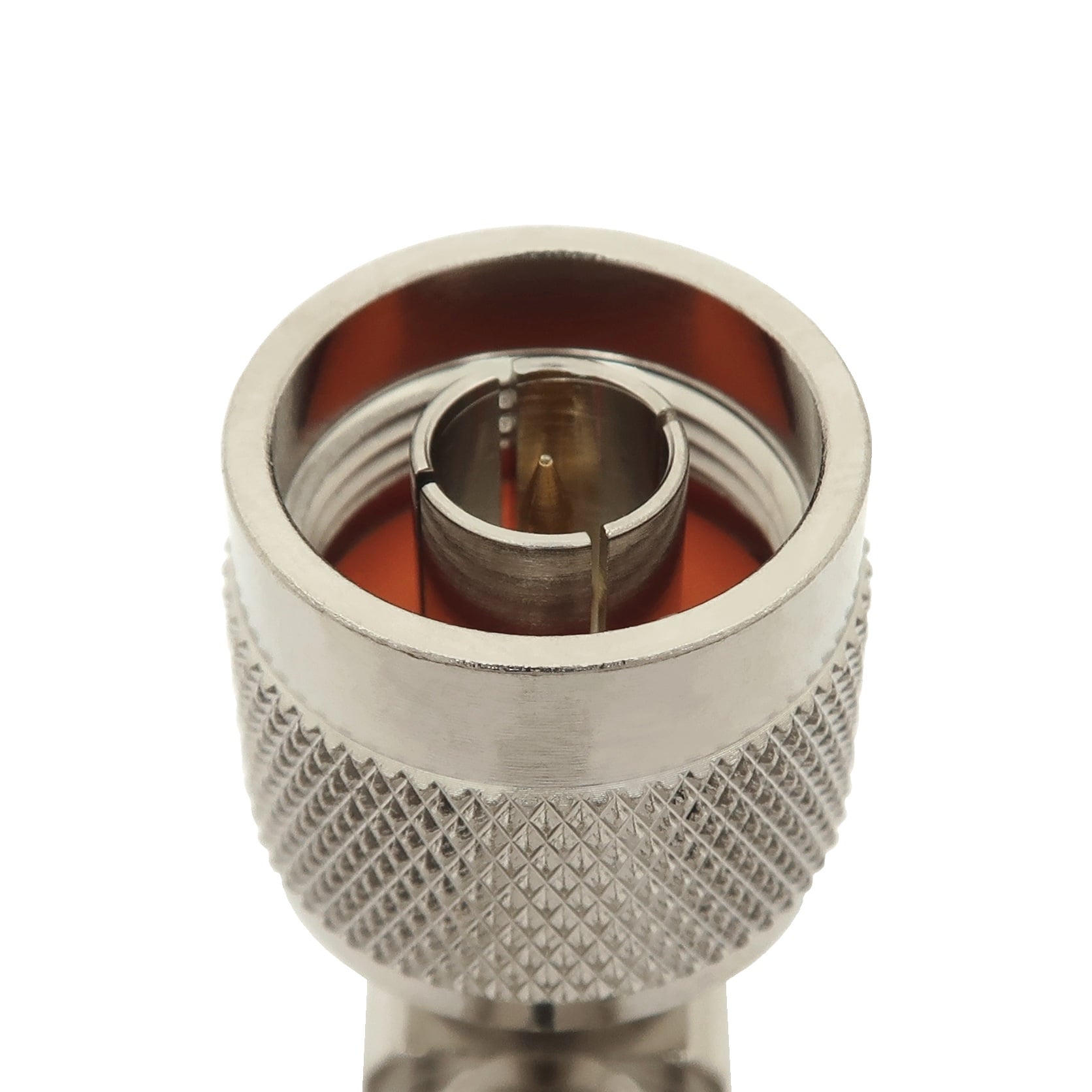

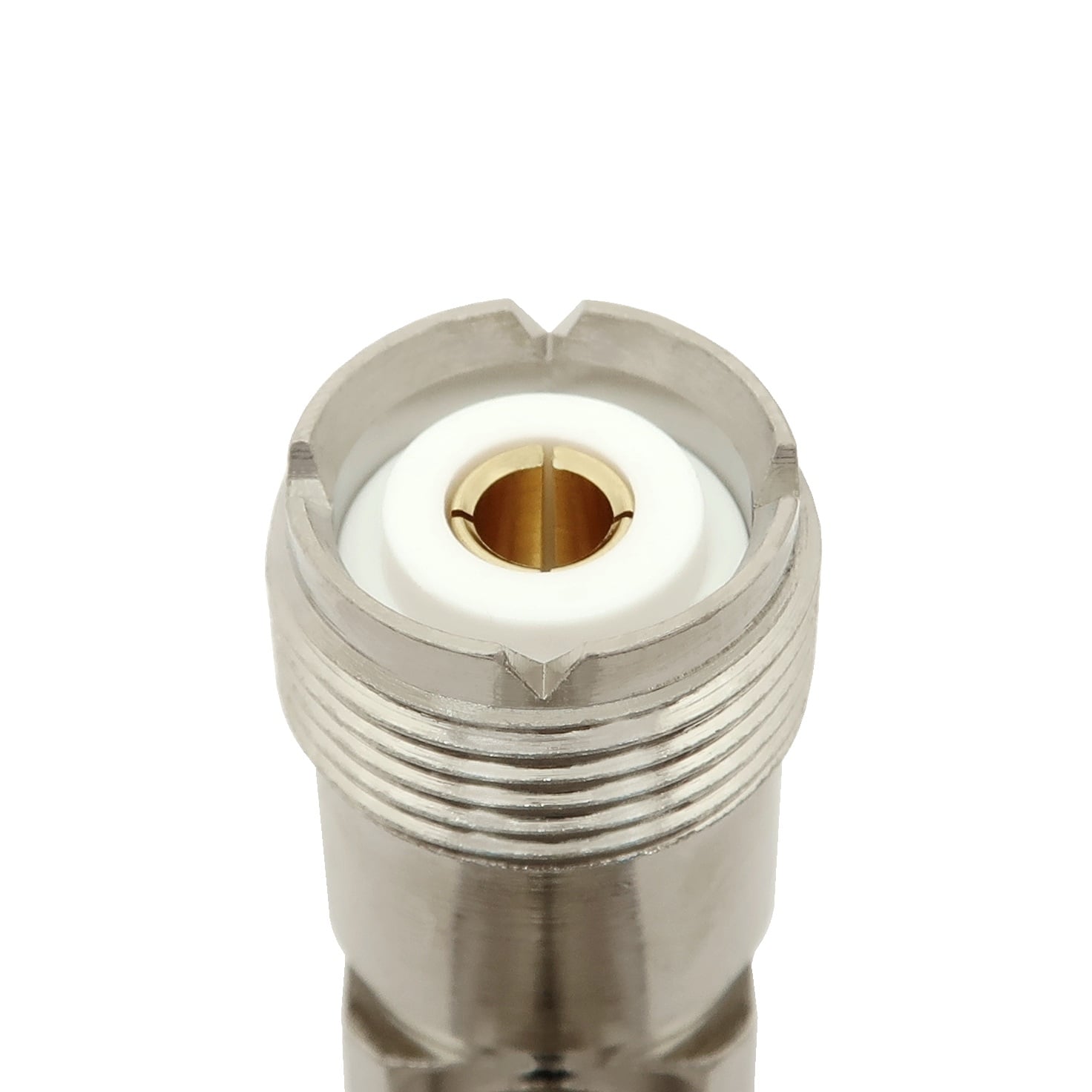

This right angle adapter is made from a Solid Brass body that is precision machined and plated with Nickel for superior performance and value. This UHF female to Type N male right angle adapter has a Delrin dielectric and a gold plated brass center pin. The UHF female side of the adapter has 16 individually machined “V’s”. This is to ensure a perfect seat of any UHF male (PL-259), to this adapter, every time. The Type N male side contains a gasket, for shock- / vibration- resistant and waterproof connections.
See our entire line RF Connectors and Adapters:
