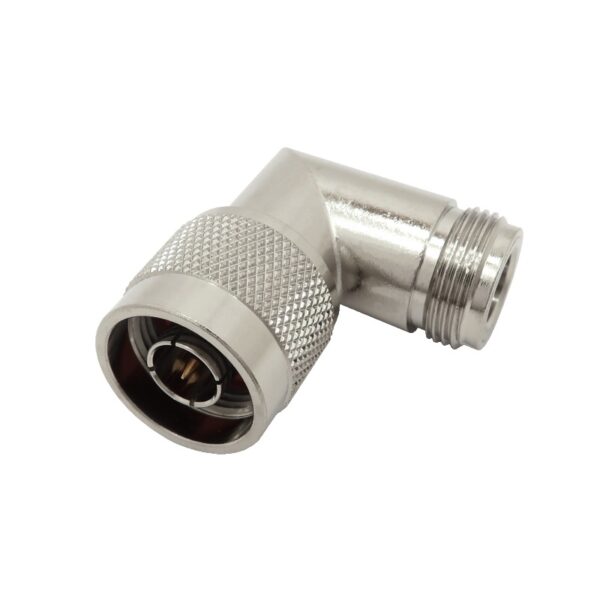

Type N female to Type N male right angle adapter
Nickel Plated Brass Body
Gold Plated Brass Center Pin
Detailed Product Information
This Type N female to Type N male right angle adapter is one of several thousand RF products available from Max-Gain Systems, Inc. This right angle adapter is an in-series coaxial adapter.

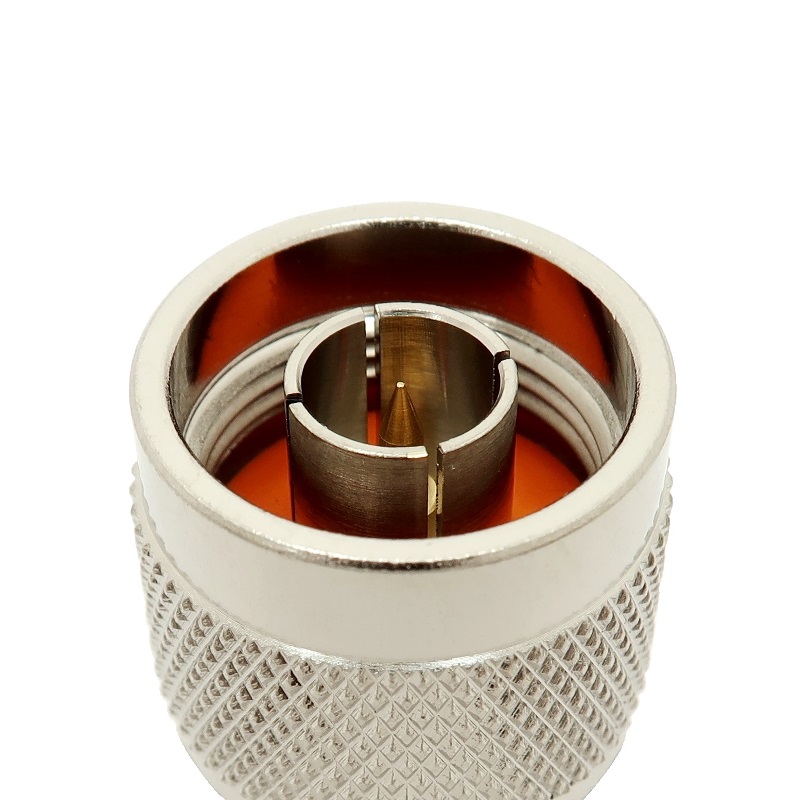

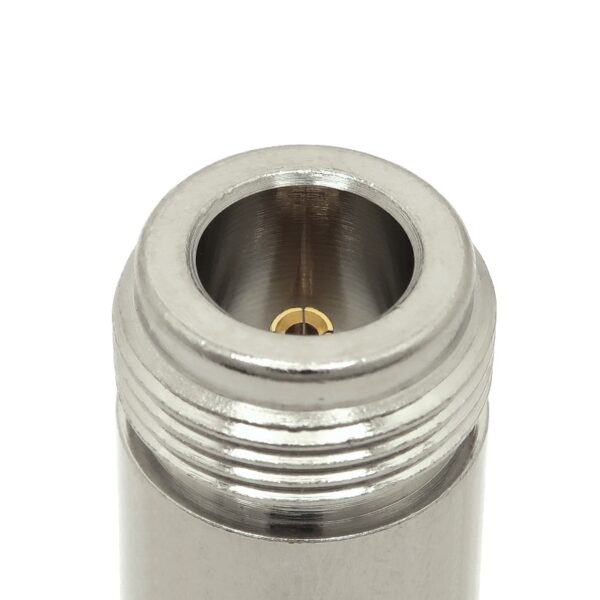

This right angle adapter is made from a Solid Brass body that is precision machined and plated with Nickel for superior performance and value. This Type N female to Type N male right angle adapter has a Delrin dielectric and a gold plated brass center pin. The Type N female side accepts a Type N male which contains a gasket, for shock- / vibration- resistant and waterproof connections. The Type N male side contains a gasket, for shock- / vibration- resistant and waterproof connections.
See our entire line RF Connectors and Adapters:
About Max-Gain Systems, Inc.
Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage.
Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to: marine / boating, aeronautical, agriculture, construction, emergency services, etc…. We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc…
