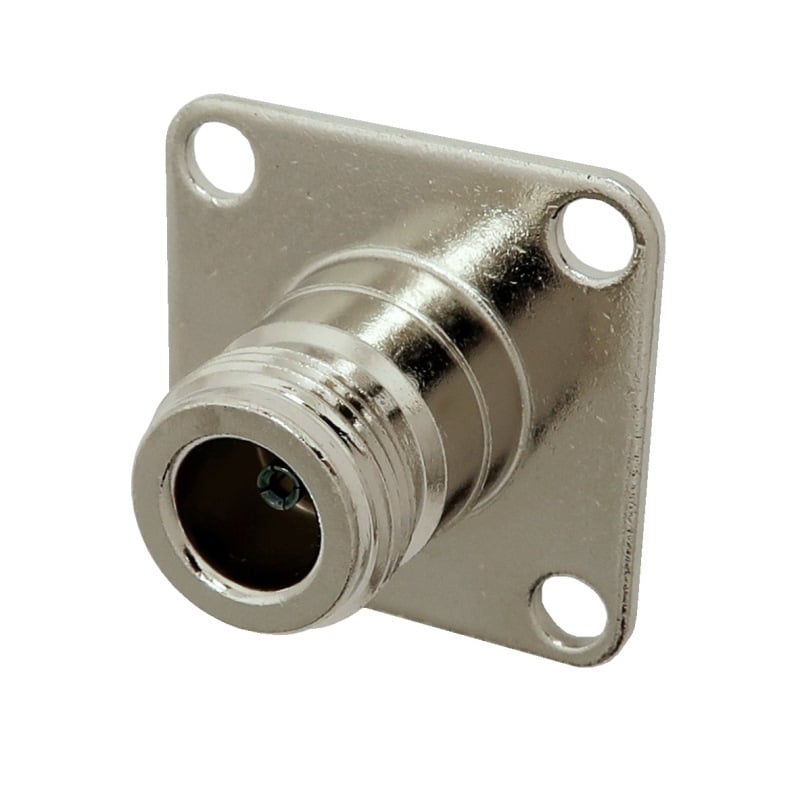

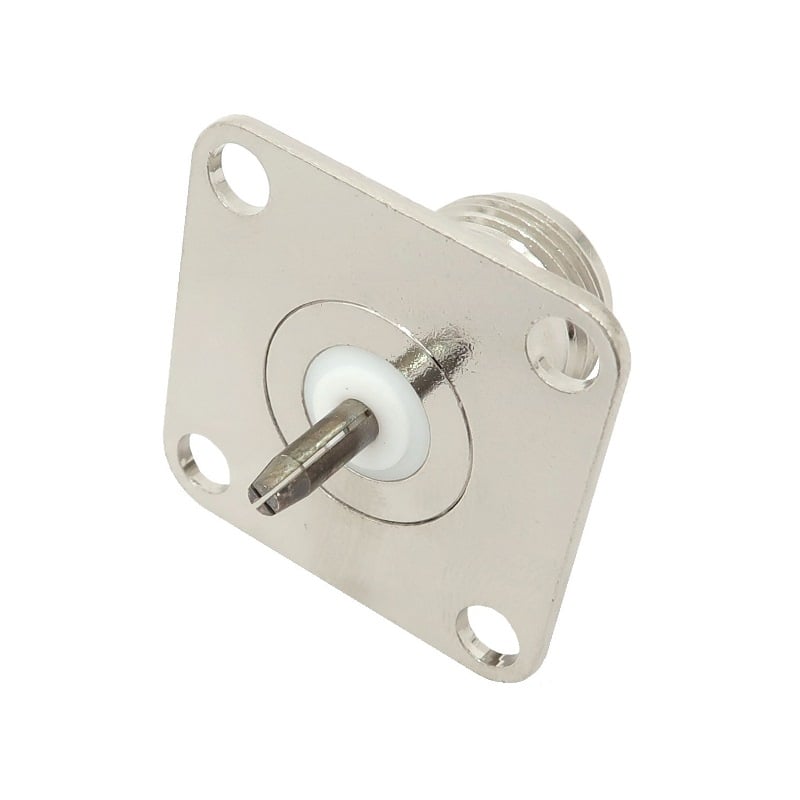

Type N female to QC for Bird Adapter (New)
Nickel Plated Brass Body
Silver Plated Beryllium Copper Center Pin
Detailed Product Information
This Type N female to QC for Bird adapter is one of several thousand RF products available from Max-Gain Systems, Inc. This adapter is a between series coaxial adapter.
This adapter is made from a Solid Brass body that is precision machined and plated with Nickel for superior performance and value. This Type N female to QC for Bird adapter has a PTFE dielectric and a silver plated beryllium copper center pin. The Type N female side accepts a Type N male which contains a gasket, for shock- / vibration- resistant and waterproof connections. Our Line Section adapters allow you to interface with BNC, Type C, HN, LC, mini-UHF, Type N or SMA connectors. The QC for the Bird connection type uses four screws to secure them to the line section in order to maintain a tight connection.
See our entire line RF Connectors and Adapters:
