SMA Male Crimp Connector for RG-174, RG-316, LMR-100A, and other 0.100 Inch OD Coax


Quantity Discounts Available:
(1-9 QTY) Price: $2.95 each
(10-24 QTY) Price: $2.66 each Save 10%
(25-99 QTY) Price: $2.36 each Save 20%
(100-299 QTY) Price: $2.07 each Save 30%
(300+ QTY) CALL

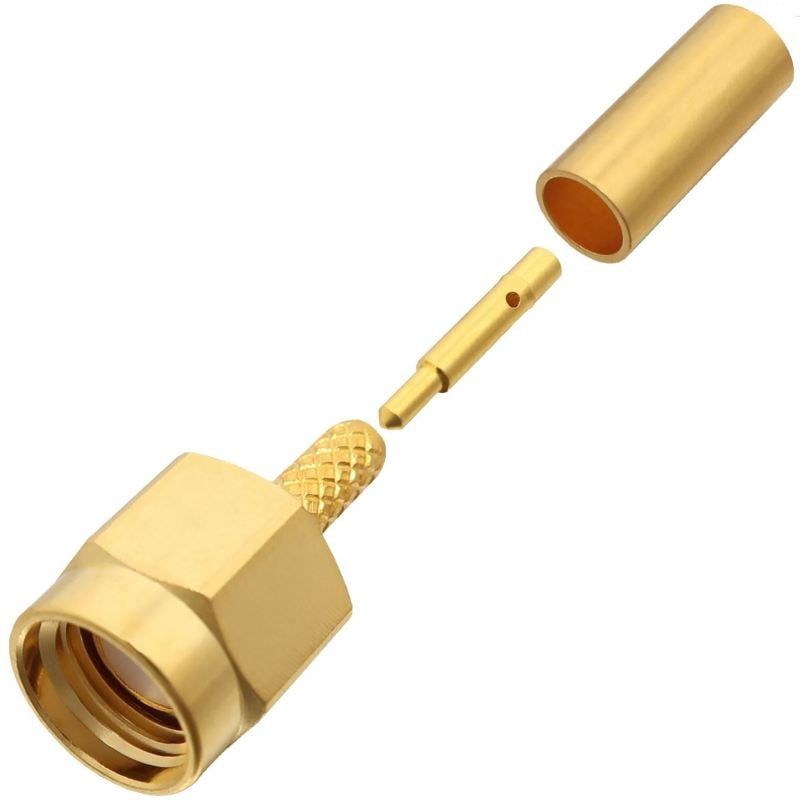

SMA Male Crimp Connector for RG-174, RG-316, LMR-100A, and other 0.100 Inch OD Coax

Gold Plated Brass Body
Gold Plated Brass Center Pin
PTFE Dielectric

This SMA Male Crimp Connector is one of several thousand RF products available from Max-Gain Systems, Inc.

This connector is made from a Solid Brass body that is precision machined and plated with Gold for superior performance and value. This SMA Male Crimp Connector has a PTFE dielectric and a gold plated brass center pin. The SMA Male interface’s plug and interior threads provide a sub-miniature and tight-locking connection for use at higher frequencies.


Compatible with Coaxial Cable Types: RG-174, RG-179, RG-188A/U, RG-316, LMR-100A, Belden 8216, and Belden 83269 coaxial cable.

About Max-Gain Systems, Inc.

Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage.

Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to: marine / boating, aeronautical, agriculture, construction, emergency services, etc…. We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc…

Additional information

Shipping Weight 0.11 oz
Shipping Dimensions 0.82 × 0.28 × 0.28 in
Connection Type


Termination Type


Coax Type

Belden 8216, Belden 83269, LMR-100, LMR-100A, RG-174, RG-179, RG-188A/U, RG-316



Mount Method


Attachment Method


Connector Attribute

Standard Polarity

Body Style



50 OHM

Body Material


Dielectric Insulator Material


Pin Material


Material Designation
