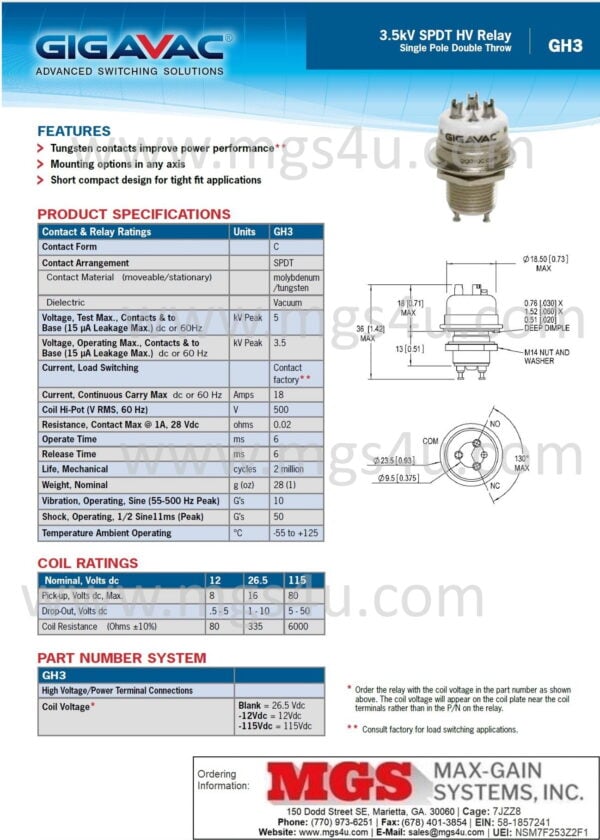

Gigavac GH-3 Vacuum Relay (non-RF) SPDT
|Test Voltage||5 kV|
|Peak Voltage||3.5 kV|
|Current Carry Amps (RMS)||18 amps @ 60 Hz|
|Contact Close Speed||6 MS (Milliseconds)|
|Contact Release Speed||6 MS (Milliseconds)|
|Rated Life Operations||2,000,000|
|Max Length||1.42 in / 35.00 mm|
|Max Diameter||0.92 in / 24.00 mm|
|Mounting Hole Diameter||0.55 in / 14.05 mm|
|Weight||1.00 oz / 28.00 g|
|Mounting||Threaded base with mounting nut included.|
|Condition||Brand New, unused. Guaranteed good.|
|(Other manufacturers make other variations of this relay and are sometimes available, inquire)|
Jennings Brand Equivalent RJ1H
Greenstone Brand Equivalent VHC-3
Full RF Rated version Gigavac GH-1
Running LESS Power or need a high speed switching relay?
Running MORE Power? Checkout the Greenstone VC-2, RF Rated Version
All Single Pole Double Throw Vacuum Relays (SPDT)
All Vacuum Relays (SPST, SPDT, DPDT)
