15 kV, 17 kV Peak, SPDT, 50 Amps, VC-2 Vacuum Relay

$159.95

Ceramic vacuum relay, SPDT contacts, no load switching

Clear

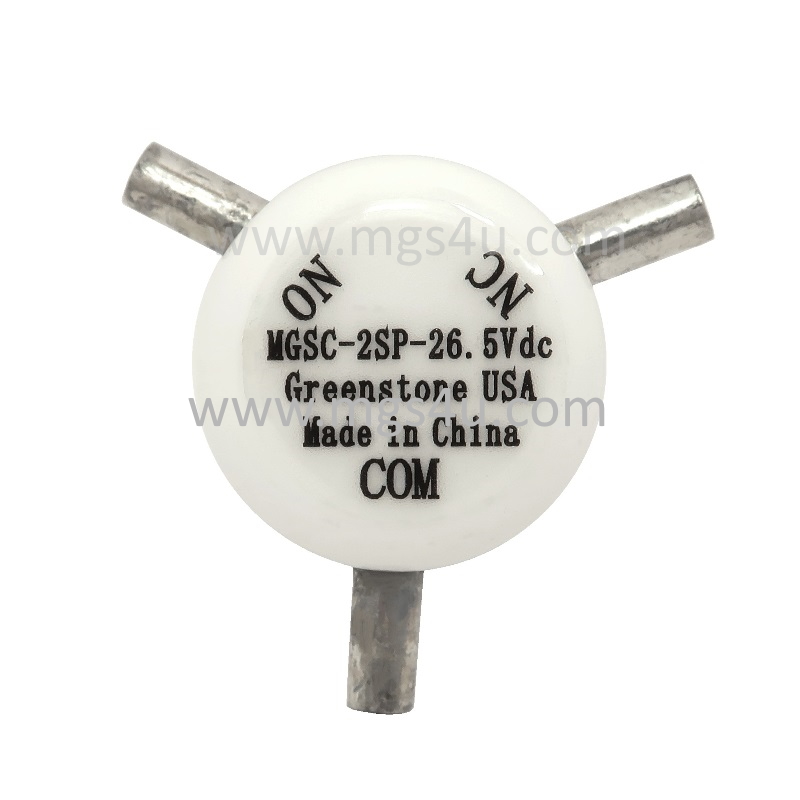

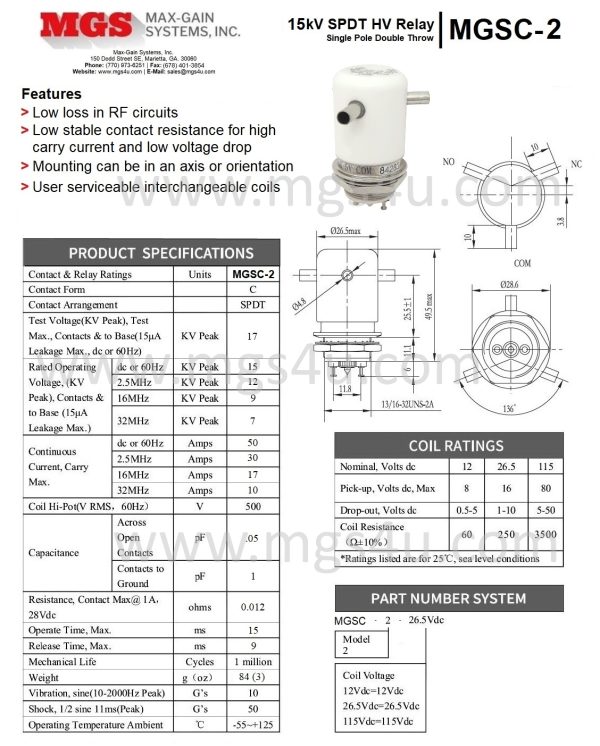

VC-2 SPDT Vacuum Relay, No Load Switching

Peak Test Voltage 17 kV
Peak Operating Voltage 15 kV
Current Carry Amps (RMS) 50 amps @ 60 Hz
Contact Close Speed 15 MS (Milliseconds)
Contact Release Speed 9 MS (Milliseconds)
Rated Life Operations 1,000,000
Important Dimensions
Max Length 2.14 in / 54.50 mm
Max Diameter 1.38 in / 35.00 mm
Weight 3.00 oz / 84.00 g
Mounting Threaded base with mounting nut and washer supplied; Bottom thread outer diameter is .802 inches.
Condition Brand New, unused. Guaranteed good.
(Other manufacturers make other variations of this relay and are sometimes available, inquire)
Jennings RJ-2 Kilovac KC-2 Gigavac G2
About Max-Gain Systems, Inc.

Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage.

Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to:  marine / boating, aeronautical, agriculture, construction, emergency services, etc….  We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc…

Did you know?

We will buy your used and overstock vacuum capacitors and vacuum relays?

Max-Gain Systems, Inc. is the one source to liquidate your excess inventory of vacuum capacitors and vacuum relays. REDUCE warehousing costs, REDUCE aging inventory & OPTIMIZE warehouse space by selling us your unwanted inventory. New and old stock, used and even removed from working equipment, one unit to one thousand plus, you can make money as well as go green. In addition, most of the surplus items we buy are able to go right back into facilities and into the hands of individuals that need a low cost replacement to keep their plants and broadcast stations up and running.

Sell your New and Used Overstock vacuum capacitors and vacuum relays by emailing us. Please include how many, the manufacturer’s part number, and their condition, along with your full contact information. We will reply within one business day.

Additional information

Shipping Weight 16 oz
Shipping Dimensions 2.14 × 1.38 × 1.38 in
Manufacturer

Unbranded

Contact Set Configuration

Coil Voltage

12 VDC, 26.5 VDC

Voltage

15 KV

Peak Voltage

17 kV

Current Rating

50 Amps

itemCondition
