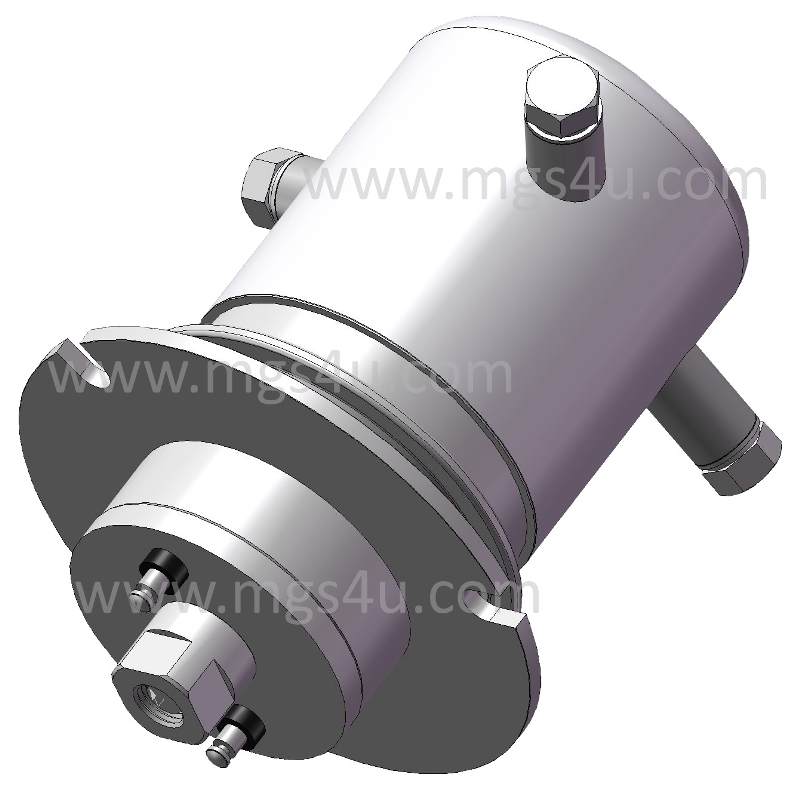

Greenstone V9WF Vacuum Relay, SPDT
|Peak Test Voltage||20 kV|
|Peak Operating Voltage||15 kV|
|Current Carry Amps (RMS)||75 amps @ 60 Hz|
|Contact Close Speed||30 MS (Milliseconds)|
|Contact Release Speed||8 MS (Milliseconds)|
|Rated Life Operations||1,000,000|
|Max Length||3.05 in / 77.50 mm|
|Max Diameter||2.36 in / 60.00 mm|
|Mounting Hole Diameter||1.30 in / 33.00 mm|
|Weight||35.00 oz / 1000.00 g|
|Mounting||Permanently attached flange type with 3 mounting slots.|
|Condition||Brand New, unused. Guaranteed good.|
Need an extra contact set? Checkout the Greenstone V23WF
Running LESS Power? Checkout the Greenstone VC-2
Running MORE Power? Checkout the Greenstone V52WF
All Single Pole Double Throw Vacuum Relays (SPDT)
All Vacuum Relays (SPST, SPDT, DPDT)
