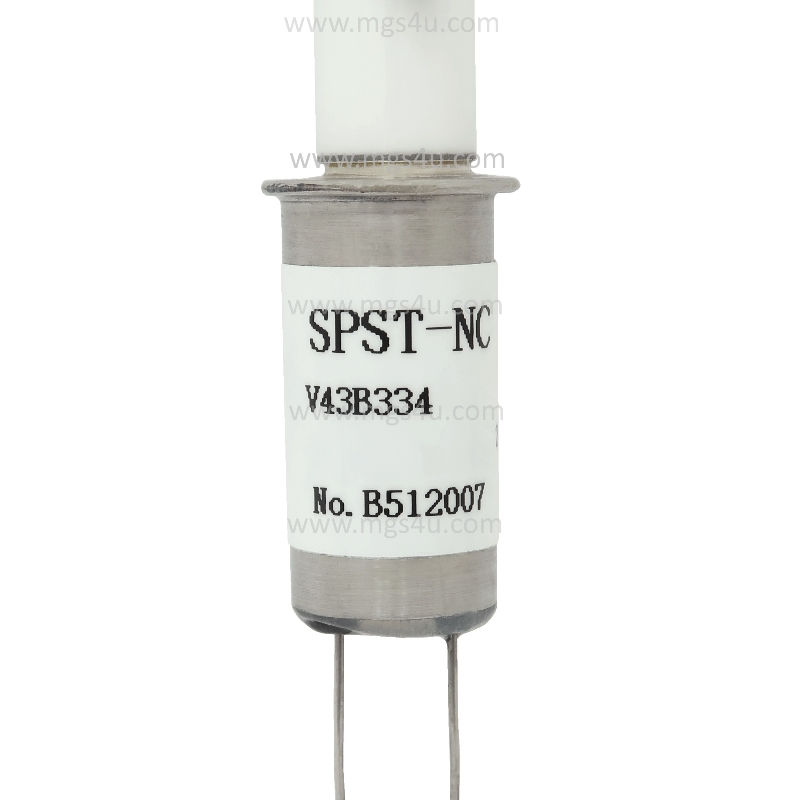

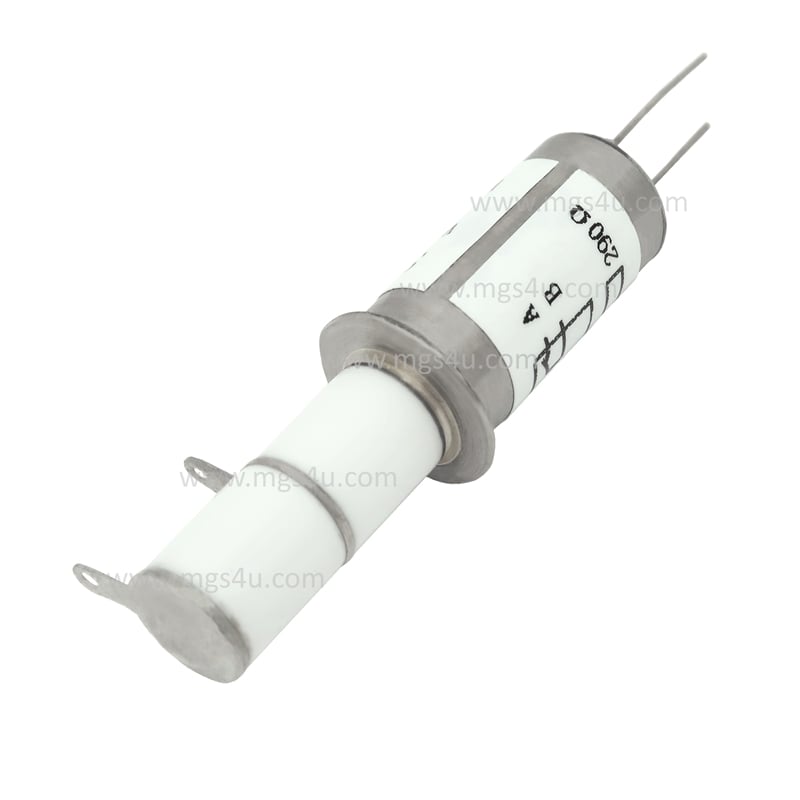

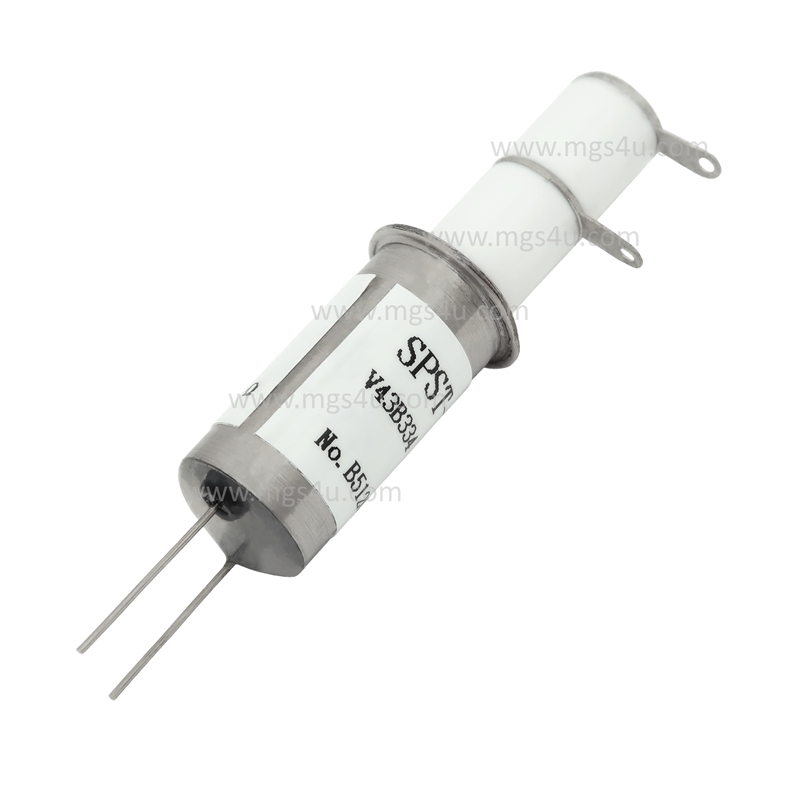

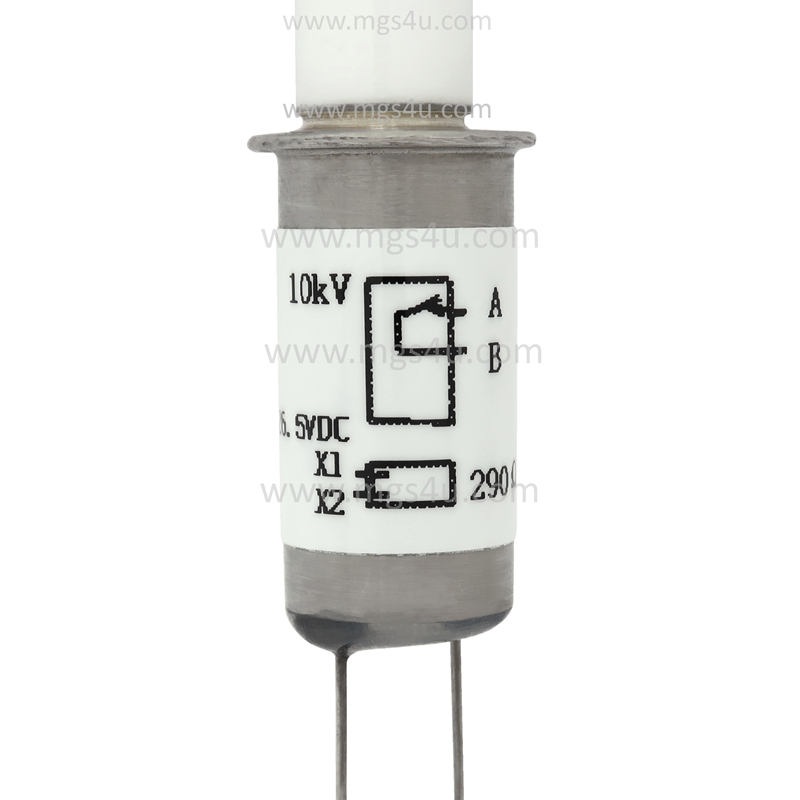

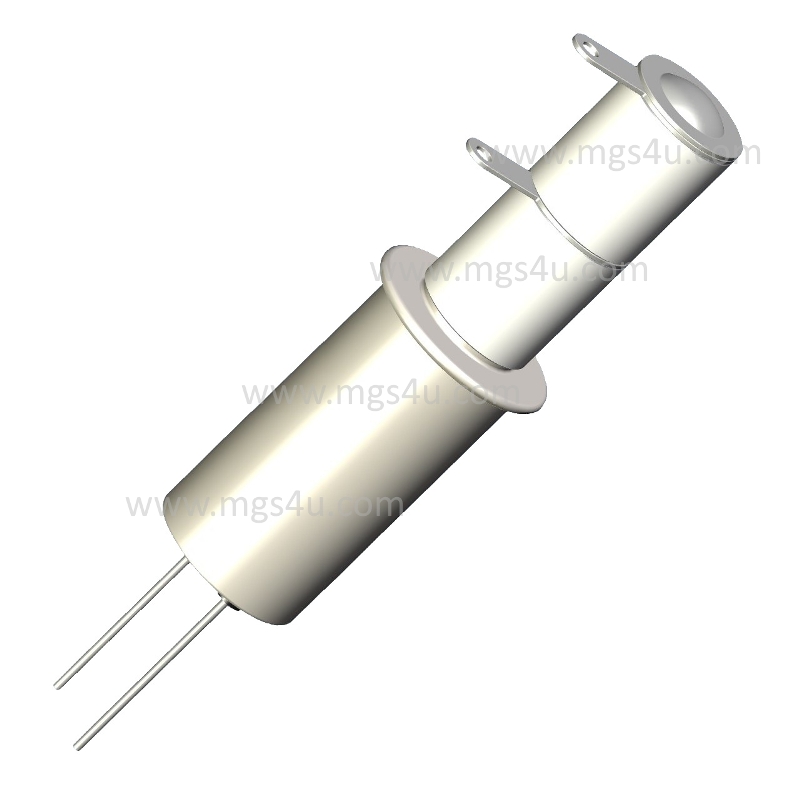

Greenstone V43B334 SPST-NC Vacuum Relay
| Military Specs | MIL-R-83725, M83725/10-003, 83725-96-0191, MIL-DTL-83725/10, MK41A334-003 |
| Peak Test Voltage | 11 kV |
| Peak Operating Voltage | 10 kV |
| Current Carry Amps (RMS) | 25 amps @ 60 Hz |
| Contact Close Speed | 10 MS (Milliseconds) |
| Contact Release Speed | 10 MS (Milliseconds) |
| Rated Life Operations | 2,000,000 |

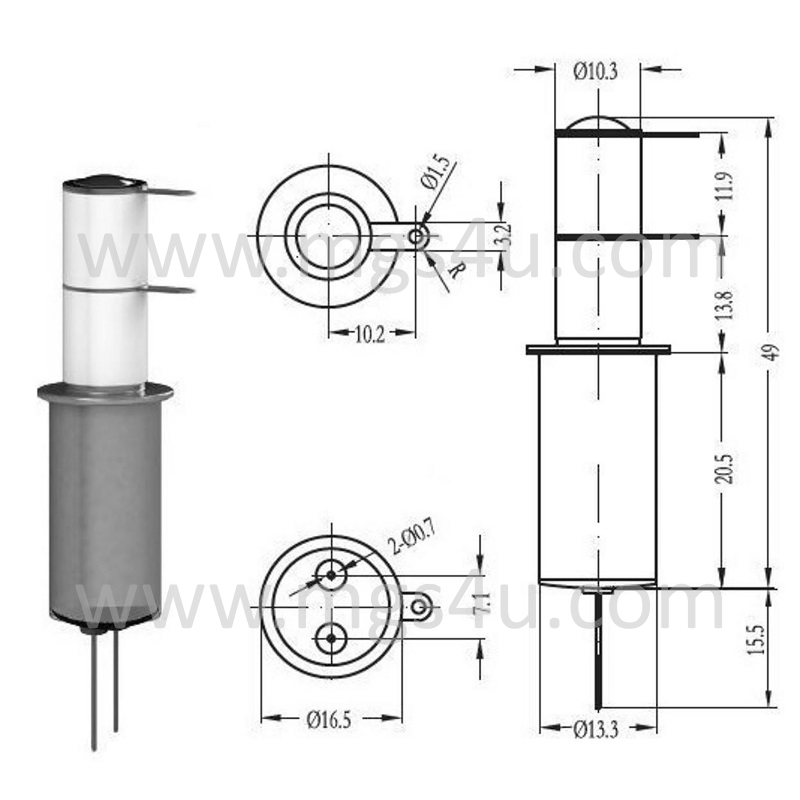

| Important Dimensions | |
| Max Length | 1.93 in / 49 mm |
| Max Diameter | 0.65 in / 16.50 mm |
| Mounting Hole Diameter | 0.55 in / 14 mm |
| Weight | 0.6 oz / 16 g |
| Mounting | With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. |
| Condition | Brand New, unused. Guaranteed good. |

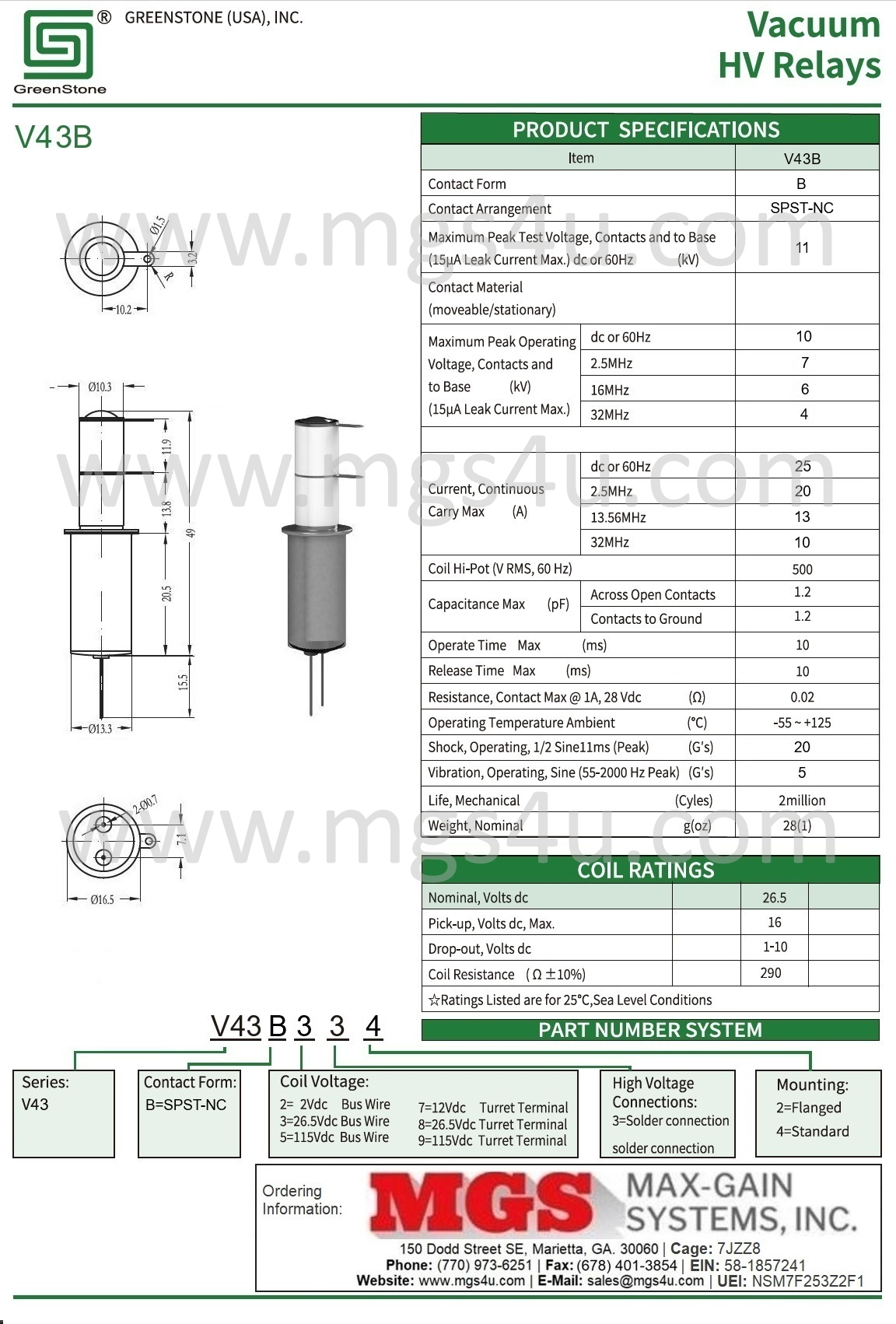

Data Sheets and Downloads:
| (Other variations of this relay are sometimes available, inquire) | |||
| Greenstone | Gigavac | GL-Vac | Kilovac |
| V43B232 | G43B232 | GL43B232 | K43B232 |
| V43B234 | G43B234 | GL43B234 | K43B234 |
| V43B332 | G43B332 | GL43B332 | K43B332 |
| V43B334 | G43B334 | GL43B334 | K43B334 |
| V43B532 | G43B532 | GL43B532 | K43B532 |
| V43B534 | G43B534 | GL43B534 | K43B534 |
| V43B732 | G43B732 | GL43B732 | K43B732 |
| V43B734 | G43B734 | GL43B734 | K43B734 |
| V43B832 | G43B832 | GL43B832 | K43B832 |
| V43B834 | G43B834 | GL43B834 | K43B834 |
| V43B932 | G43B932 | GL43B932 | K43B932 |
| V43B934 | G43B934 | GL43B934 | K43B934 |
Need a SPDT version? Checkout the Greenstone V41C334
Running MORE Power? Checkout the Greenstone V32WP
All Single Pole Single Throw Vacuum Relays (SPST)
All Vacuum Relays (SPST, SPDT, DPDT)
