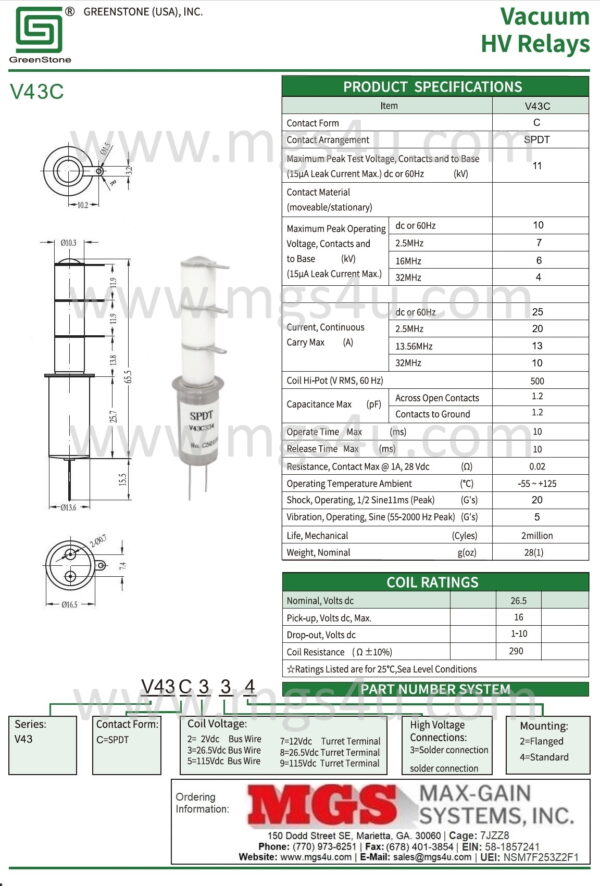

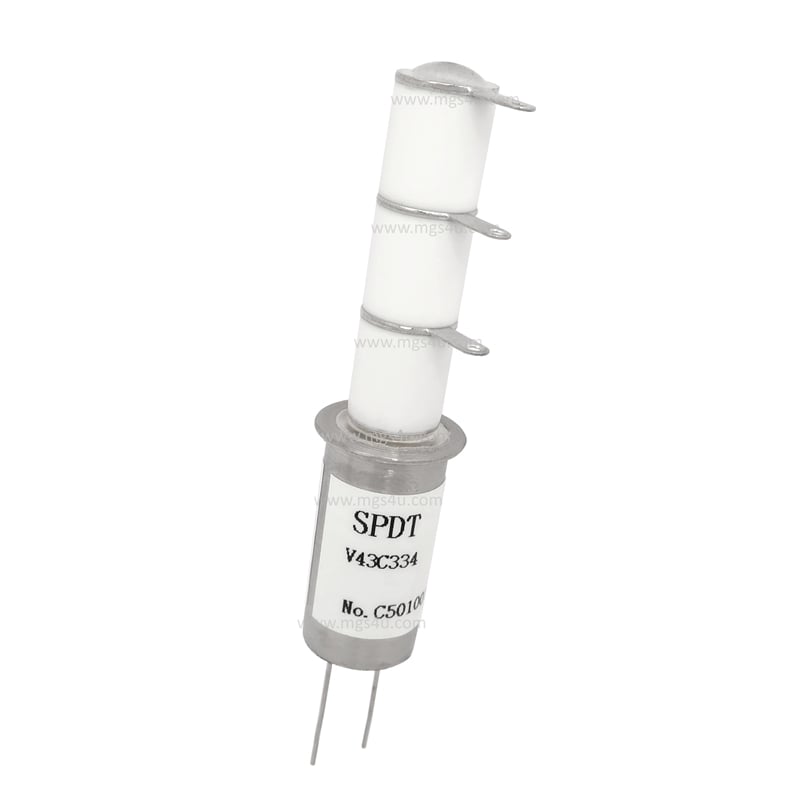

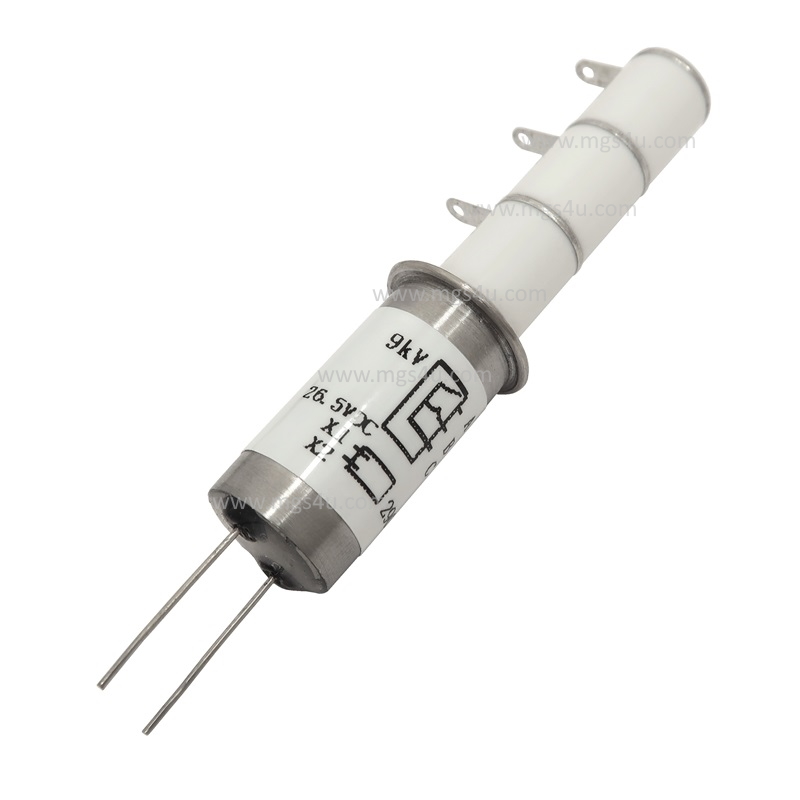

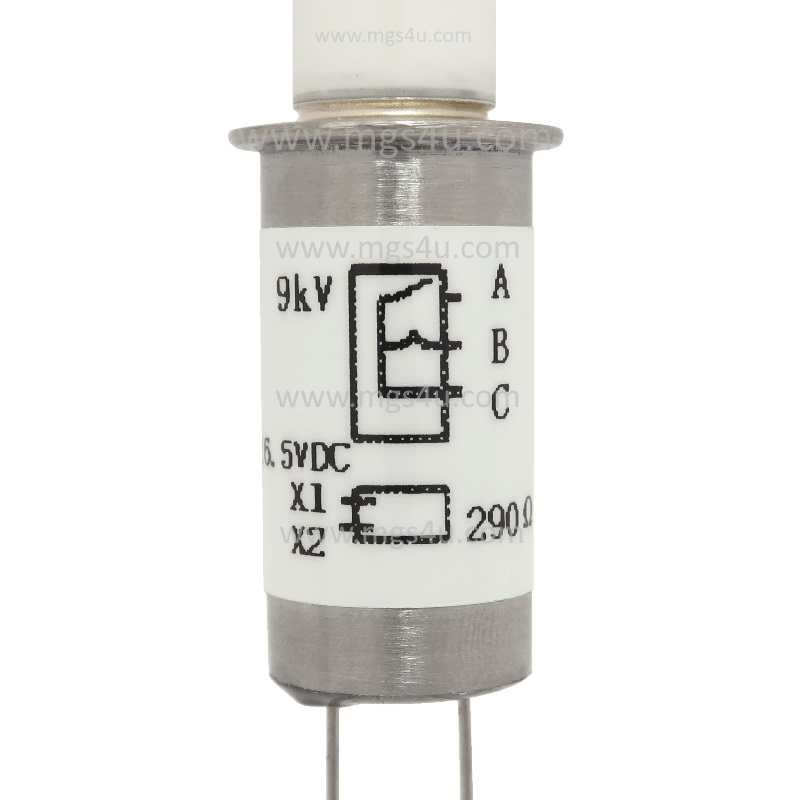

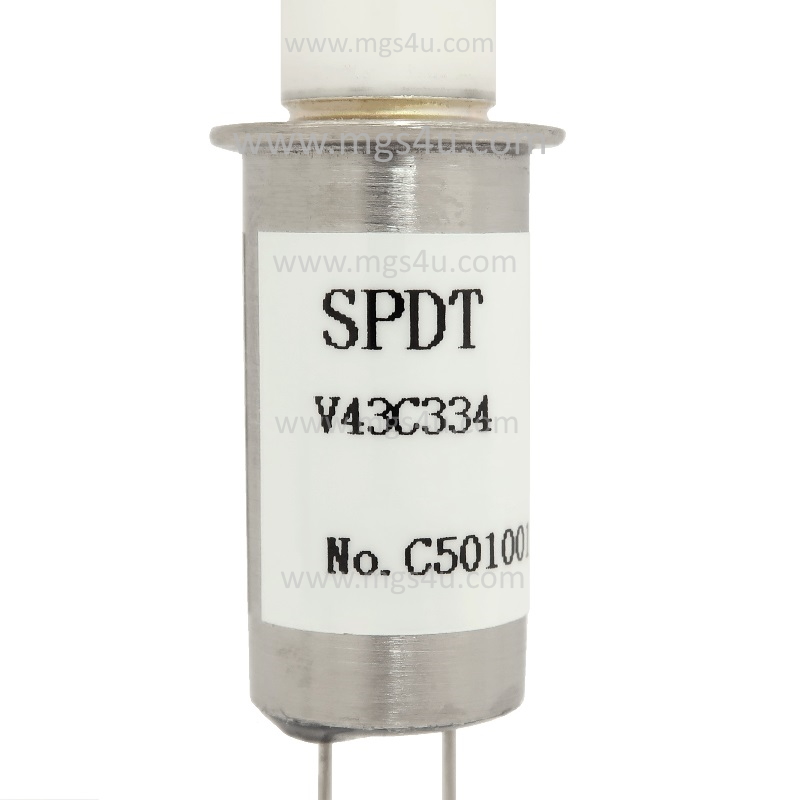

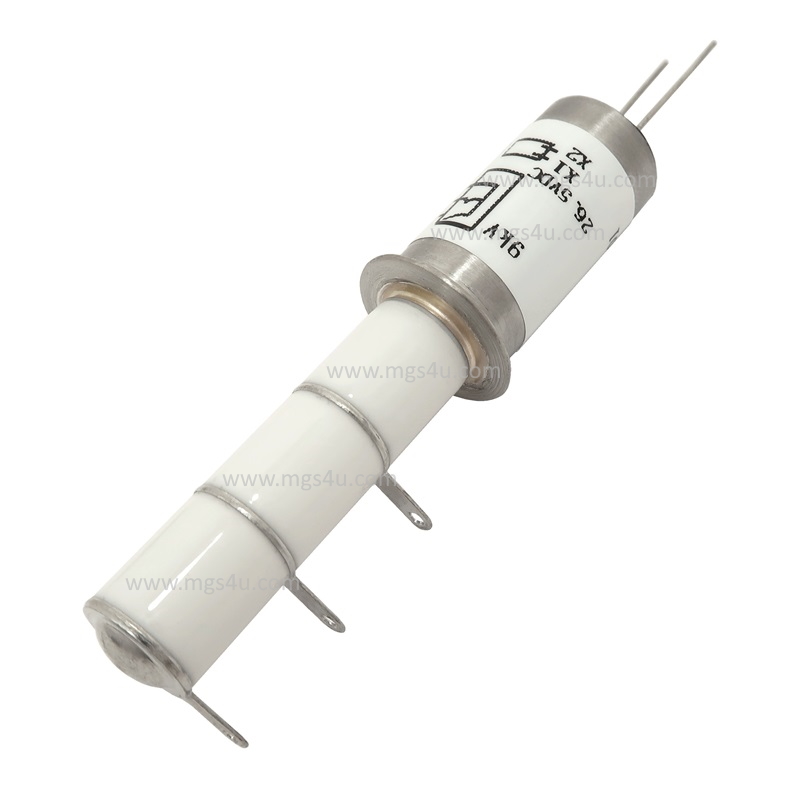

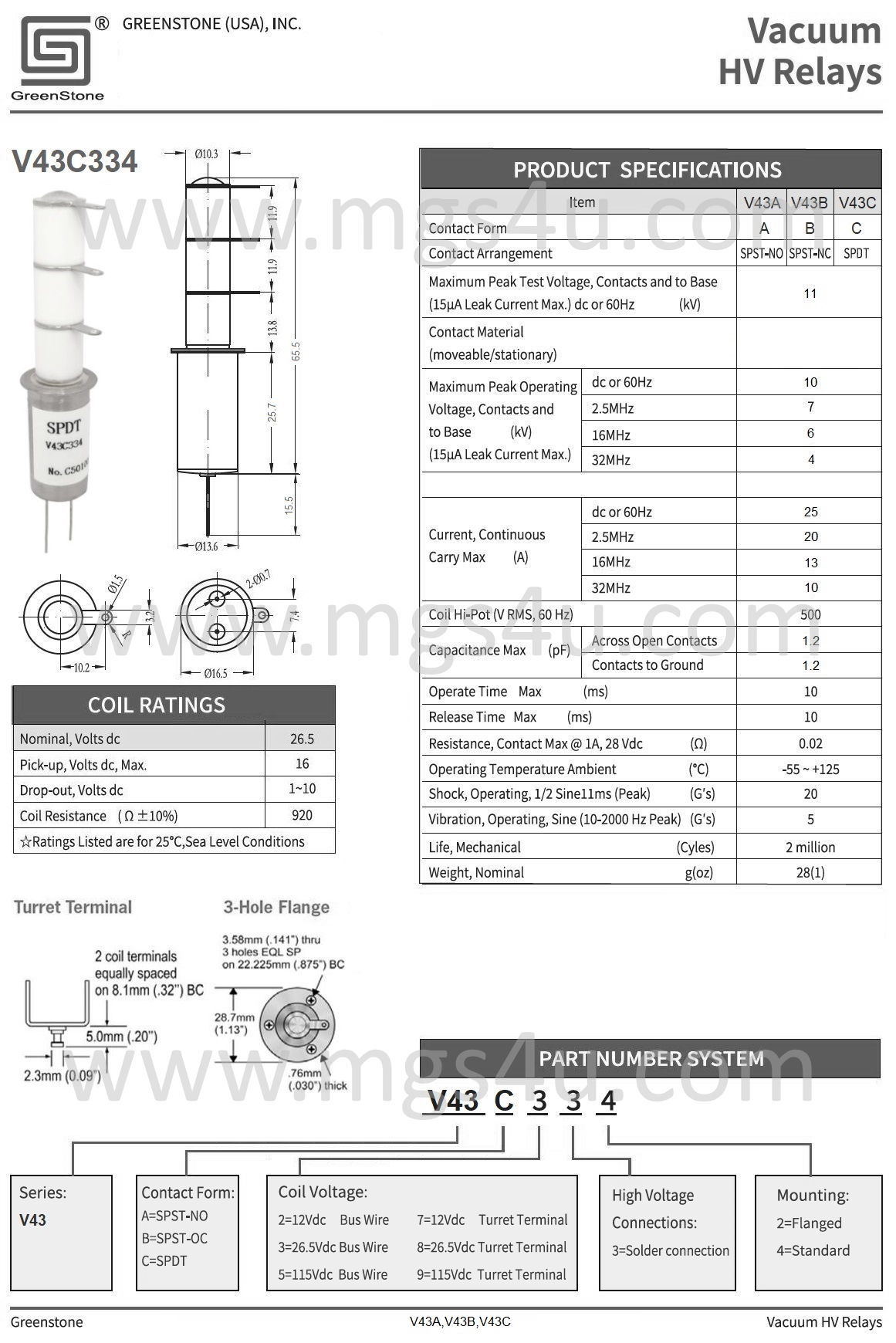

Greenstone V43C334 SPDT Vacuum Relay
| Military Specs | MIL-R-83725, M83725/16-006, MK43C334-006 |
| Peak Test Voltage | 11 kV |
| Peak Operating Voltage | 10 kV |
| Current Carry Amps (RMS) | 25 amps @ 60 Hz |
| Contact Close Speed | 10 MS (Milliseconds) |
| Contact Release Speed | 10 MS (Milliseconds) |
| Rated Life Operations | 2,000,000 |

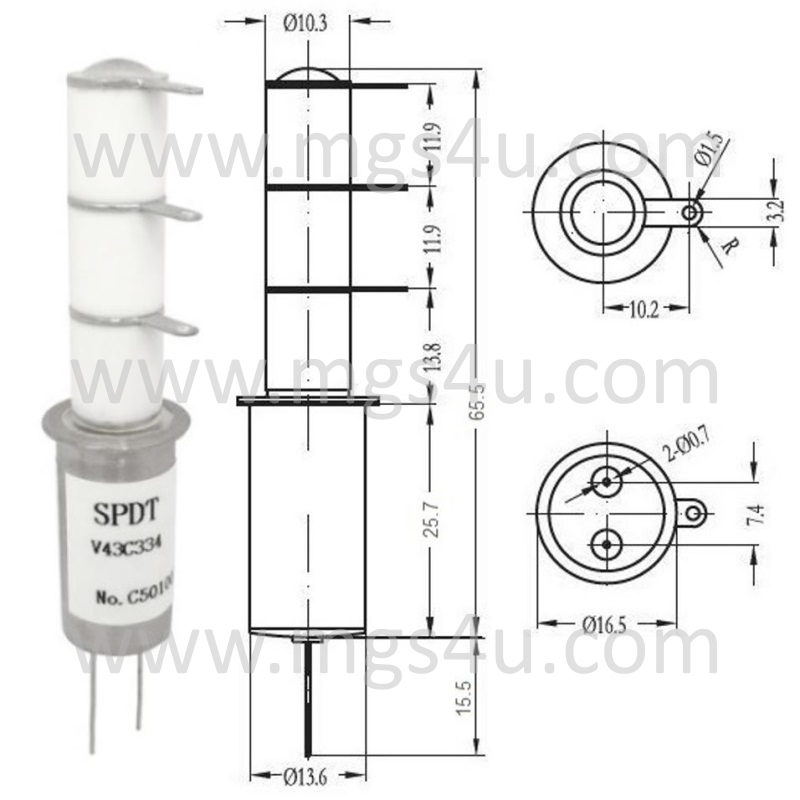

| Important Dimensions | |
| Max Length | 2.58 in / 65.5 mm |
| Max Diameter | 0.65 in / 16.50 mm |
| Mounting Hole Diameter | 0.55 in / 14 mm |
| Weight | 1 oz / 30.5 g |
| Mounting | With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. |
| Condition | Brand New, unused. Guaranteed good. |
| (Other variations of this relay are sometimes available, inquire) | |||
| Greenstone | Gigavac | GL-Vac | Kilovac |
| V43C232 | G43C232 | GL43C232 | K43C232 |
| V43C234 | G43C234 | GL43C234 | K43C234 |
| V43C332 | G43C332 | GL43C332 | K43C332 |
| V43C334 | G43C334 | GL43C334 | K43C334 |
| V43C532 | G43C532 | GL43C532 | K43C532 |
| V43C534 | G43C534 | GL43C534 | K43C534 |
| V43C732 | G43C732 | GL43C732 | K43C732 |
| V43C734 | G43C734 | GL43C734 | K43C734 |
| V43C832 | G43C832 | GL43C832 | K43C832 |
| V43C834 | G43C834 | GL43C834 | K43C834 |
| V43C932 | G43C932 | GL43C932 | K43C932 |
| V43C934 | G43C934 | GL43C934 | K43C934 |
Running LESS Power? Checkout the Greenstone V41C334
Running MORE Power? Checkout the Greenstone VC-2
All Single Pole Double Throw Vacuum Relays (SPDT)
All Vacuum Relays (SPST, SPDT, DPDT)
