UHF Female to QC for Bird Adapter

$12.95$907.00

Quantity Discounts Available:
(Single Piece) Price: $12.95 each
(10 Pack) Price: $116.60 per pack Save 10%
(25 Pack) Price: $259.00 per pack Save 20%
(50 Pack) Price: $518.00 per pack Save 20%
(100 Pack) Price: $907.00 per pack Save 30%

Pack Quantity: These are sold in “pack” quantities. Choose the pack size you would like. The per unit price is based on this pack size.

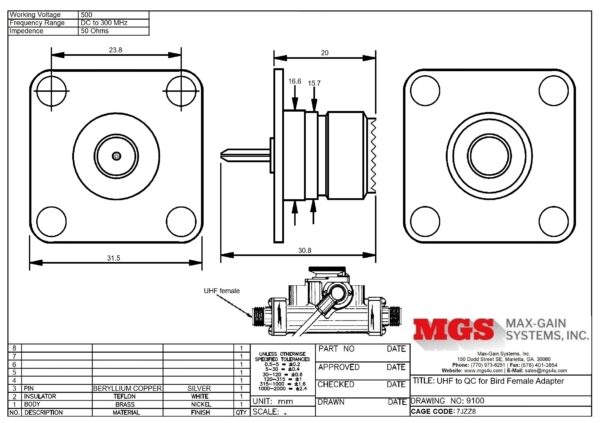

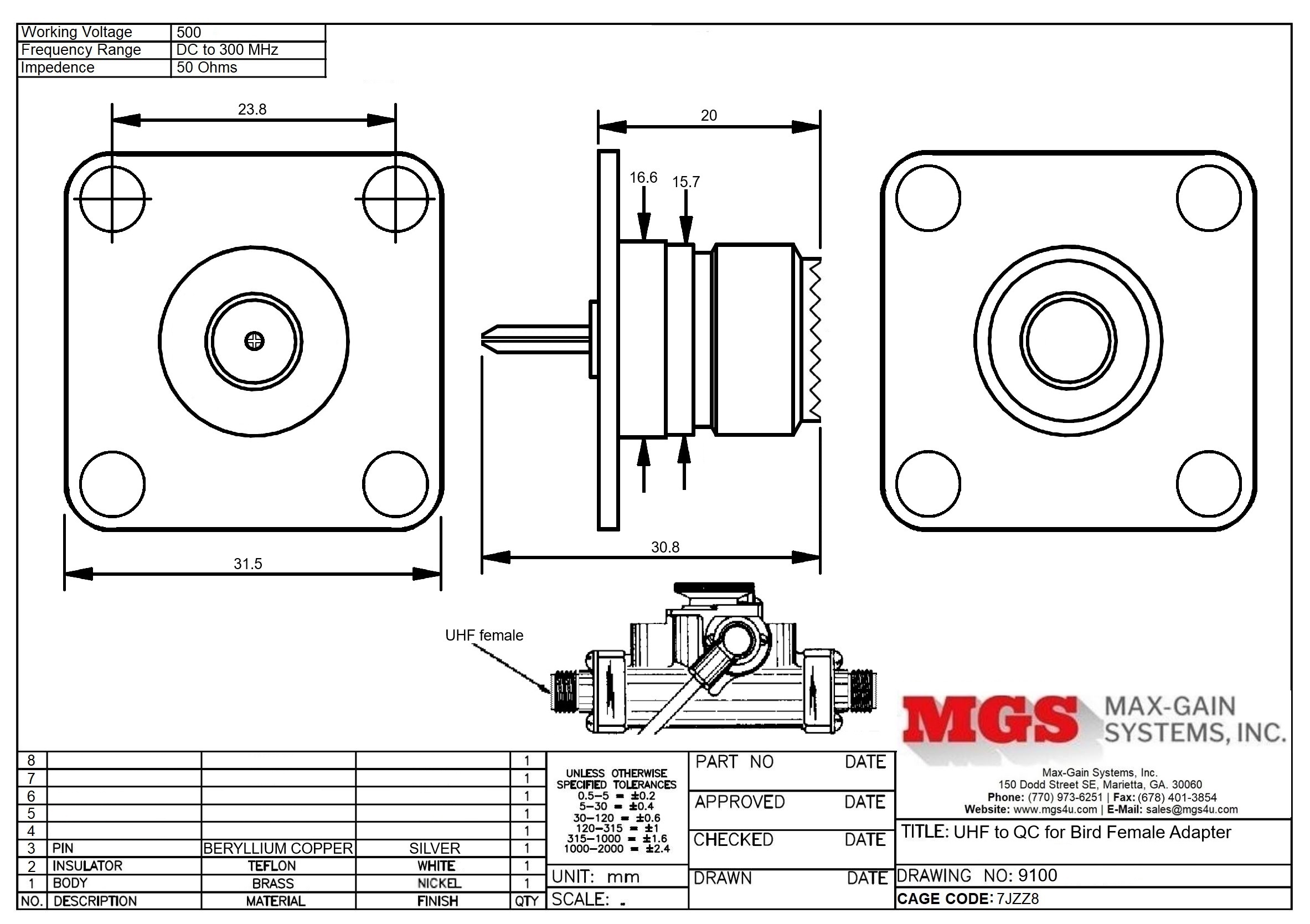

UHF Female to QC for Bird adapter

Nickel Plated Brass Body
Silver Plated Beryllium Copper Center Pin
PTFE Dielectric
“TGN”

Detailed Product Information
Description

This UHF Female to QC for Bird adapter is one of several thousand RF products available from Max-Gain Systems, Inc. This adapter is a between series coaxial adapter.

This adapter is made from a Solid Brass body that is precision machined and plated with Nickel for superior performance and value. This UHF Female to QC for Bird adapter has a PTFE dielectric and a silver plated beryllium copper center pin. The UHF female side (also known as a SO-239 connection) is by far the most popular connection type used in Amateur Radio. Our Line Section adapters allow you to interface with BNC, Type C, HN, LC, mini-UHF, Type N or SMA connectors. The QC for the Bird connection type uses four screws to secure them to the line section in order to maintain a tight connection.

9100

See our entire line RF Connectors and Adapters:

RF Connectors

RF Connectors 300x300 - Max-Gain Systems Inc

RF Adapters

RF Adapters 300x300 - Max-Gain Systems Inc

About Max-Gain Systems, Inc.

Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage.

Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to: marine / boating, aeronautical, agriculture, construction, emergency services, etc…. We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc…

Additional information

Shipping Weight N/A
Shipping Dimensions N/A
Pack Quantity

Single Piece, 10 Pack, 25 Pack, 50 Pack, 100 Pack

Connection Type

,

Connection Type 2

QC for Bird

Impedance

50 OHM

Body Material

Nickel

Dielectric Insulator Material

Delrin

Pin Material

Silver

Adapter Attribute

Material Designation

DSN

itemCondition
