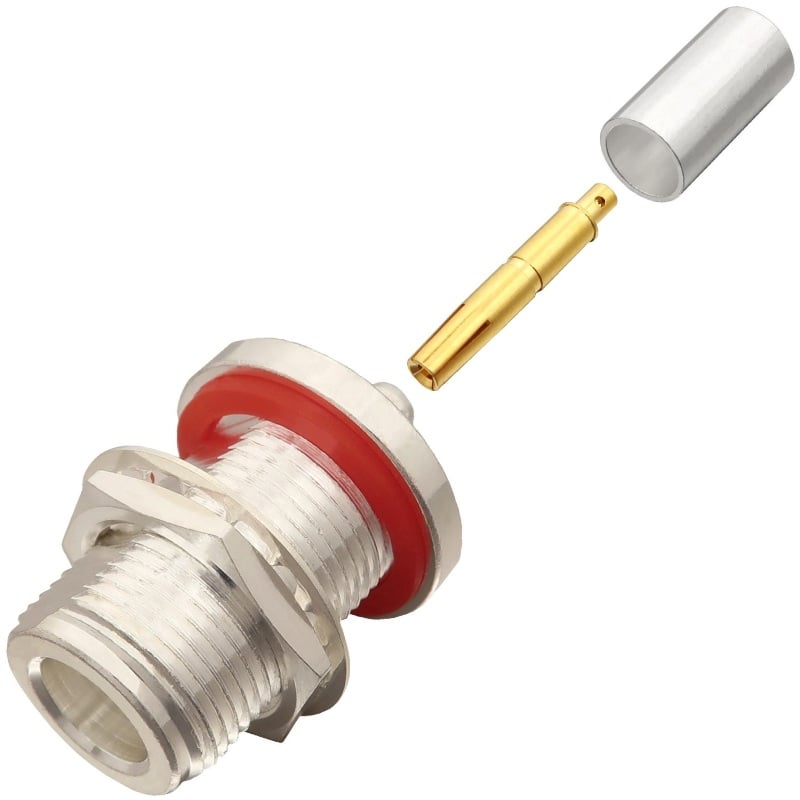

Type N female Bulkhead Crimp Connector for LMR-195, RG-58, and other 0.195 Inch OD Coax
Silver Plated Brass Body
Gold Plated Brass Center Pin
This Type N female Bulkhead Crimp Connector is one of several thousand RF products available from Max-Gain Systems, Inc.
This connector is made from a Solid Brass body that is precision machined and plated with Silver for superior performance and value. This Type N female Bulkhead Crimp Connector has a PTFE dielectric, silver plated brass grounding lug, silver plated star washer, and a gold plated brass center pin. The Type N female interface accepts a Type N male which contains a gasket, for shock- / vibration- resistant and waterproof connections.
Compatible with Coaxial Cable Types: RG-142, RG-400, RG-58, RG58A/U, LMR-195, LMR-200, Belden 7807, Belden 8219, Belden 8259, and Belden 9201 coaxial cable.
