DNCAP-08 7.5kv 800x800 - Max-Gain Systems, Inc

DNCAP-08 Mounting - Max-Gain Systems, Inc

DNCAP-08 Mounting - Max-Gain Systems, Inc

Type DCC507 201K capacitor

Facebook0 Pin0 Email0

$29.95

Doorknob Transmitting Capacitor

Out of stock

SKU: DNCAP-08 Categories: Capacitors, Doorknob Transmitting Ceramic, RF Components, Surplus Components Tags: 10.4 Amps, 200-pf, 7.5 kV, doorknob capacitor, New, surplus, transmitting

Description
Additional information

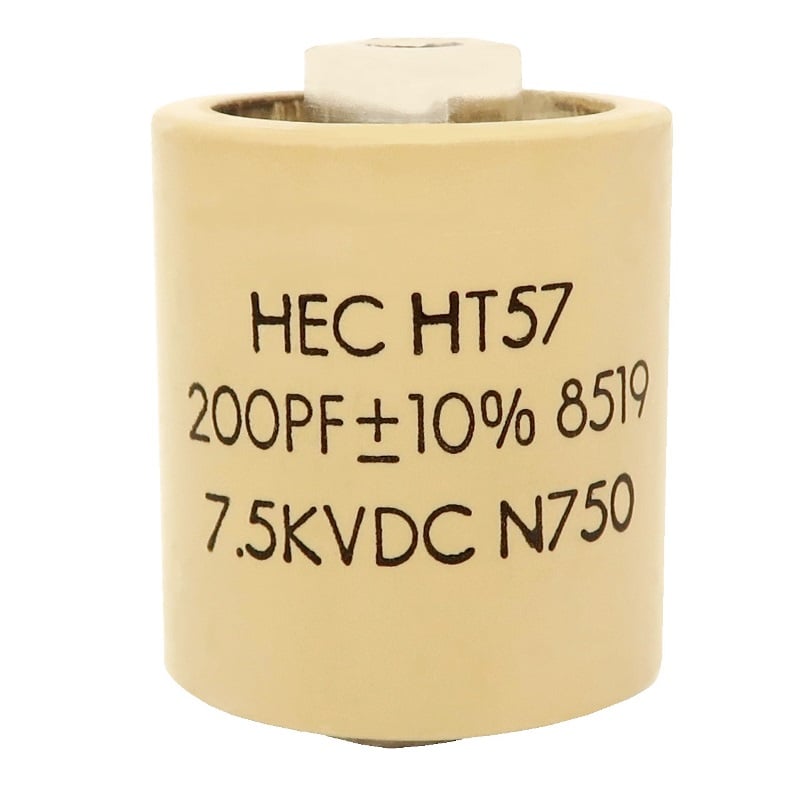

HEC HT57 Doorknob Transmitting Capacitor

Manufacturer	Unknown
Material	Ceramic
Capacitance	200 pf
Voltage Rating	7.5 KV
Current Rating	10.4 Amps @ 1 Mhz
Important Dimensions
Max Width	1.25 in / 31.75 mm
Max Height	1.50 in / 38.10 mm
Weight	3.40 oz / 0.096 kg

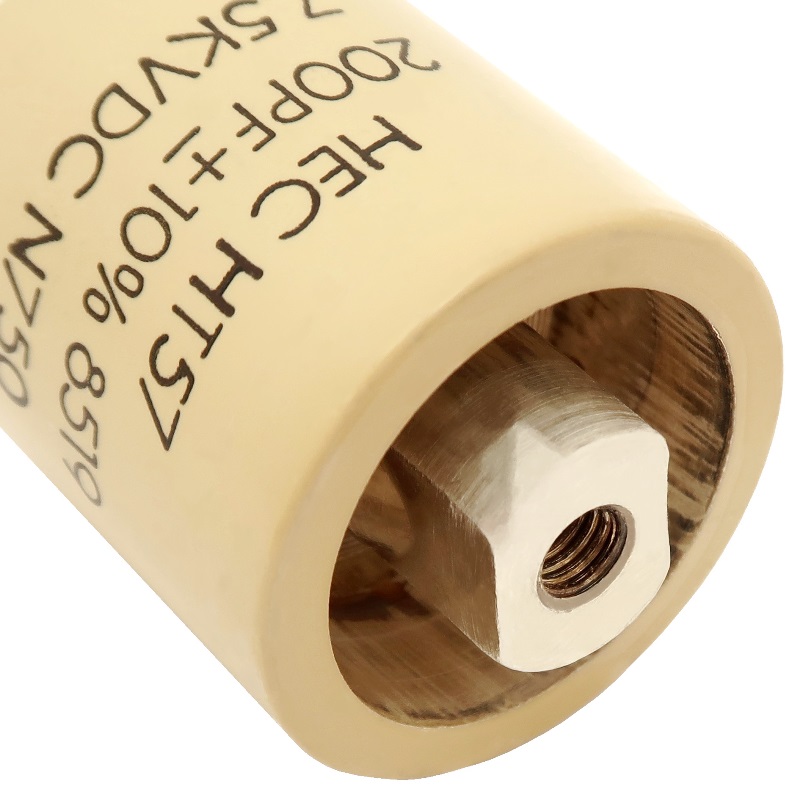

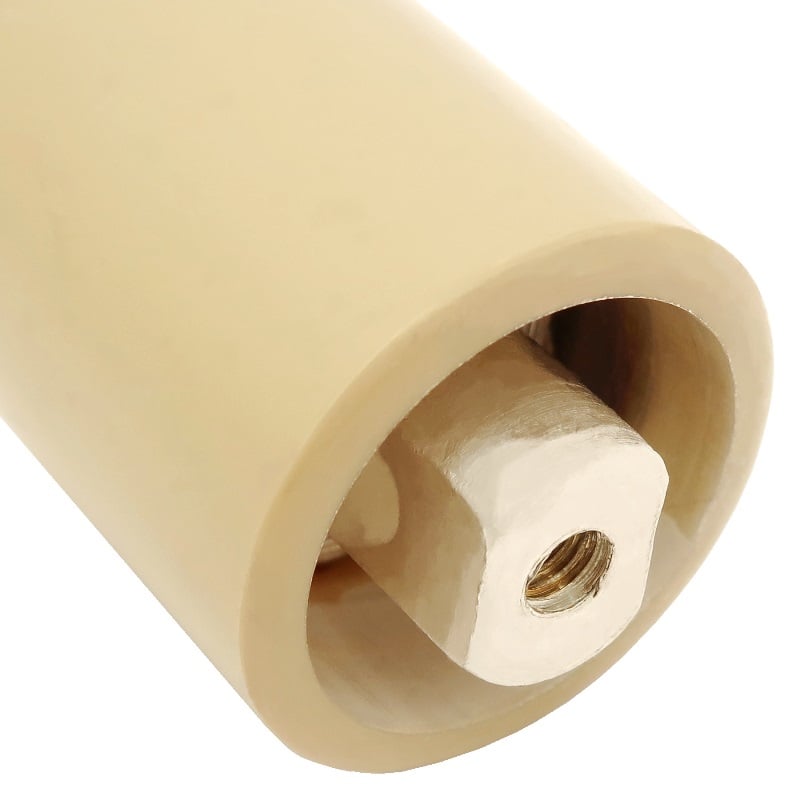

Mounting
Mounting	Drilled and tapped for a screws on each end.
Condition	New, old stock

Additional information

Shipping Weight	3.40 oz
Shipping Dimensions	3.25 × 3.25 × 3.50 in
Max Capacitance	200 pF
Voltage	7.5 KV
Current Rating	10.4 Amps
Condition	New, Surplus
itemCondition	NewCondition
