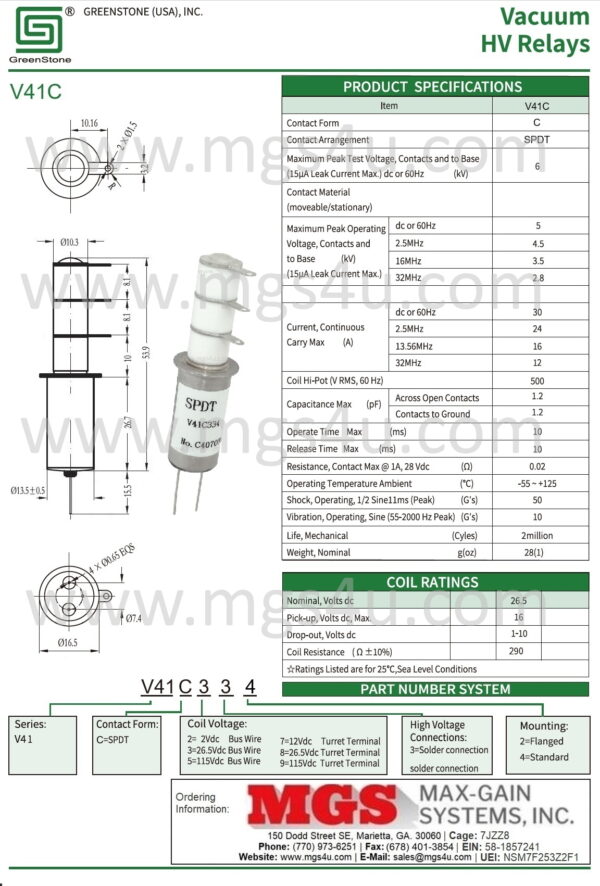

Greenstone V41C334 SPDT Vacuum Relay
Military Specs | MIL-R-83725, M83725/13, MK41C834-008 |
Peak Test Voltage | 6 kV |
Peak Operating Voltage | 5 kV |
Current Carry Amps (RMS) | 30 amps @ 60 Hz |
Contact Close Speed | 10 MS (Milliseconds) |
Contact Release Speed | 10 MS (Milliseconds) |
Rated Life Operations | 2,000,000 |
Important Dimensions | |
Max Length | 2.13 in / 54 mm |
Max Diameter | 0.65 in / 16.50 mm |
Mounting Hole Diameter | 0.55 in / 14 mm |
Weight | 0.8 oz / 22 g |
Mounting | With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. |
Condition | Brand New, unused. Guaranteed good. |
(Other variations of this capacitor are sometimes available, inquire) | |||
Greenstone | Gigavac | GL-Vac | Kilovac |
V41C232 | G41C232 | GL41C232 | K41C232 |
V41C234 | G41C234 | GL41C234 | K41C234 |
V41C332 | G41C332 | GL41C332 | K41C332 |
V41C334 | G41C334 | GL41C334 | K41C334 |
V41C532 | G41C532 | GL41C532 | K41C532 |
V41C534 | G41C534 | GL41C534 | K41C534 |
V41C732 | G41C732 | GL41C732 | K41C732 |
V41C734 | G41C734 | GL41C734 | K41C734 |
V41C832 | G41C832 | GL41C832 | K41C832 |
V41C834 | G41C834 | GL41C834 | K41C834 |
V41C932 | G41C932 | GL41C932 | K41C932 |
V41C934 | G41C934 | GL41C934 | K41C934 |
Running LESS Power? Checkout the Greenstone VHC-1
Running MORE Power? Checkout the Greenstone VC-2
All Single Pole Double Throw Vacuum Relays (SPDT)
All Vacuum Relays (SPST, SPDT, DPDT)
