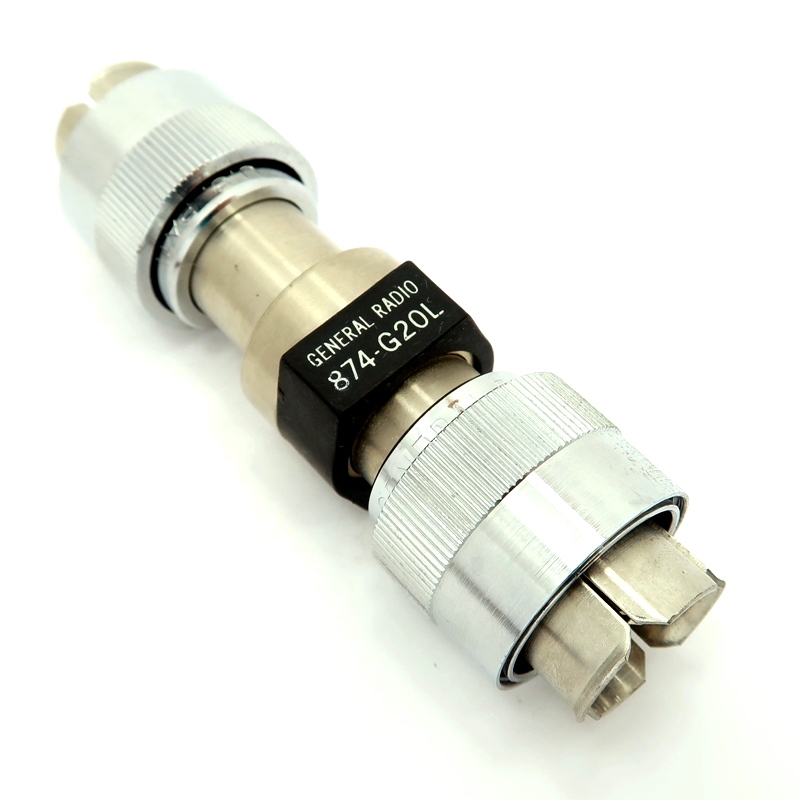

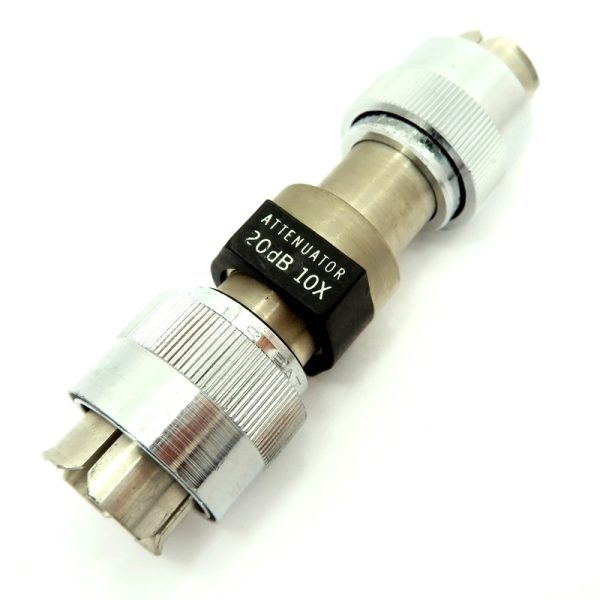

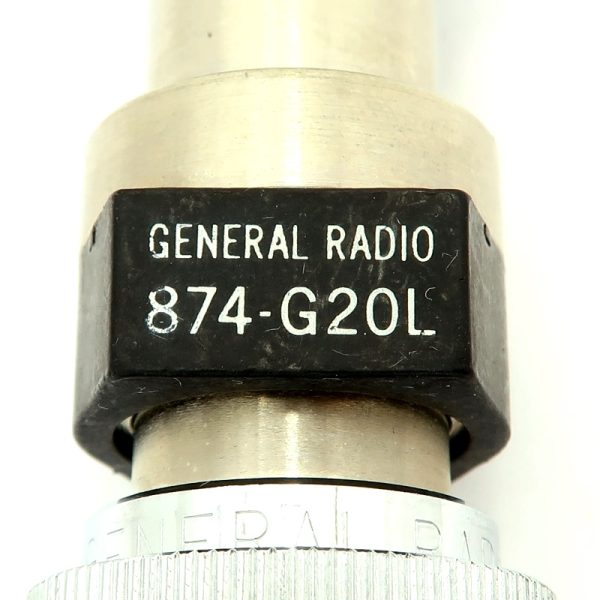

20 dB Fixed Attenuators (50 OHM, locking), General Radio Part #: 874-G20L

$25.00

20 dB Fixed Attenuators (50 OHM, locking)

5 in stock

Single-section, F type resistance pads, for insertion of fixed attenuation in 50-ohm systems and for isolation and matching to 50 ohms over a broad frequency range. Each attenuator consists of one disk and two cylindrical resistors, as shunt and series elements respectively. The 20-dB attenuators are particularly convenient in pulse applications as voltage dividers. 50 OHM impedance, locking GR-874 connector. Sourced from military surplus lots.

General Radio Part #: 874-G20L

Additional information

Shipping Weight 4.00 oz
Shipping Dimensions 3.53 × 1.02 × 1.02 in
Manufacturer

General Radio

Attenuation

20 dB

Connection Type

Connection Type 2

GR874

Impedance

50 OHM

Condition

Used, Surplus

itemCondition
