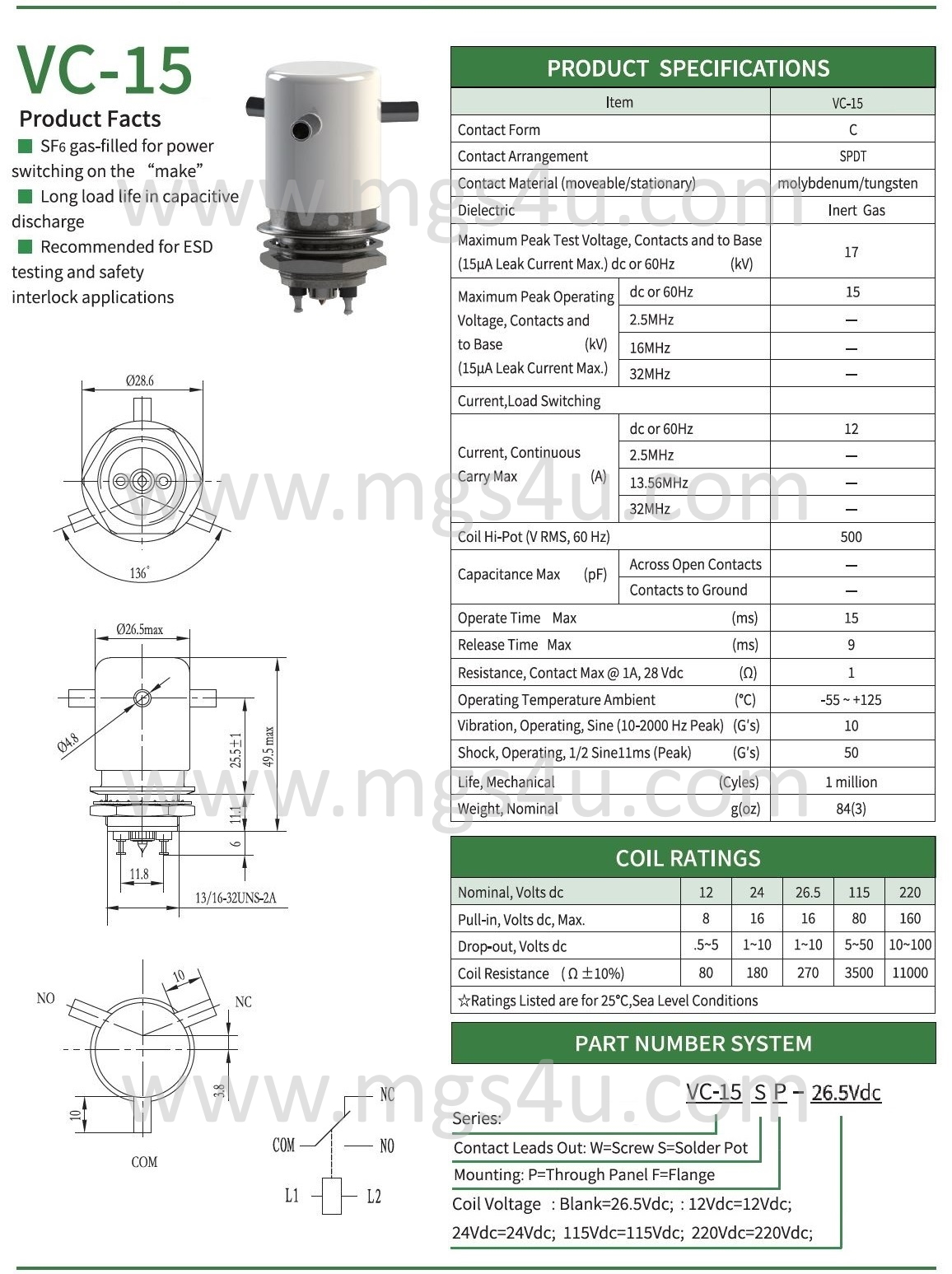

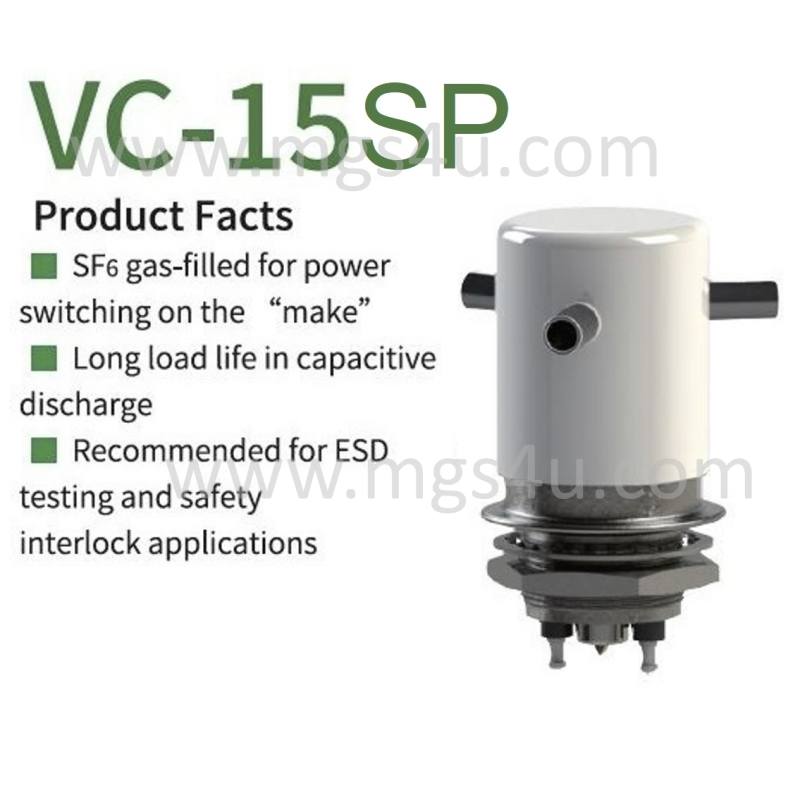

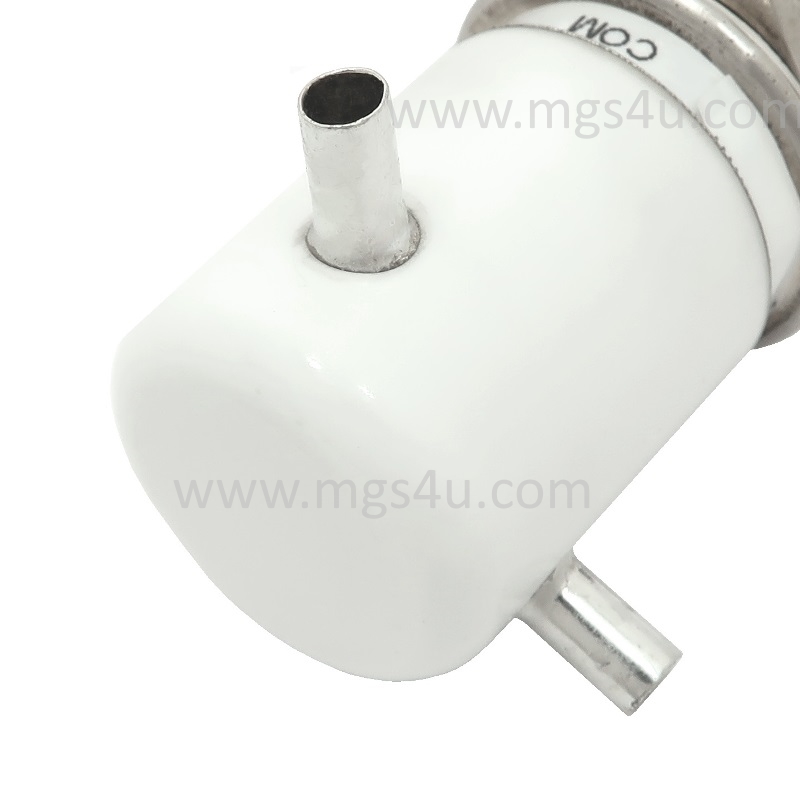

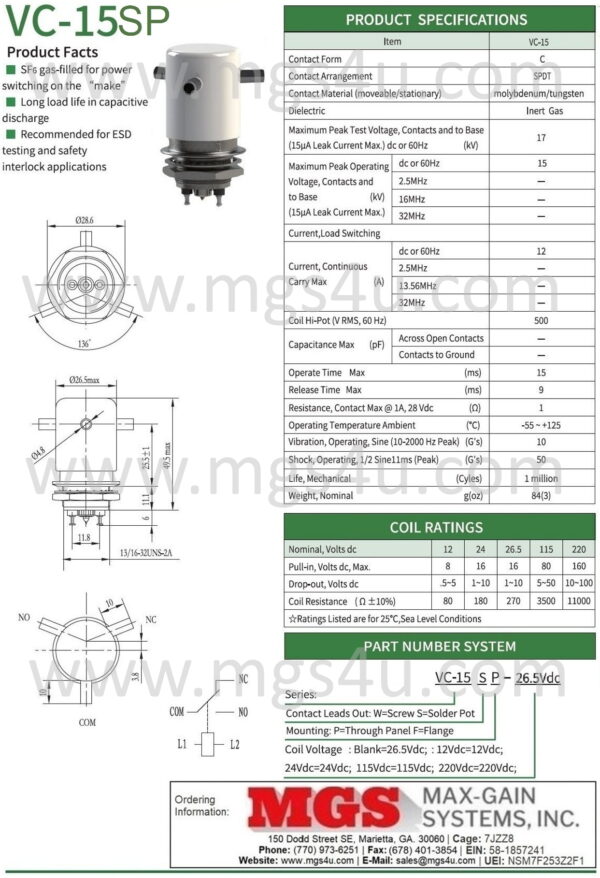

VC-15SP SPDT Vacuum Relay, for “make” load switching
| Military Specs | MIL-R-83725 |
| Peak Test Voltage | 17 kV |
| Peak Operating Voltage | 15 kV |
| Current Carry Amps (RMS) | 12 amps @ 60 Hz |
| Contact Close Speed | 15 MS (Milliseconds) |
| Contact Release Speed | 9 MS (Milliseconds) |
| Rated Life Operations | 1,000,000 |

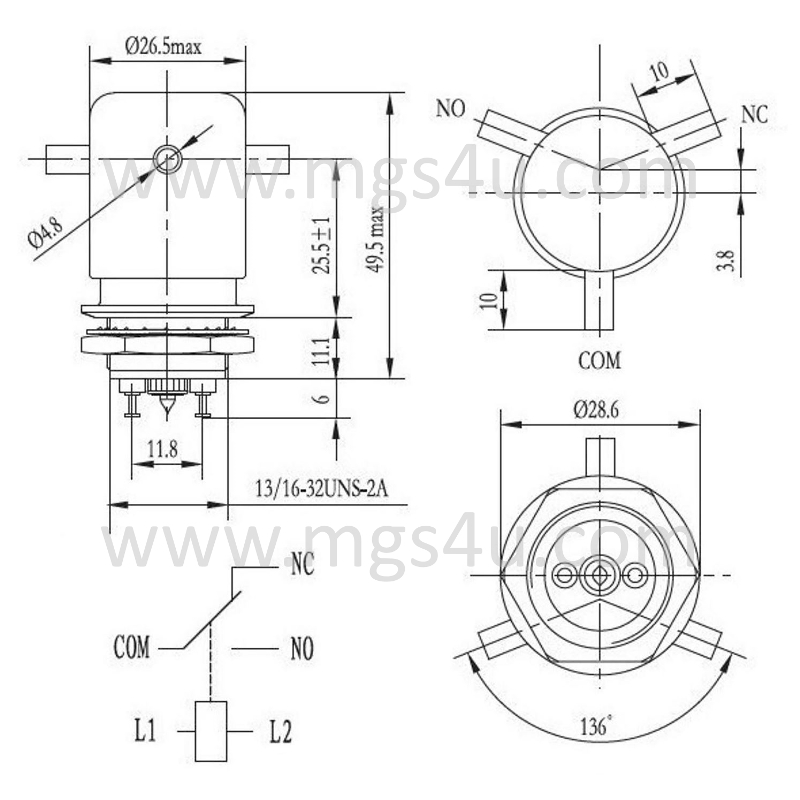

| Important Dimensions | |
| Max Length | 2.14 in / 54.50 mm |
| Max Diameter | 1.38 in / 35.00 mm |
| Weight | 3.00 oz / 84.00 g |

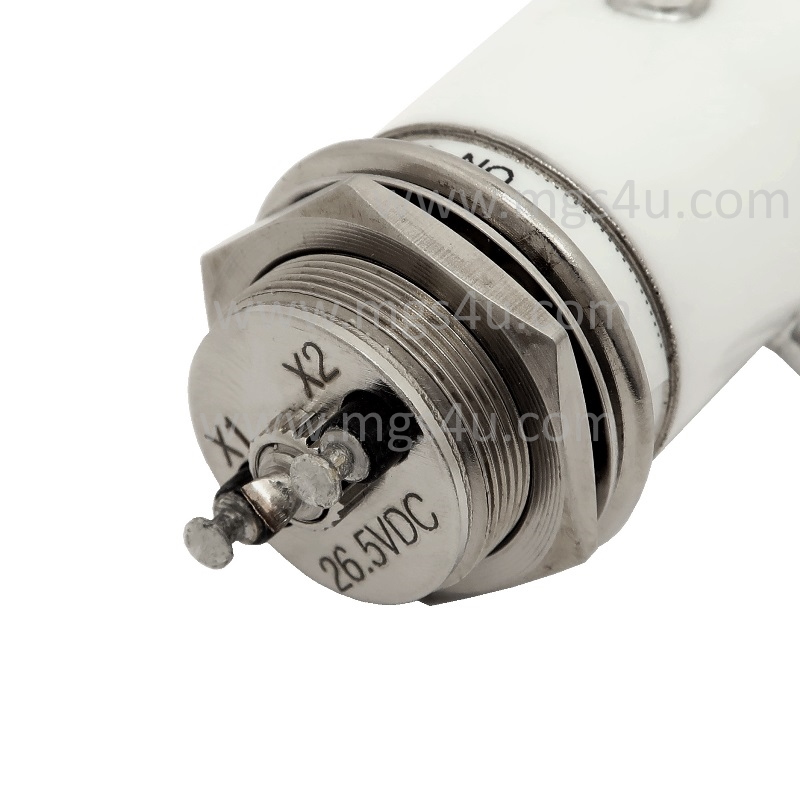

| Mounting | Threaded base with mounting nut and washer supplied; Bottom thread outer diameter is .802 inches. |
| Condition | Brand New, unused. Guaranteed good. |
| (Other variations of this relay are sometimes available, inquire) | |||
| Greenstone | Gigavac | GL-Vac | Kilovac |
| VC-15SP/26.5Vdc | G15SP | GL15SP | KC-16/26.5Vdc |
| VC-15SP/12Vdc | G15SP-12Vdc | GL15SP-12Vdc | KC-16/12Vdc |
| VC-15SP/115Vdc | G15SP-115Vdc | GL15SP-115Vdc | KC-16/115Vdc |
| VC-15SP/24Vdc | G15SP-24Vdc | GL15SP-24Vdc | KC-16/24Vdc |
| VC-15SP/220Vdc | G15SP-220Vdc | GL15SP-220Vdc | KC-16/220Vdc |
Running LESS Power? Checkout the Greenstone VHC-3
Running MORE Power? Checkout the Greenstone V60C
RF rated Version Greenstone VC-2
Ultra Long Life RF rated (25M Ops) Version VJ6B
RF rated DPDT Version Greenstone V2SPD
All Single Pole Double Throw Vacuum Relays (SPDT)
All Vacuum Relays (SPST, SPDT, DPDT)
