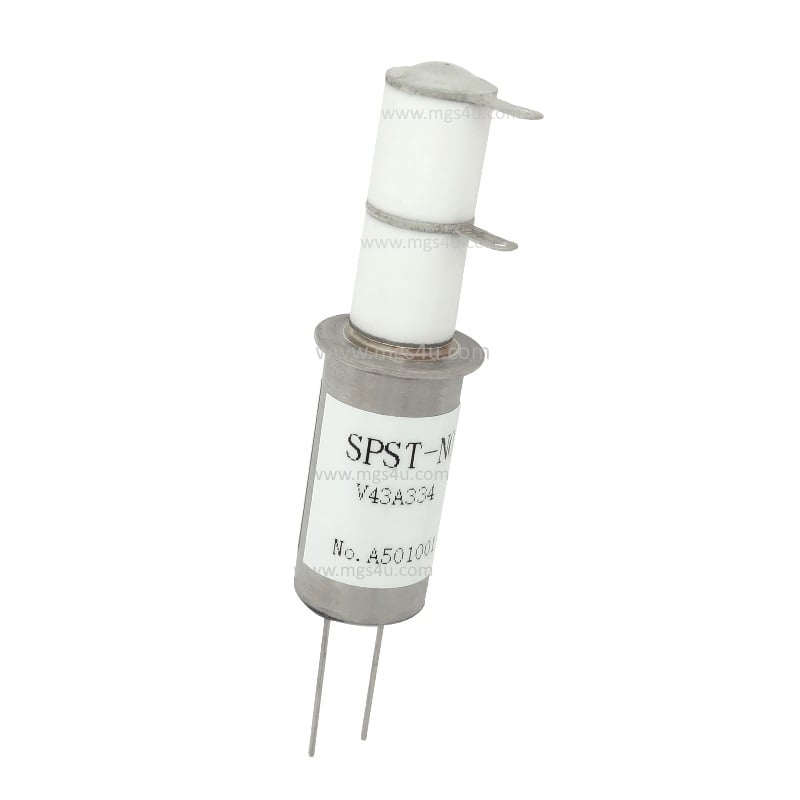

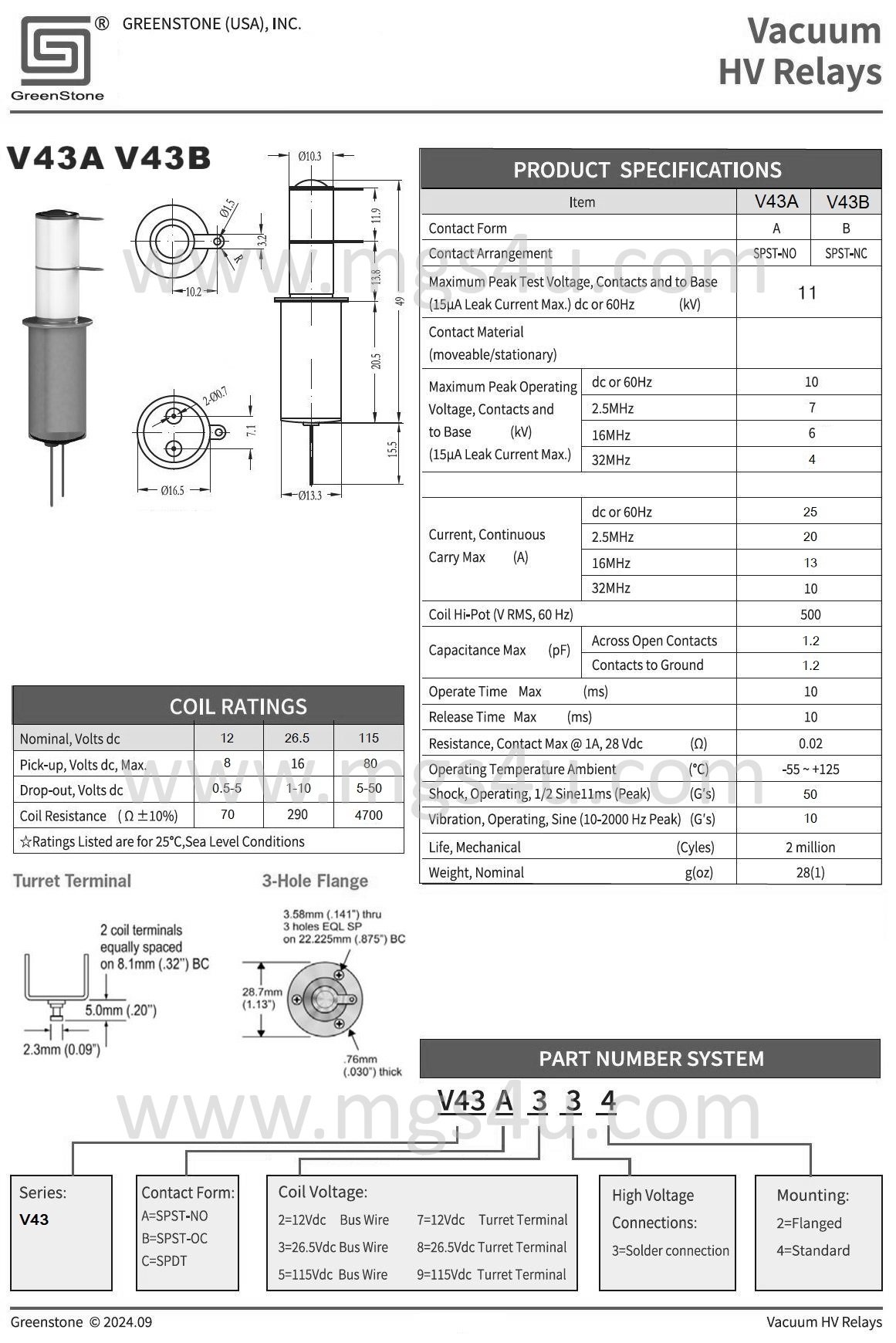

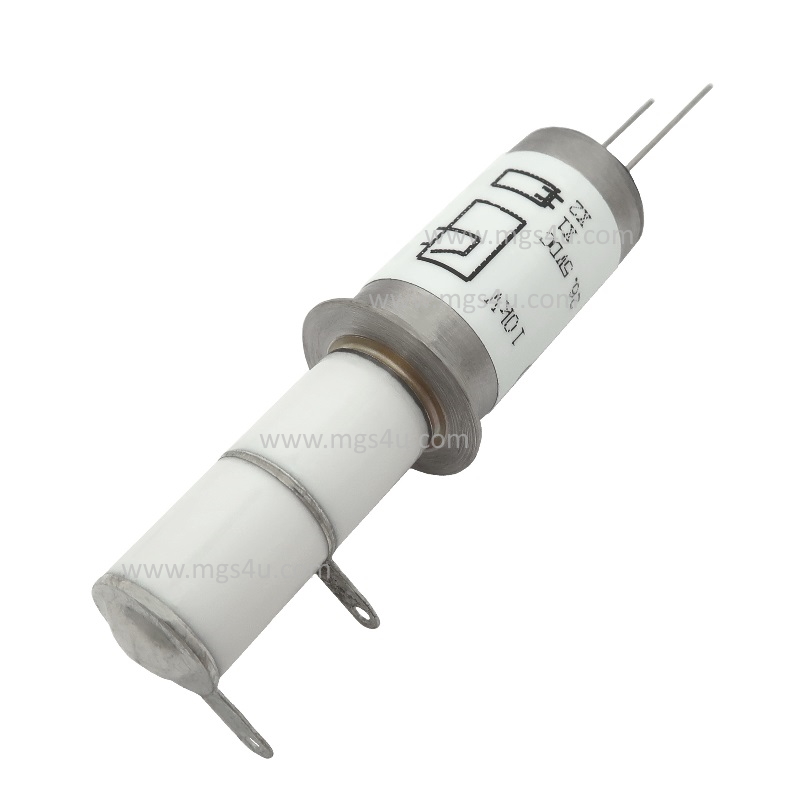

Greenstone V43A334 SPST-NO Vacuum Relay
| Military Specs | MIL-R-83725, M83725/17-003, 83725-96-0220 |
| Peak Test Voltage | 11 kV |
| Peak Operating Voltage | 10 kV |
| Current Carry Amps (RMS) | 25 amps @ 60 Hz |
| Contact Close Speed | 10 MS (Milliseconds) |
| Contact Release Speed | 10 MS (Milliseconds) |
| Rated Life Operations | 2,000,000 |

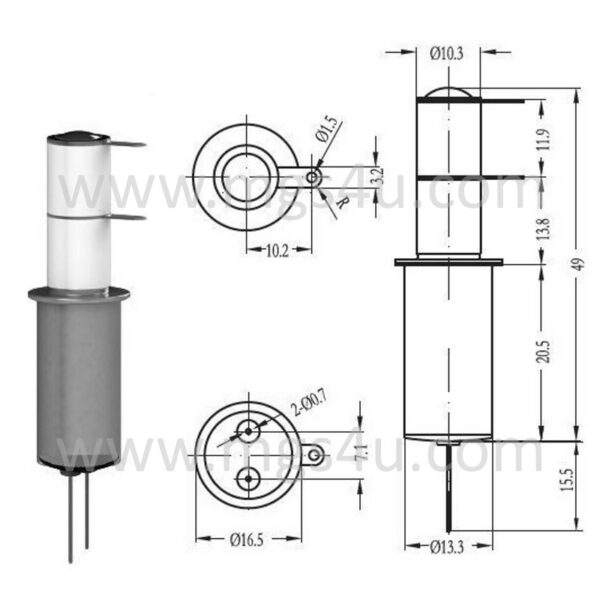

| Important Dimensions | |
| Max Length | 1.93 in / 49 mm |
| Max Diameter | 0.65 in / 16.50 mm |
| Mounting Hole Diameter | 0.55 in / 14 mm |
| Weight | 0.6 oz / 16 g |
| Mounting | With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. |
| Condition | Brand New, unused. Guaranteed good. |
| (Other variations of this relay are sometimes available, inquire) | |||
| Greenstone | Gigavac | GL-Vac | Kilovac |
| V43A232 | G43A232 | GL43A232 | K43A232 |
| V43A234 | G43A234 | GL43A234 | K43A234 |
| V43A332 | G43A332 | GL43A332 | K43A332 |
| V43A334 | G43A334 | GL43A334 | K43A334 |
| V43A532 | G43A532 | GL43A532 | K43A532 |
| V43A534 | G43A534 | GL43A534 | K43A534 |
| V43A732 | G43A732 | GL43A732 | K43A732 |
| V43A734 | G43A734 | GL43A734 | K43A734 |
| V43A832 | G43A832 | GL43A832 | K43A832 |
| V43A834 | G43A834 | GL43A834 | K43A834 |
| V43A932 | G43A932 | GL43A932 | K43A932 |
| V43A934 | G43A934 | GL43A934 | K43A934 |
Need a SPDT version? Checkout the Greenstone V41C334
Running MORE Power? Checkout the Greenstone V32WP
All Single Pole Single Throw Vacuum Relays (SPST)
All Vacuum Relays (SPST, SPDT, DPDT)
