Type N Female to GR874 (50 OHM & locking) General Radio Part #: 874-QNJL


Type N Female to GR874 (50 OHM & locking) adapter.

General Radio P/N: 874-QNJL

Out of stock

Join the waitlist to be emailed when this product becomes available

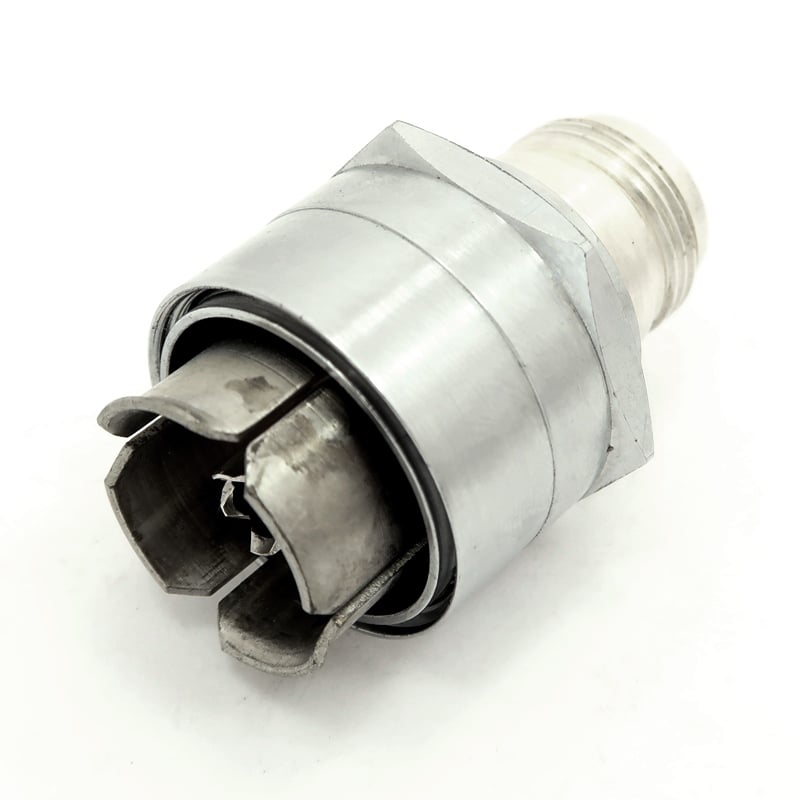

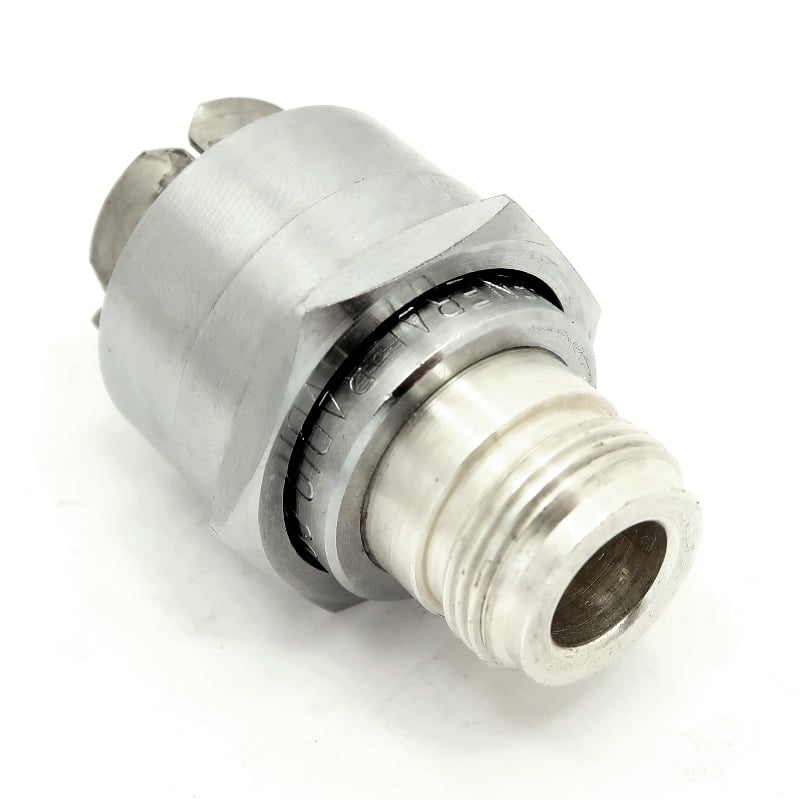

Type N Female to GR874 (50 OHM & locking) adapter
Detailed Product Information

This Type N Female to GR874 adapter (General Radio P/N: 874-QNJL) adapter adapter is one of several thousand RF products available from Max-Gain Systems, Inc. This adapter is a between series coaxial adapter.

Please note that these are not new adapters. These are from military surplus sources and will function perfectly.

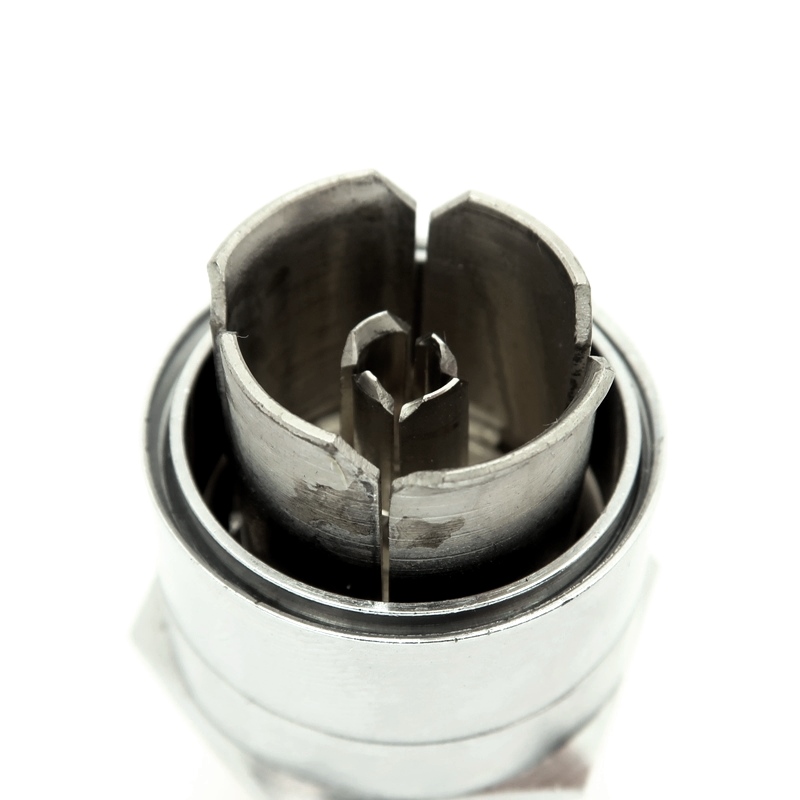

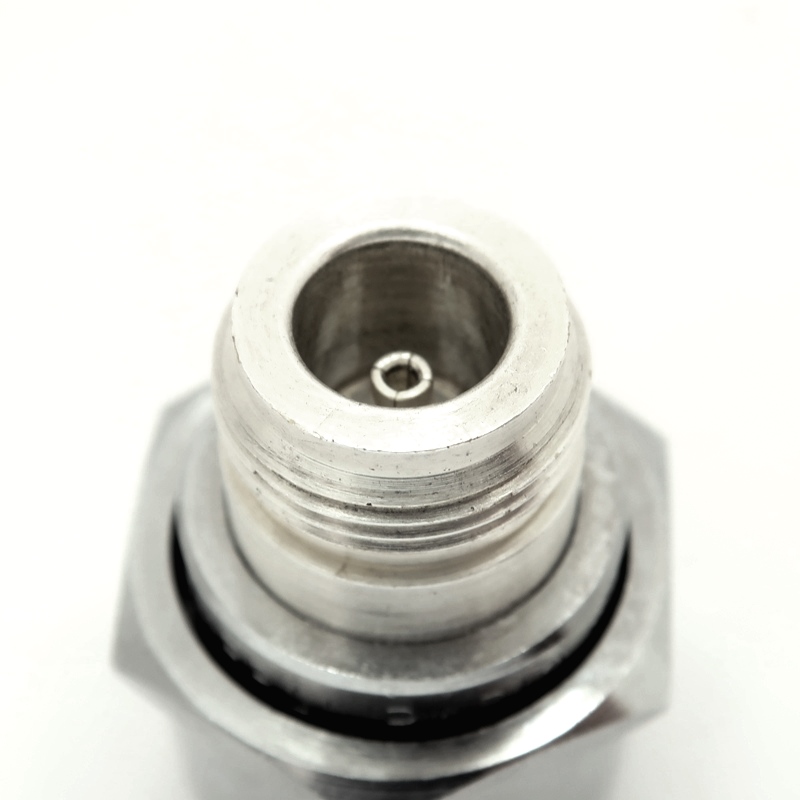

This 50 Ohm GR874 adapter is designed by the General Radio Company and precision manufactured for military and laboratory use. The Type N female side accepts the Type N male which contains a gasket, for shock- / vibration- resistant and waterproof connections. The GR874 connection type is sexless in that all GR874 connectors and adapters will mate with one another. Used in applications up to ~8 GHz.

General Radio Part #: 874-QNJL | Tektronix Part #: 017-0062-00

See our entire line RF Connectors and Adapters:

RF Connectors

RF Connectors 300x300 - Max-Gain Systems Inc

RF Adapters

RF Adapters 300x300 - Max-Gain Systems Inc

About Max-Gain Systems, Inc.

Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage.

Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to: marine / boating, aeronautical, agriculture, construction, emergency services, etc…. We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc…

Additional information

Shipping Weight 1.80 oz
Shipping Dimensions 1.60 × 1.00 × 1.15 in

General Radio

Connection Type

, ,

Connection Type 2

GR874, GR874 50 Ohm

Adapter Attribute

Body Style


50 OHM
