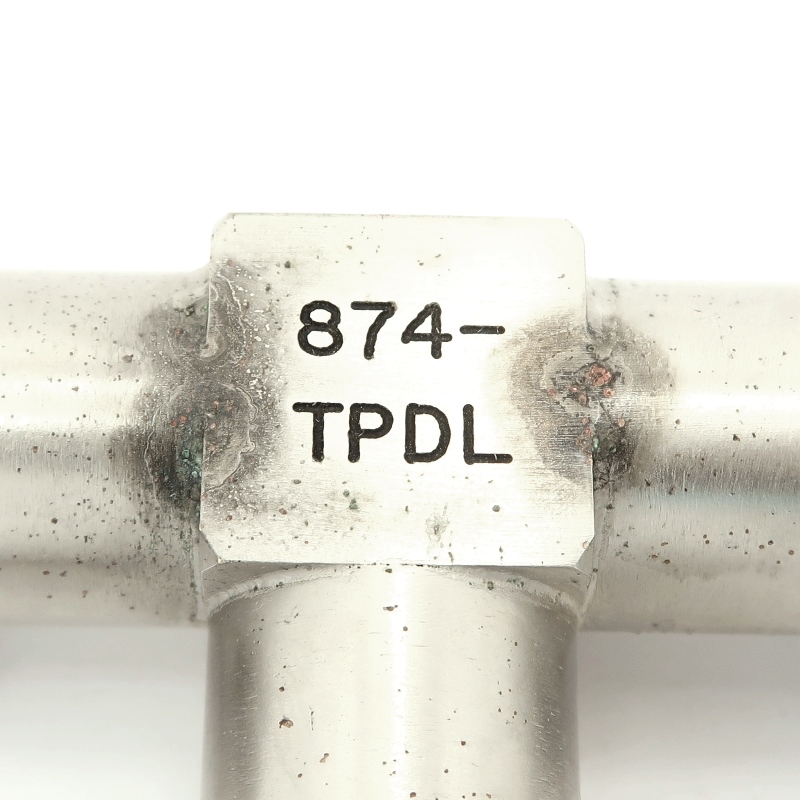

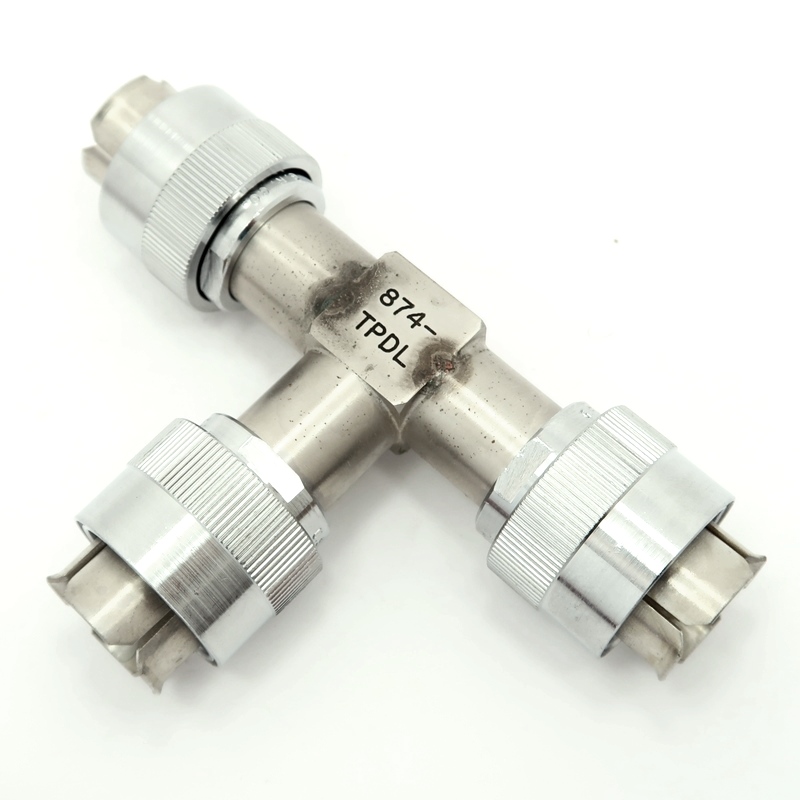

Power Divider (locking), General Radio Part #: 874-TPDL

$35.00

Power Divider (locking)

3 in stock

A coaxial tee with a 16.67 OHM resistor in each leg, connected so the tee is matched at any port when the other two ports are terminated in 50 OHM loads. The match holds throughout the wide frequency range. There is 0 degree phase difference between the outputs. The use of stable deposited-carbon-film resistors and the linear SWR-frequency relationship make these power dividers particularly valuable for pulse work and in network-analyzer applications, 50 OHM impedance, locking GR-874 connectors. Sourced frommilitary surplus lots.

Additional information

Shipping Weight 5.80 oz
Shipping Dimensions 2.48 × 3.99 × 1.01 in
Connection Type

Connection Type 2

GR874
