Mast Mount “GO ALL OUT” Combo

$449.95$459.95

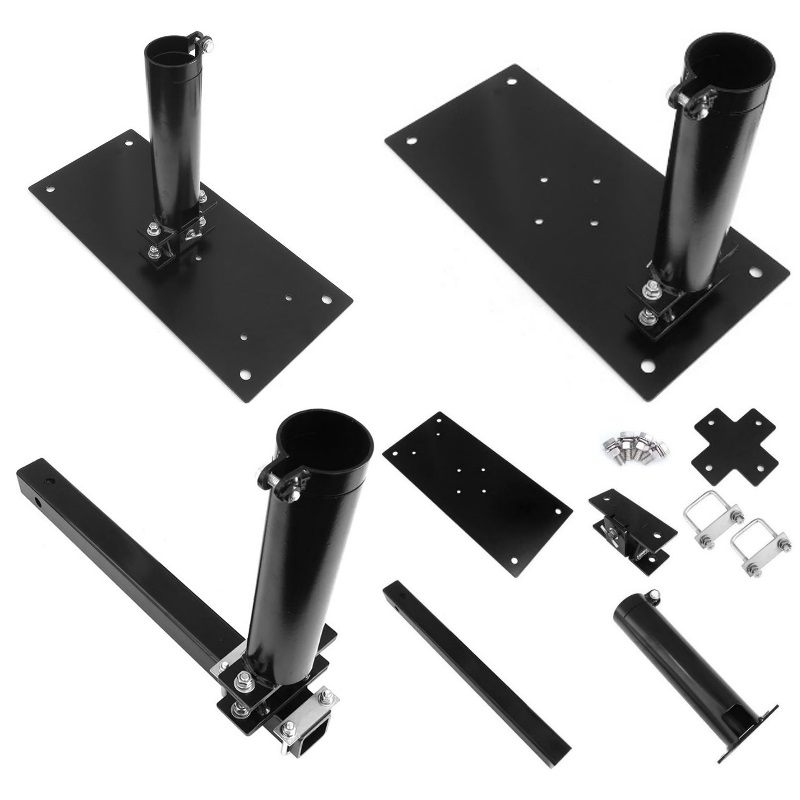

Everything you need to mount your mast wherever you are and wherever you go! This set allows for use as a Hitch mount, Ground mount, and Drive-on mount!

Select the mast series you are trying to mount:
(STD for 2″ OD Masts / Poles)
(HD for 2.5″ OD Masts / Poles)
(EXT for 2.5″ OD Extend Masts)

Select the length of the Hitch Bar:
(10.50″ long Hitch Bar)
(23″ long Hitch Bar to operate your Tailgate on a Truck or small access window of an SUV)

SKU: MOUNT-GAO Category:

Mast Mount “GO ALL OUT” Combo

They are finally here! Our customer’s have been asking for mounting systems for our Masts for years. After going through many different designs we have developed the most capable mounting system for use with our Masts. These Mast Mount “GO ALL OUT” Combos include all you would need to mount your mast in ANY situation.

Features:

Support Tube Polymer “Anti-Friction” Bearing – Polymer low friction bearing on an internal shelf allows for hand rotation of your mast when support tube clamp is loosened.

Support Tube Coax / Cable Port – Port, located at the base of the support tubes, allows for Coax and Cables to be fed up through the mast protecting the Coax or Cable and allowing for a very clean looking install.

Support Tube and Tilt Mechanism – Precision welds and made from as few pieces as possible to increase strength and durability.

Hitch Bar Cross Drilled – These hitch bars are cross drilled, where the hitch bar attaches to the trailer hitch, allowing for rotation of the entire mount assembly for storage to get it out of the way when you are not currently using it.

Steel Construction – These tubes being made from steel makes for no weak points allowing for additional strength.

Laser Cut Slots and Holes – Precision laser cut holes for easy hardware insertion and a perfectly smooth base

Powder Coating – Expertly applied powder coating for maximum durability, life span, and a perfectly smooth finish.

Stainless Steel Hardware – All hardware is stainless steel for longevity

Assembly Instructions

In order to see the assembly instructions to get these components to the required configuration, select the use below:

Ground Mount Assembly

The Ground Mount uses the following components:

1x Mast Support Tube
1x Tilt Mechanism (optional)
1x 10″ x 22″ Base Plate
4x 3/8″ Stainless Steel Bolts (4x are needed if using the optional Tilt Mechanism, 2x if used with no Tilt Mechanism)

Step 1

(If you did not select the tilt mechanism option, proceed to Step 2)

Attach the Tilt mechanism to the Base Plate. Use the holes in the base plate that are located at one end of the 10″ x 22″ base plate.

M-TILT Mast Mount Tilt Mechanism
M-P1022 Ground Plate mounting holes to use - Max-Gain Systems, Inc.

Step 2

(With Tilt Mechanism)

Attach the Support Tube to the Tilt Mechanism. Be sure to point the “coax port” on the base of the support tube in the same direction as the T-Bolt of the Tilt Mechanism.Ground Base Mast Mount Tilt Assembled - Max-Gain Systems, Inc.

(Without Tilt Mechanism)

Attach the Support Tube to the Base plate. Ground Base Mast Mount Assembled - Max-Gain Systems, Inc.

Step 3

Fully assembled Ground Base Mast Mount

(With Tilt Mechanism)

Ground Base Mast Mount Kit with Tilt Mechanism fully assembled - Max-Gain Systems, Inc.

(Without Tilt Mechanism)

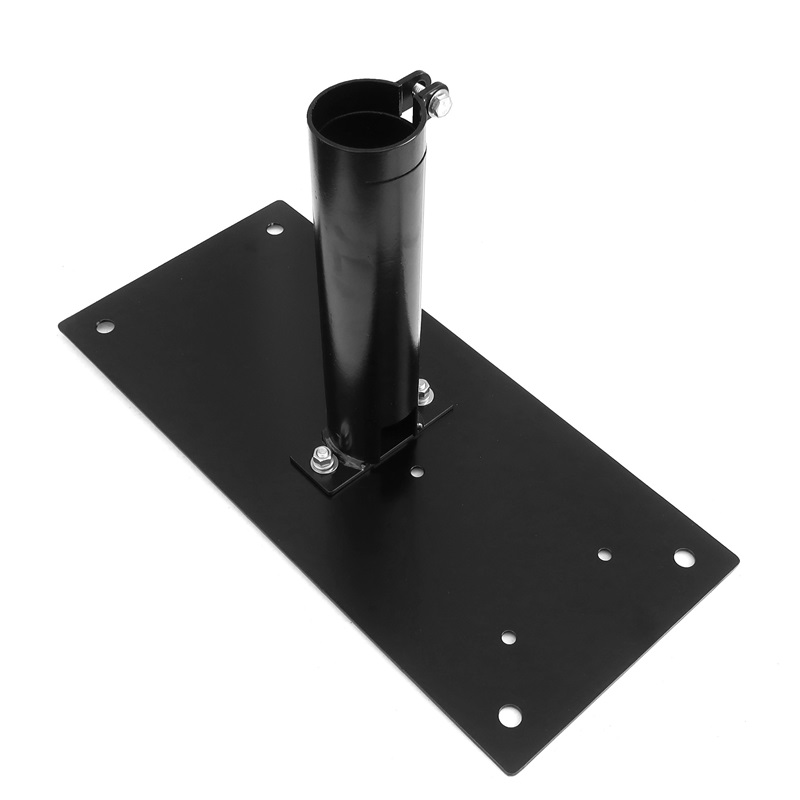

Ground Base Mast Mount Kit fully assembled - Max-Gain Systems, Inc.



Drive-On Mount Assembly

The Drive-On Mount uses the following components:

1x Mast Support Tube
1x Tilt Mechanism (optional)
1x 10″ x 22″ Base Plate
4x 3/8″ Stainless Steel Bolts (4x are needed if using the optional Tilt Mechanism, 2x if used with no Tilt Mechanism)

Step 1

(If you did not select the tilt mechanism option, proceed to Step 2)

Attach the Tilt mechanism to the Base Plate. Use the holes in the base plate that are located at one end of the 10″ x 22″ base plate.

M-TILT Mast Mount Tilt Mechanism
M-P1022 Drive-On Plate mounting holes to use - Max-Gain Systems, Inc.

Step 2

(With Tilt Mechanism)

Attach the Support Tube to the Tilt Mechanism. Be sure to point the “coax port” on the base of the support tube in the same direction as the T-Bolt of the Tilt Mechanism.Drive-On Mast Mount with tilt and support tube assembled in the proper orientation - Max-Gain Systems, Inc.

(Without Tilt Mechanism)

Attach the Support Tube to the Base plate. Orientation is not critical, but placing the “coax port” facing AWAY from the vehicle will allow easier access to the clamping bolt at the top of the support tube.Drive-On Mast Mount support tube assembled - Max-Gain Systems, Inc.

Step 3

Fully assembled Drive-On Mast Mount

(With Tilt Mechanism)

Mast Ground Mount Tilt Actuated - Max-Gain Systems, Inc.

(Without Tilt Mechanism)

Truck Drive-On Mast Mount - Max-Gain Systems, Inc.



Trailer Hitch Mount Assembly

The Trailer Hitch Mount uses the following components:

1x Mast Support Tube
1x Tilt Mechanism (optional)
1x Cross Adapter (for use with Tilt Mechanism option)
4x 3/8″ Stainless Steel Bolts (for use with Tilt Mechanism option)
1x Hitch Bar (either 23 inch or 10.5 inch)
2x sets of Stainless, Square, U-Bolt Hardware

Step 1

(If you did not select the tilt mechanism option, proceed to Step 3)

Attach the Tilt mechanism to the Cross Adapter.

Trailer Hitch Mast Mount Assembley Tilt and Cross - Max-Gain Systems, Inc.
Trailer Hitch Mast Mount Assembley Tilt and Cross fully assembled - Max-Gain Systems, Inc.

Step 2

Attach the Tilt Mechanism and Cross Adapter assembly to the end of the hitch bar that DOES NOT have the cross drilled holes.Trailer Hitch Mast Mount Assembley Tilt and Cross attached to Hitch Bar fully assembled - Max-Gain Systems, Inc.

BE SURE to install the assembly with the T-bolt FACING THE VEHICLE. This will allow the tilt mechanism to operate tilting back behind the vehicle.Truck Hitch Tilt Coax Center and Correct Tilt Mechanism usage - Max-Gain Systems, Inc.

Step 3

Attach the Support Tube to the Hitch Bar Assembly

(With Tilt Mechanism)

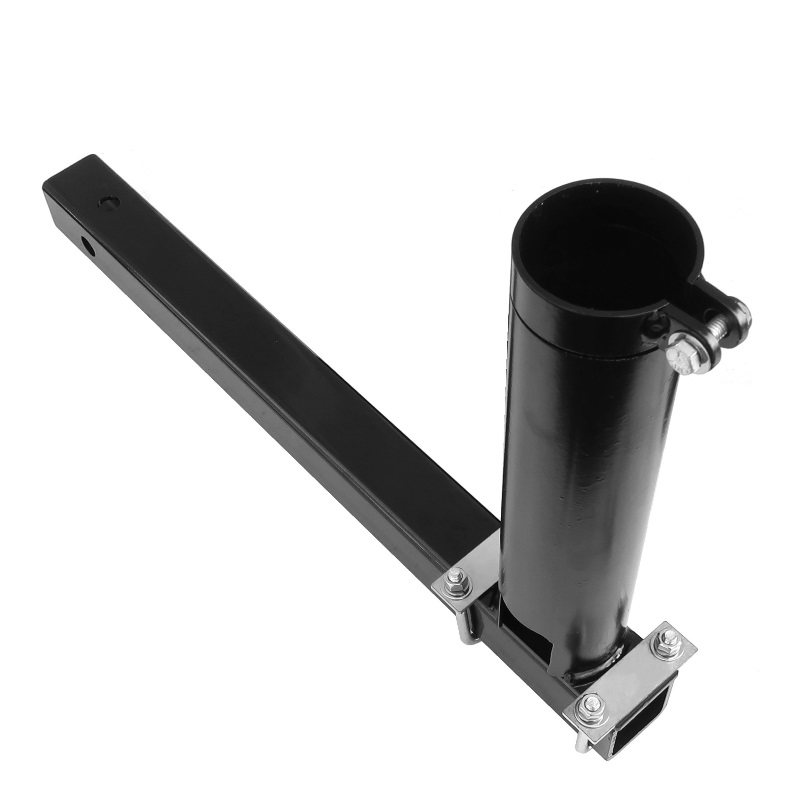

Support Tube installed onto Hitch Bar with Tilt Mechanism Correctly - Max-Gain Systems, Inc.

(Without Tilt Mechanism)

Support Tube installed onto Hitch Bar Correctly - Max-Gain Systems, Inc.



Additional information

Shipping Weight N/A
Shipping Dimensions N/A
Mast Kit Series

Standard (STD), Ultra Heavy Duty (UHD), Heavy Duty (HD), Heavy Duty Extend (EXT)

Hitch Bar Length

10.5", 23"

Ease-of-Use Tilt?

Yes
