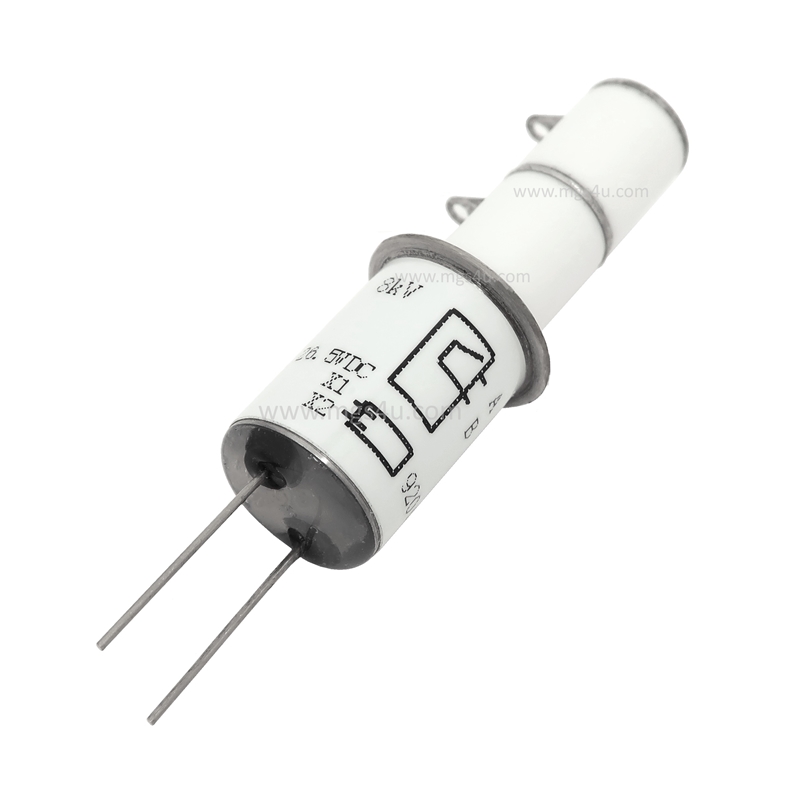

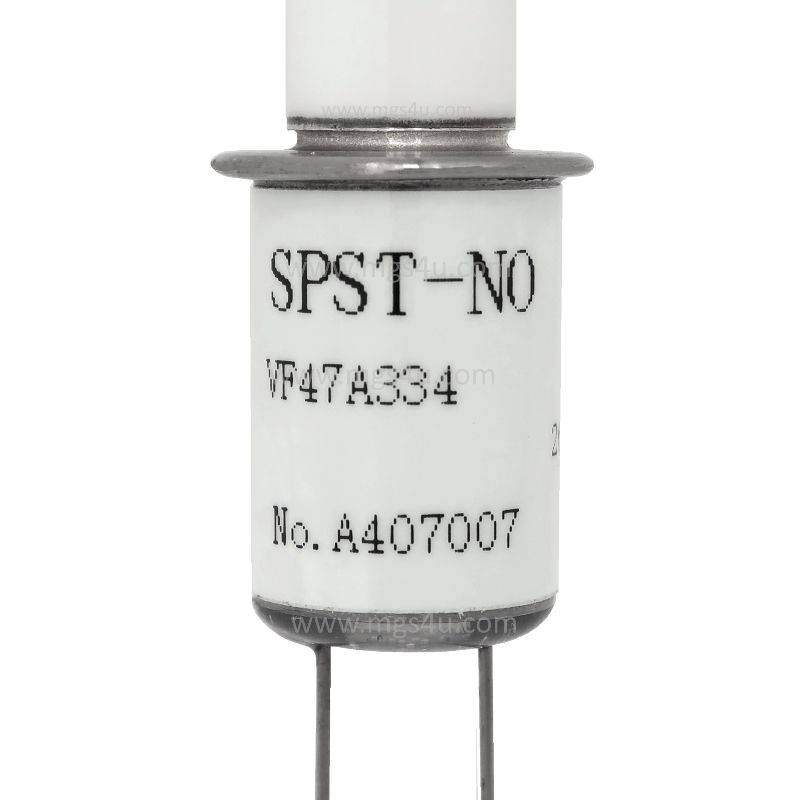

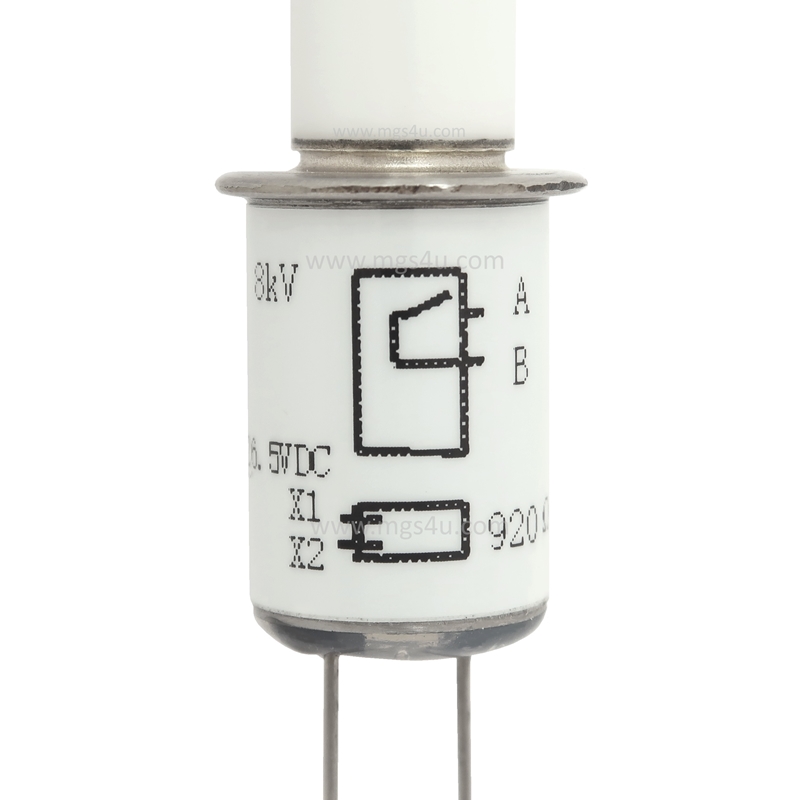

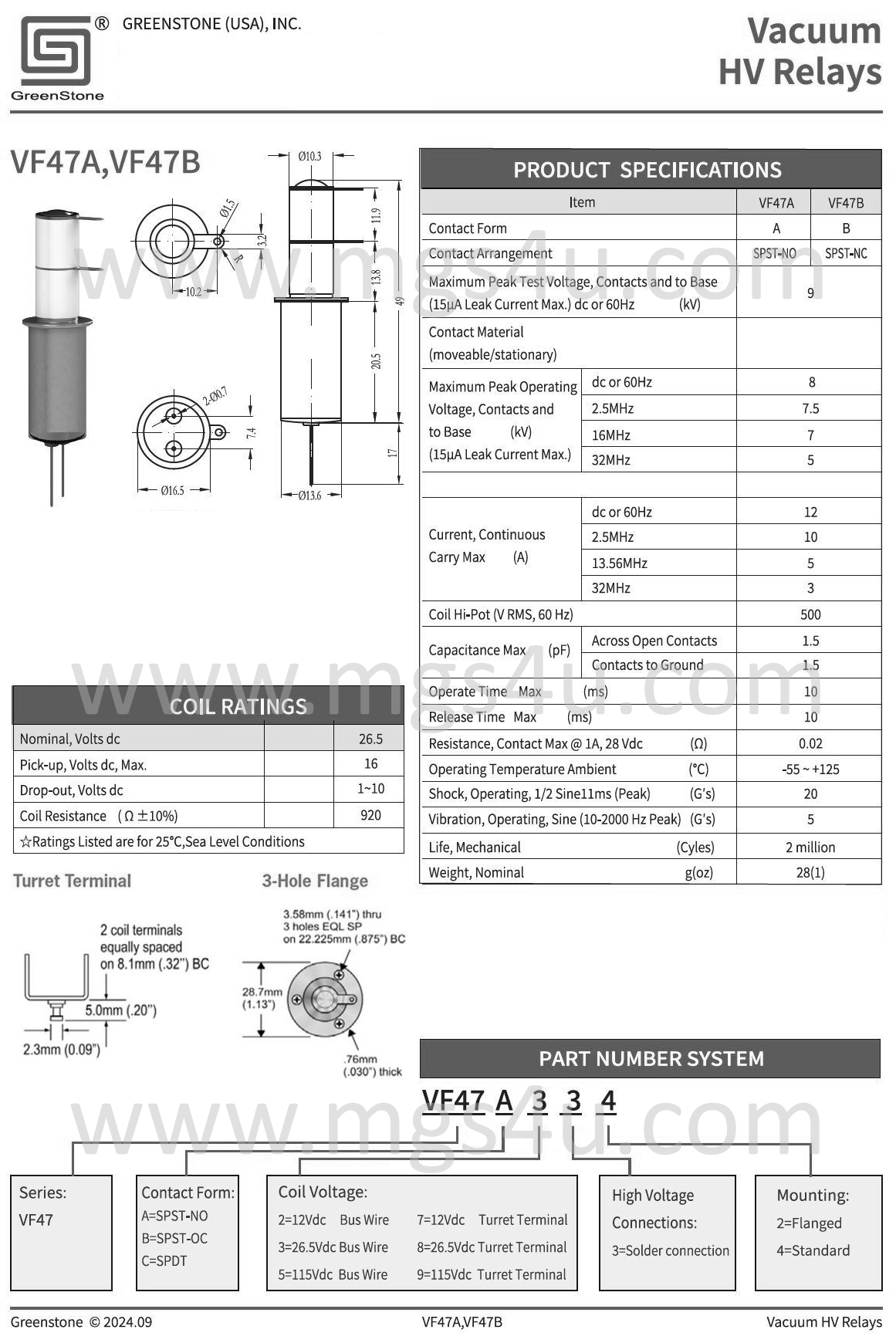

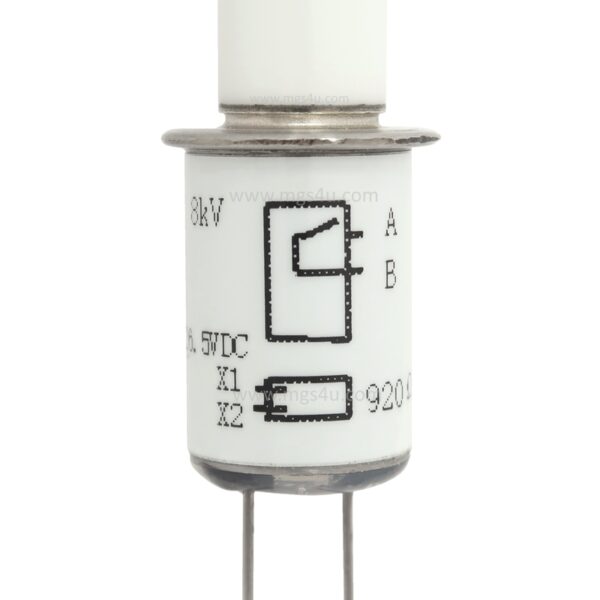

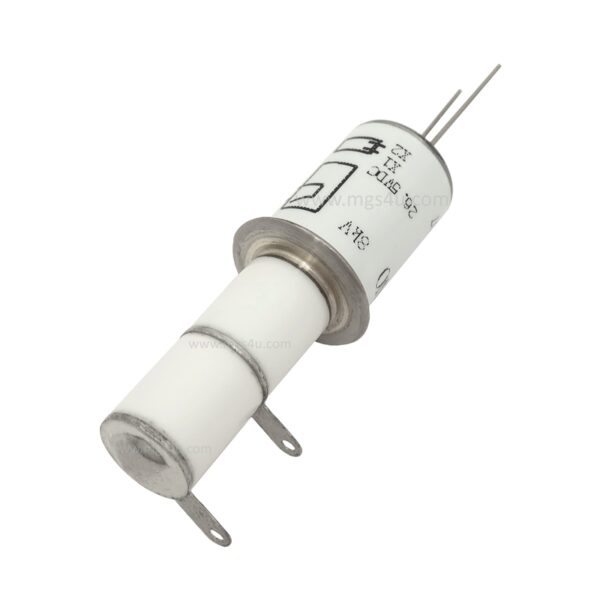

Greenstone VF47A334 SPST-NO Vacuum Relay
| Military Specs | MIL-R-83725, M83725/12-002, 83725-96-0220 |
| Peak Test Voltage | 9 kV |
| Peak Operating Voltage | 8 kV |
| Current Carry Amps (RMS) | 12 amps @ 60 Hz |
| Contact Close Speed | 10 MS (Milliseconds) |
| Contact Release Speed | 10 MS (Milliseconds) |
| Rated Life Operations | 2,000,000 |

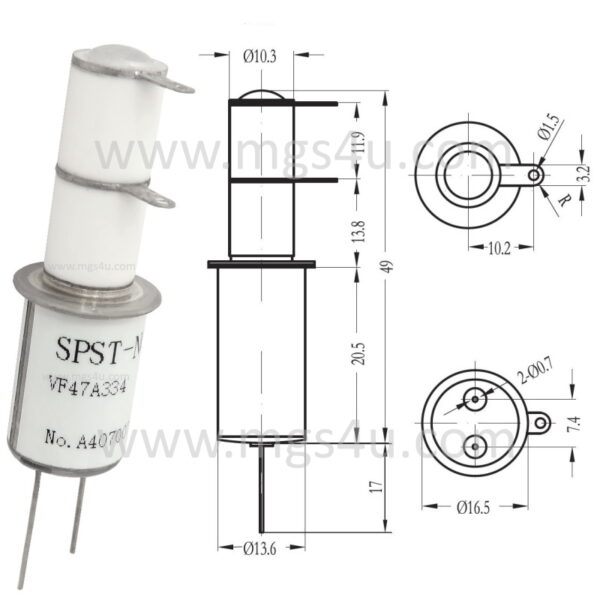

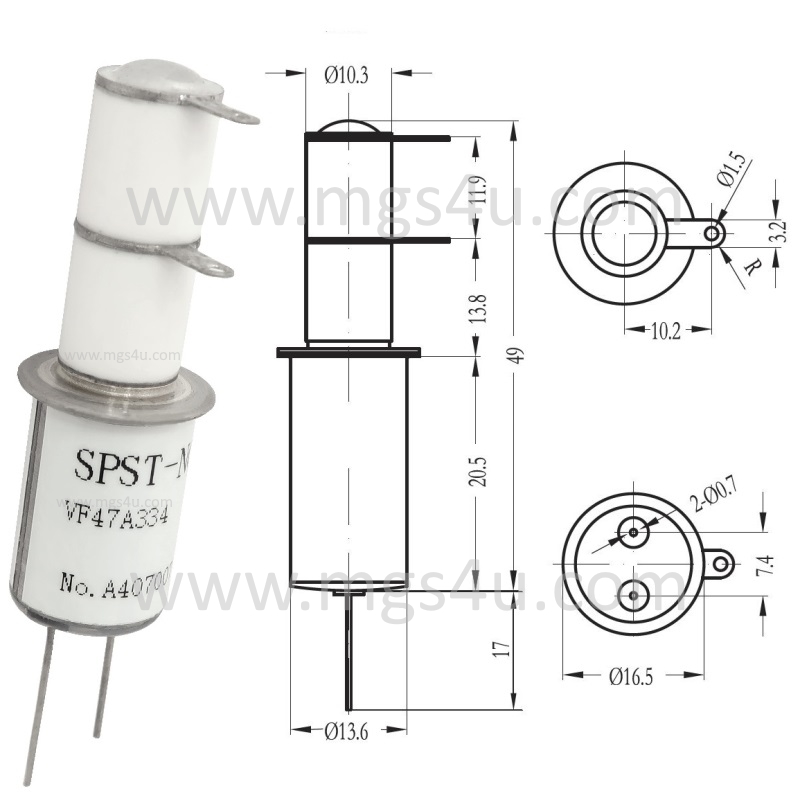

| Important Dimensions | |
| Max Length | 1.93 in / 49 mm |
| Max Diameter | 0.65 in / 16.50 mm |
| Mounting Hole Diameter | 0.55 in / 14 mm |
| Weight | 0.6 oz / 16 g |
| Mounting | With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. |
| Condition | Brand New, unused. Guaranteed good. |
| (Other variations of this relay are sometimes available, inquire) | |||
| Greenstone | Gigavac | GL-Vac | Kilovac |
| VF47A232 | G47A232 | GL47A232 | K47A232 |
| VF47A234 | G47A234 | GL47A234 | K47A234 |
| VF47A332 | G47A332 | GL47A332 | K47A332 |
| VF47A334 | G47A334 | GL47A334 | K47A334 |
| VF47A532 | G47A532 | GL47A532 | K47A532 |
| VF47A534 | G47A534 | GL47A534 | K47A534 |
| VF47A732 | G47A732 | GL47A732 | K47A732 |
| VF47A734 | G47A734 | GL47A734 | K47A734 |
| VF47A832 | G47A832 | GL47A832 | K47A832 |
| VF47A834 | G47A834 | GL47A834 | K47A834 |
| VF47A932 | G47A932 | GL47A932 | K47A932 |
| VF47A934 | G47A934 | GL47A934 | K47A934 |
Need a SPDT version? Checkout the Greenstone V41C334
Running MORE Power? Checkout the Greenstone V32WP
