Greenstone VF80-26S SPST-NO Vacuum Relay
| Peak Test Voltage | 10 kV |
| Peak Operating Voltage | 8 kV |
| Current Carry Amps (RMS) | 35 amps @ 60 Hz |
| Contact Close Speed | 8 MS (Milliseconds) |
| Contact Release Speed | 3 MS (Milliseconds) |
| Rated Life Operations | 1,000,000 |

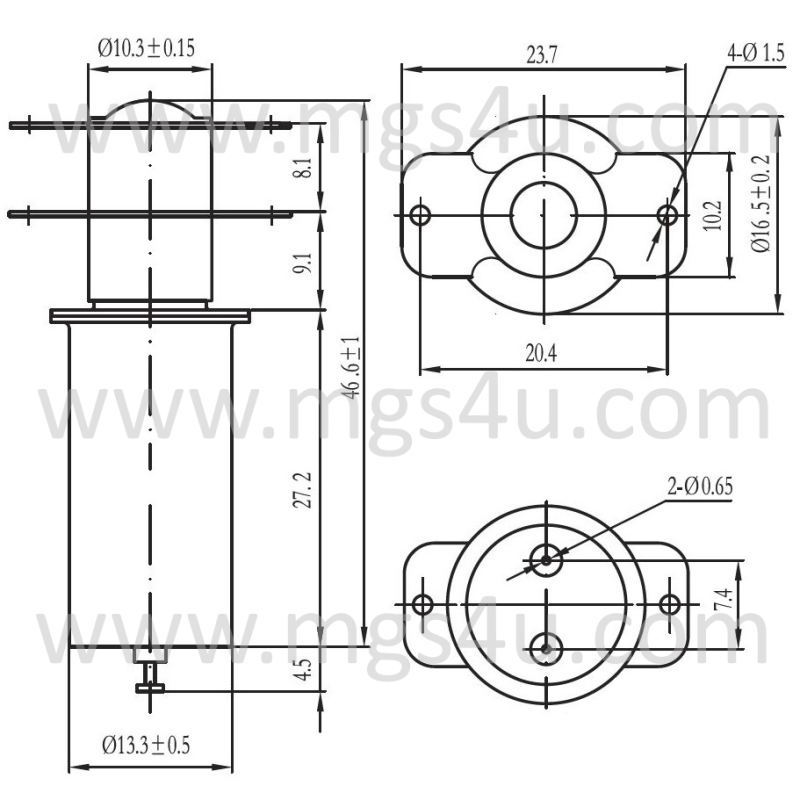

| Important Dimensions | |
| Max Length | 1.93 in / 49 mm |
| Max Diameter | 0.65 in / 16.50 mm |
| Mounting Hole Diameter | 0.55 in / 14 mm |
| Weight | 0.6 oz / 16 g |

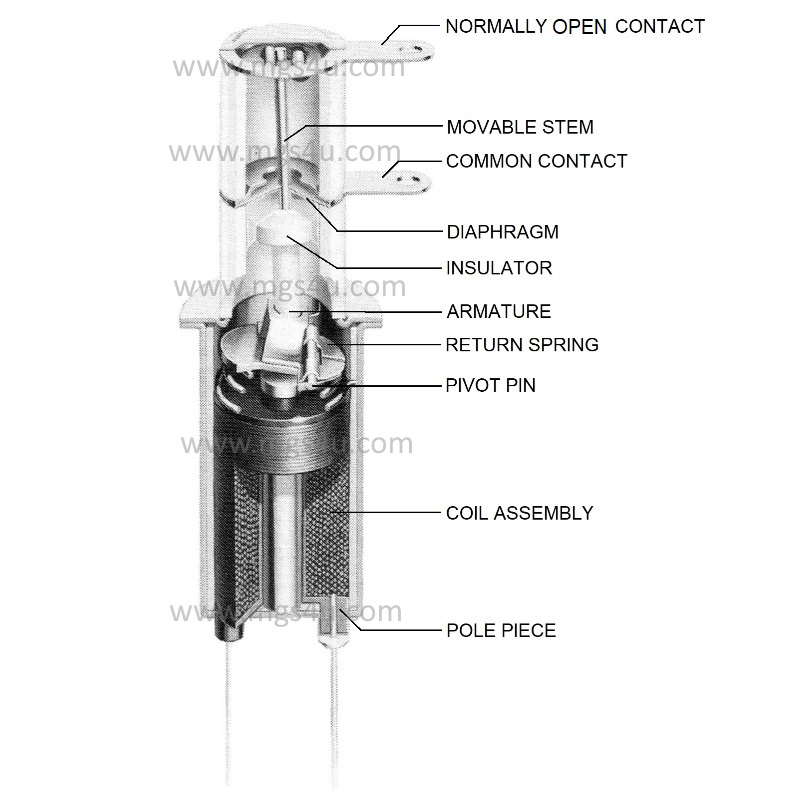

| Mounting | With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. See our article on mounting diaphragm type relays here: How to Mount Diaphragm/Stacked Vacuum Relays |
| Condition | Brand New, unused. Guaranteed good. |
| (Other variations of this relay are sometimes available, inquire) | |
| Greenstone | Jennings |
| VF80 | RF80 |
| VF80-26S | RF80-26S |
Need a SPDT version? Checkout the Greenstone V43C334
Running MORE Power? Checkout the Greenstone V32WP
All Single Pole Single Throw Vacuum Relays (SPST)
All Vacuum Relays (SPST, SPDT, DPDT)
