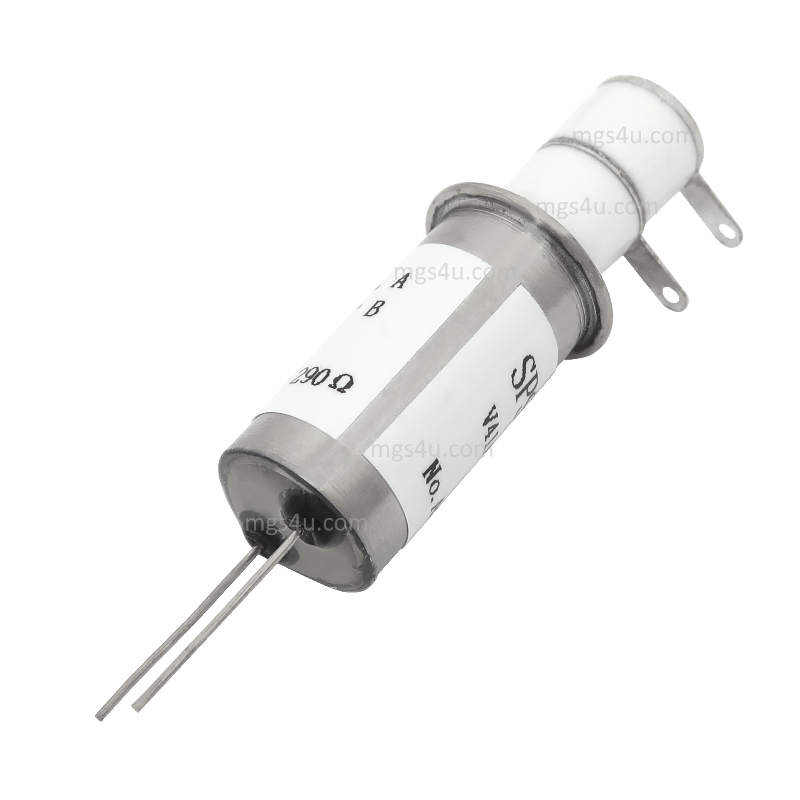

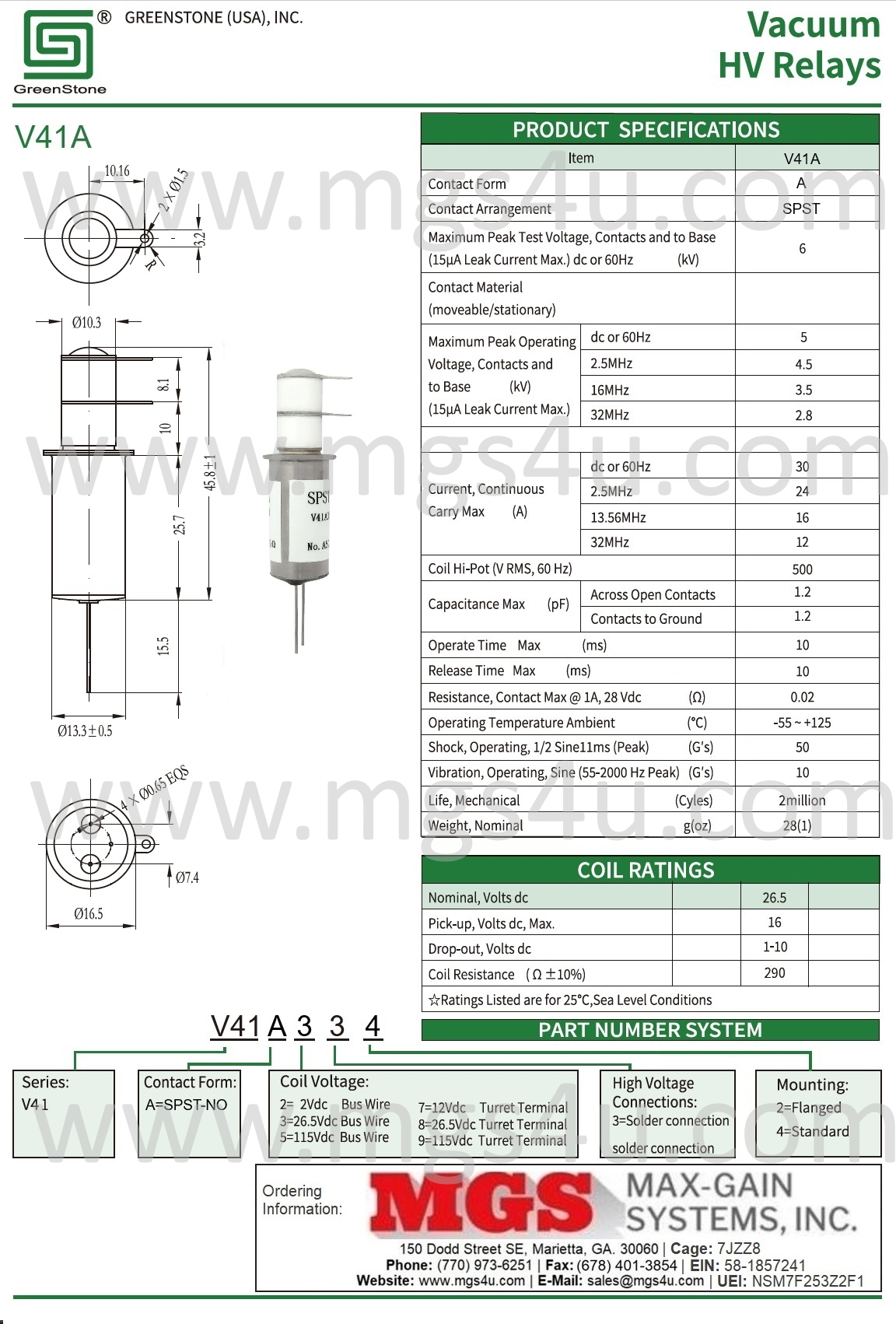

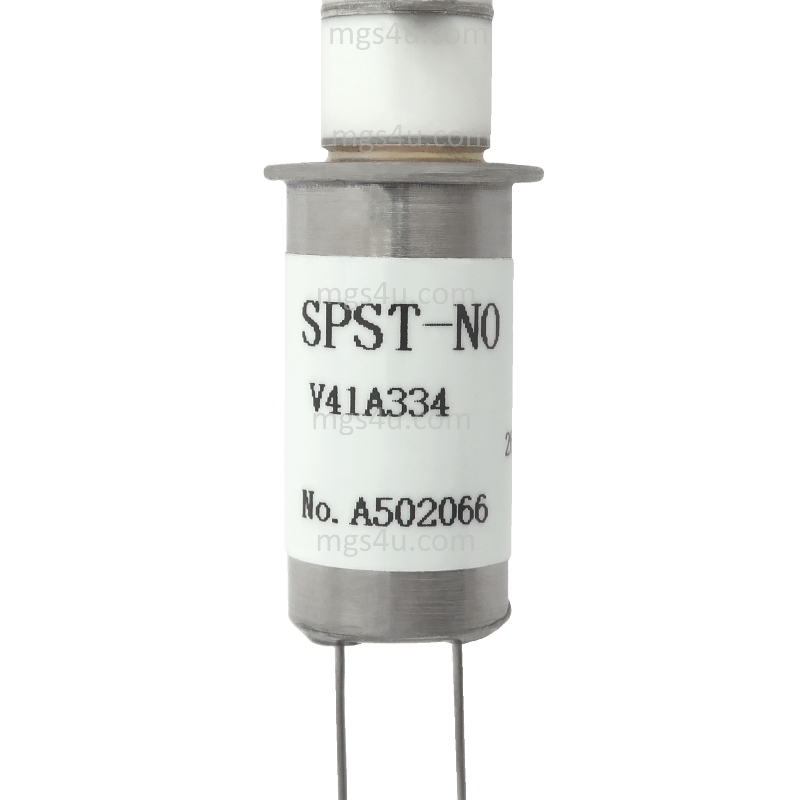

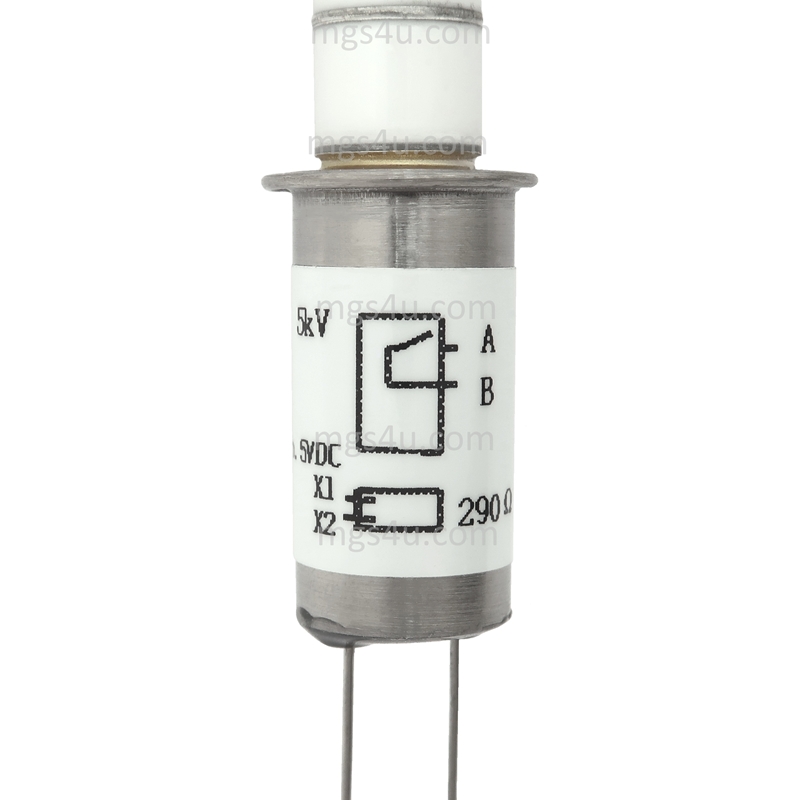

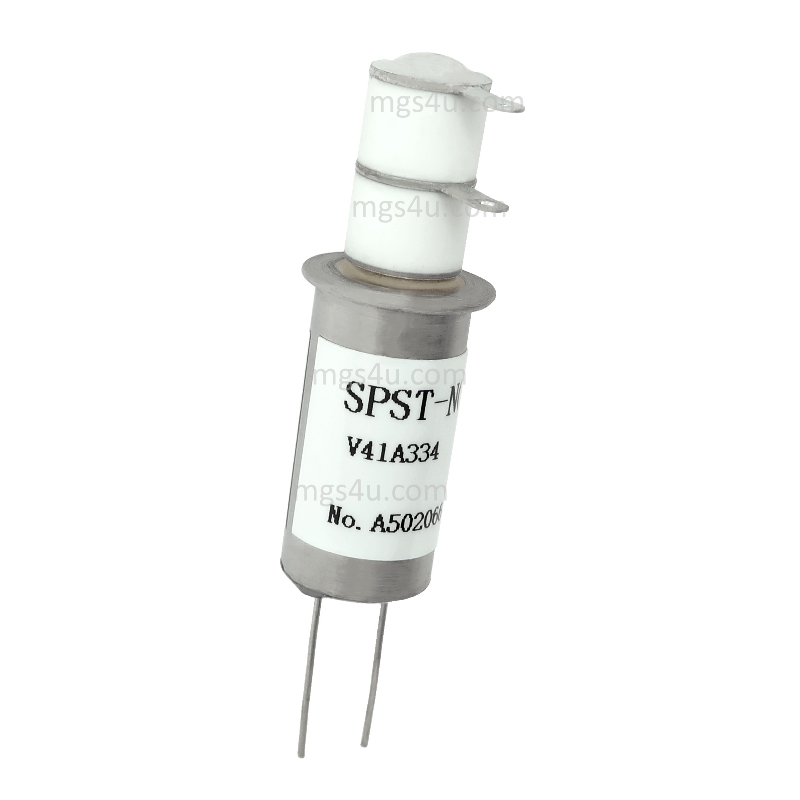

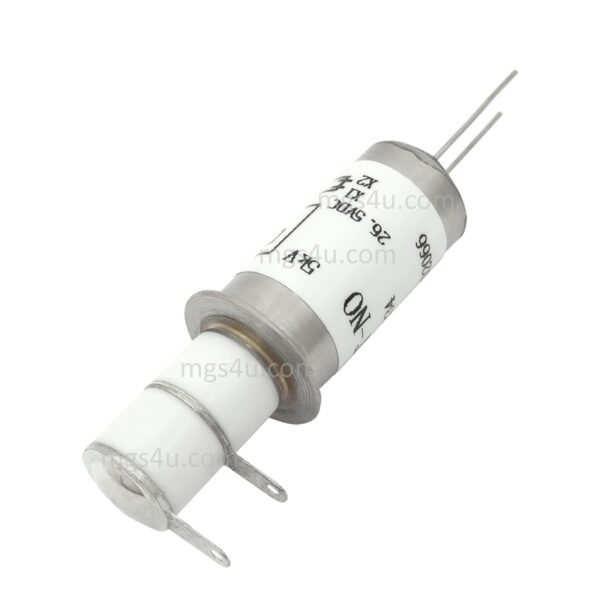

Greenstone V41A334 SPST-NO Vacuum Relay
| Military Specs | MIL-R-83725, M83725/21-002, 83725-96-0193, MIL-DTL-83725/21, and MK41A334-002 |
| Peak Test Voltage | 6 kV |
| Peak Operating Voltage | 5 kV |
| Current Carry Amps (RMS) | 30 amps @ 60 Hz |
| Contact Close Speed | 10 MS (Milliseconds) |
| Contact Release Speed | 10 MS (Milliseconds) |
| Rated Life Operations | 2,000,000 |

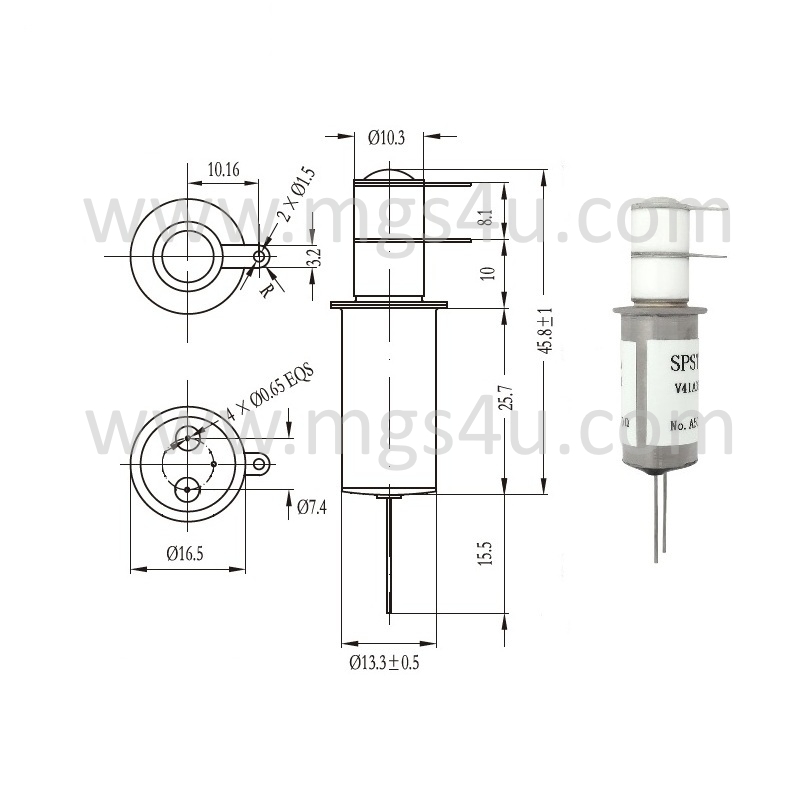

| Important Dimensions | |
| Max Length | 1.80 in / 45.8 mm |
| Max Diameter | 0.65 in / 16.50 mm |
| Mounting Hole Diameter | 0.55 in / 14 mm |
| Weight | 0.6 oz / 16 g |
| Mounting | With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. |
| Condition | Brand New, unused. Guaranteed good. |
| (Other variations of this relay are sometimes available, inquire) | |||
| Greenstone | Gigavac | GL-Vac | Kilovac |
| V41A232 | G41A232 | GL41A232 | K41A232 |
| V41A234 | G41A234 | GL41A234 | K41A234 |
| V41A332 | G41A332 | GL41A332 | K41A332 |
| V41A334 | G41A334 | GL41A334 | K41A334 |
| V41A532 | G41A532 | GL41A532 | K41A532 |
| V41A534 | G41A534 | GL41A534 | K41A534 |
| V41A732 | G41A732 | GL41A732 | K41A732 |
| V41A734 | G41A734 | GL41A734 | K41A734 |
| V41A832 | G41A832 | GL41A832 | K41A832 |
| V41A834 | G41A834 | GL41A834 | K41A834 |
| V41A932 | G41A932 | GL41A932 | K41A932 |
| V41A934 | G41A934 | GL41A934 | K41A934 |
Need a SPDT version? Checkout the Greenstone V41C334
Running MORE Power? Checkout the Greenstone V32WP
All Single Pole Single Throw Vacuum Relays (SPST)
All Vacuum Relays (SPST, SPDT, DPDT)
