In this article we will be answering the question, “How do I mount a diaphragm Vacuum Relay?” and “How I mount a stacked vacuum relay?”. We will be diving into mounting options recommended by the manufacturers as well as other methods.
What is a Diaphragm / Stacked Vacuum Relay
In the diaphragm relay, the actuator is placed outside of the vacuum envelope. This simple, low cost design approach makes use of a thin molybdenum diaphragm which allows contact movement to be transferred into the vacuum package from the external motor assembly. This basic design is used in a large number of vacuum relay products.
The assembly containing the coil is the driving part of the relay and will be connected to the driver circuit. As voltage is applied to the coil, a magnetic field is built up and an electro-magnetic force is created. This force is used to move the mechanism and this the movable contact inside the vacuum envelope. The contact transfers from the N/C to the N/O position in SPDT and DPDT models or, in a SPST relays, opens or closes your high voltage circuit.
Mounting Options:
Because we specialize in vacuum relays through sales and information, we also handle surplus relays and old stock relays. We are the only source for surplus relays as we also dismantle surplus equipment. In doing so we have picked up a ton of tips and tricks including many mounting methods. Below will be many methods in no particular order:

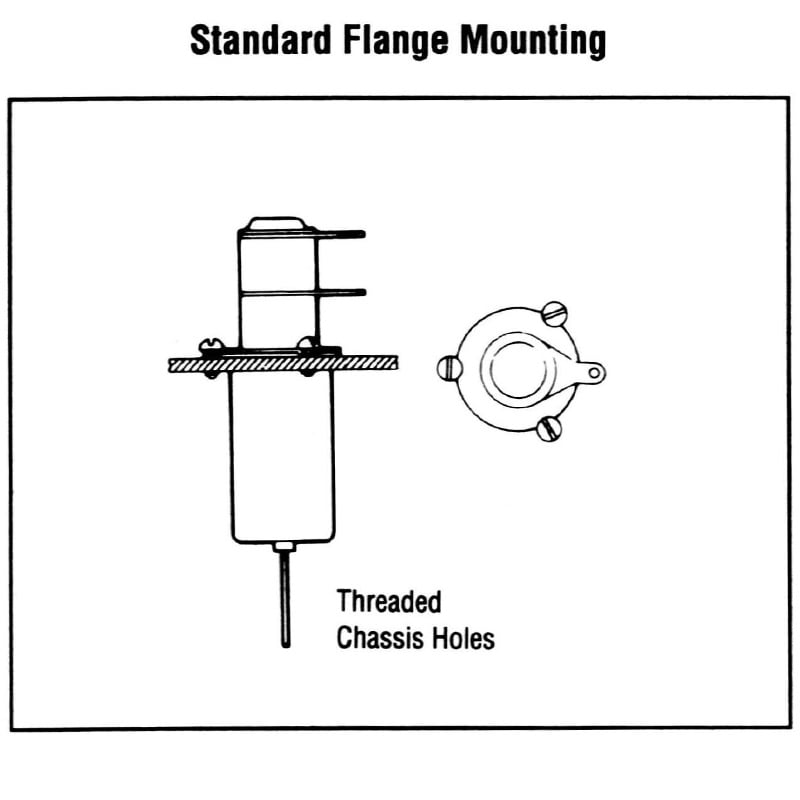

Standard Flange Mounting Method

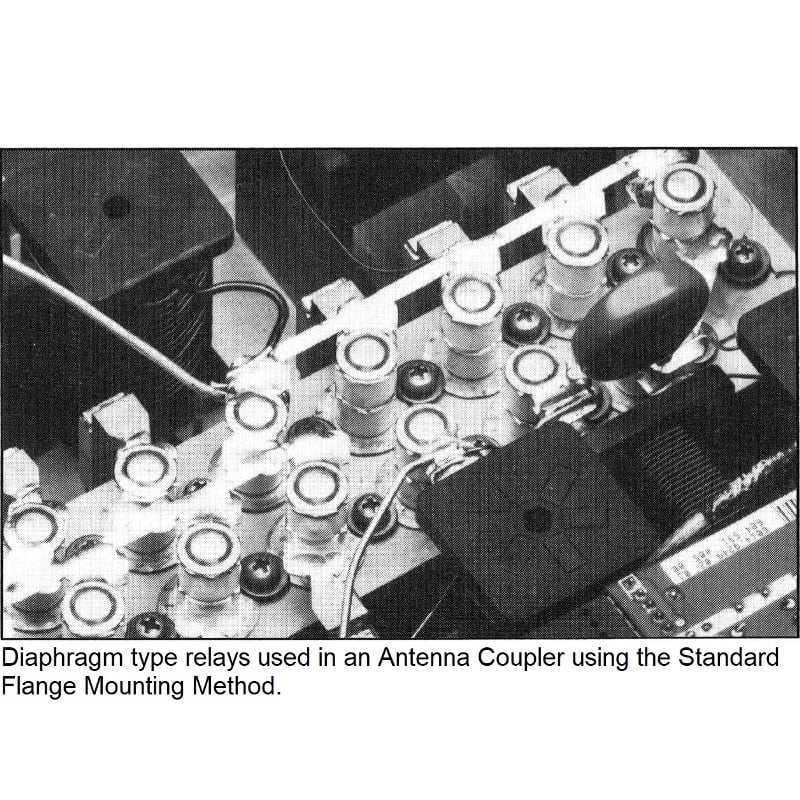

Each diaphragm type relay has a small flange at the base of the ceramic/dielectric stack. This flange is just a little bit bigger than the diameter of the lower body of the relay. Any hole drilled into a plate for mounting should be just large enough for the main body of the relay to fit through. The Standard Flange Mounting method is great for mounting many relays close together and in a small package. The heads of the screws used is what holds the relays in. Three small screws or 2 large screws can be used to secure the relay.
Optional Flange Mounting Method

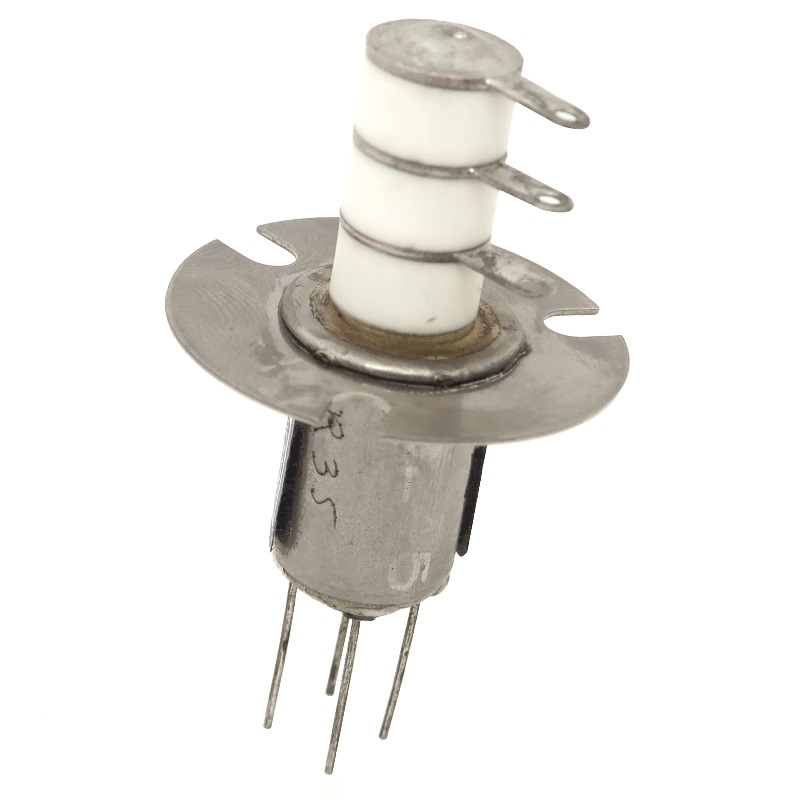

Some diaphragm type relays come with a permanently mounted wide mounting flange. They will either have three holes or three slots to accept screws for mounting.

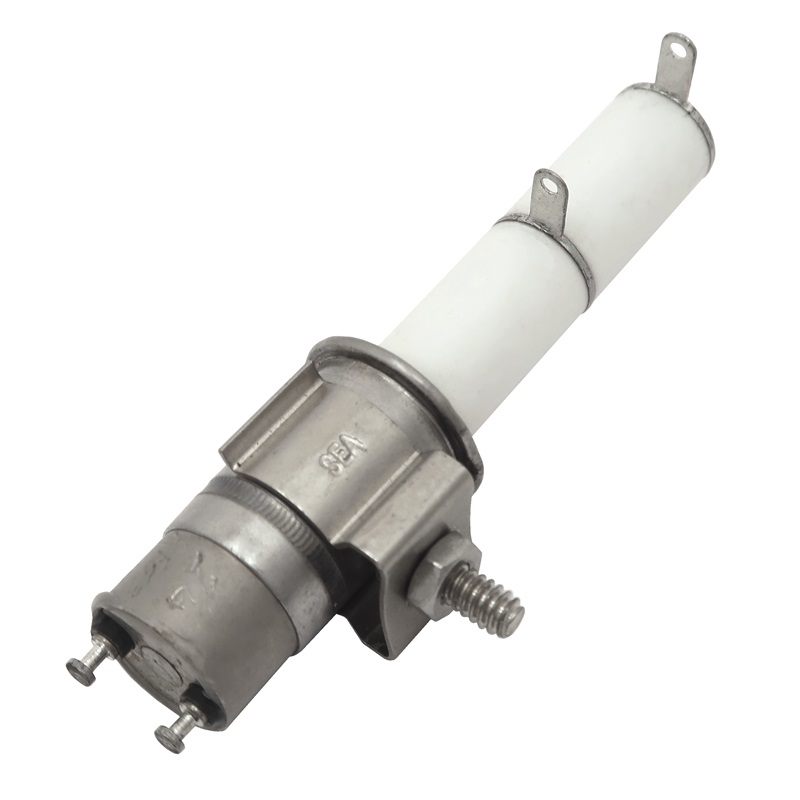

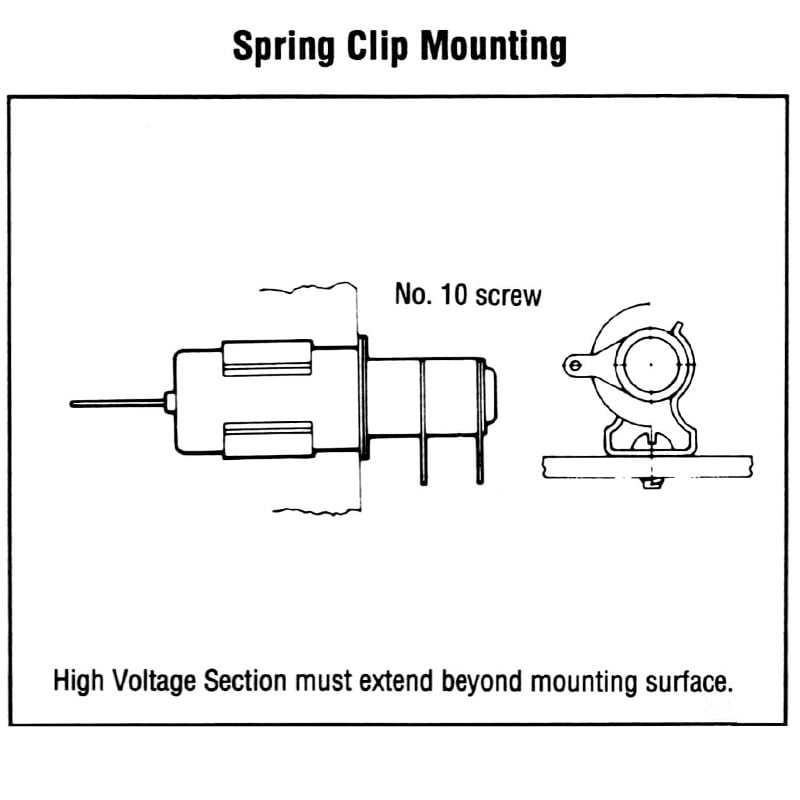

Spring Clip Mounting
Spring Clips are a quick and easy way to mount a relay. The easiest way to source these is to search for “fuse” clips that will clip the correct diameter of the relay body.

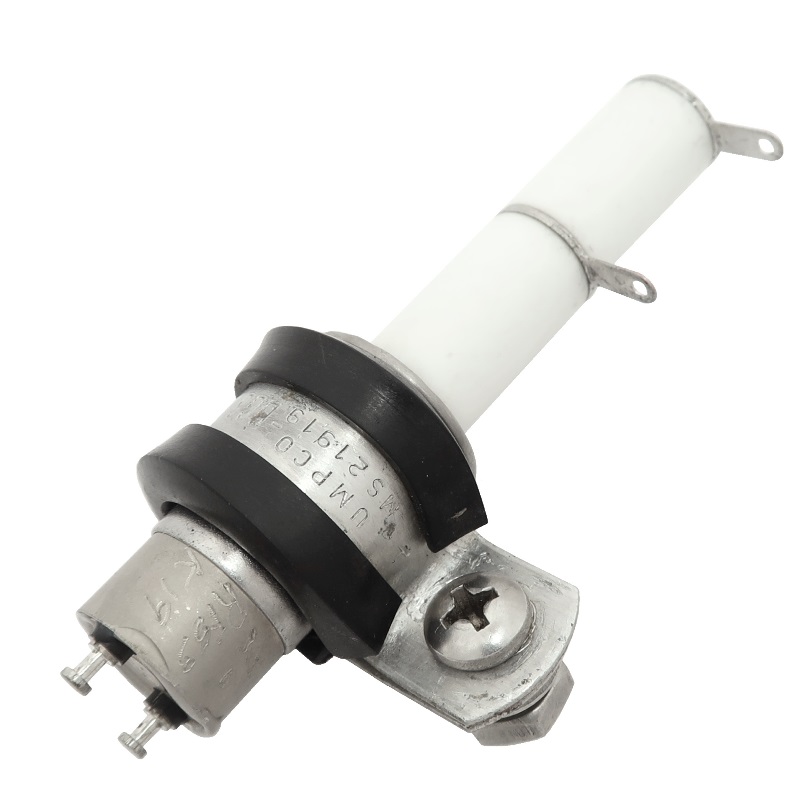

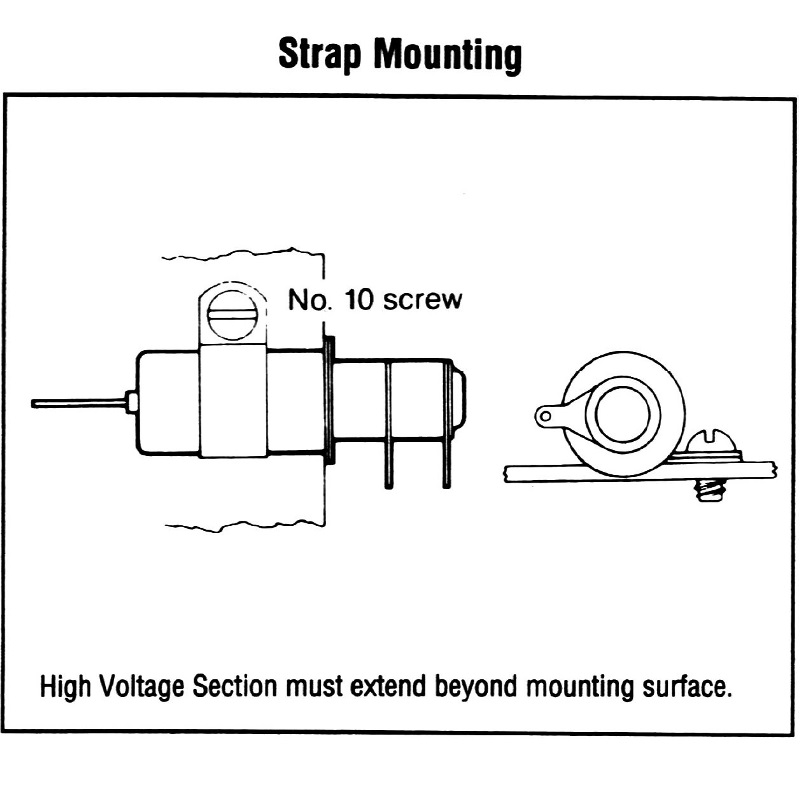

Strap / P-Clip Mounting
Straps and especially P-Clips are widely used in electrical work. They are widely available and easy to come by. There are even some with plastic and silicone inserts to help grip a relay.

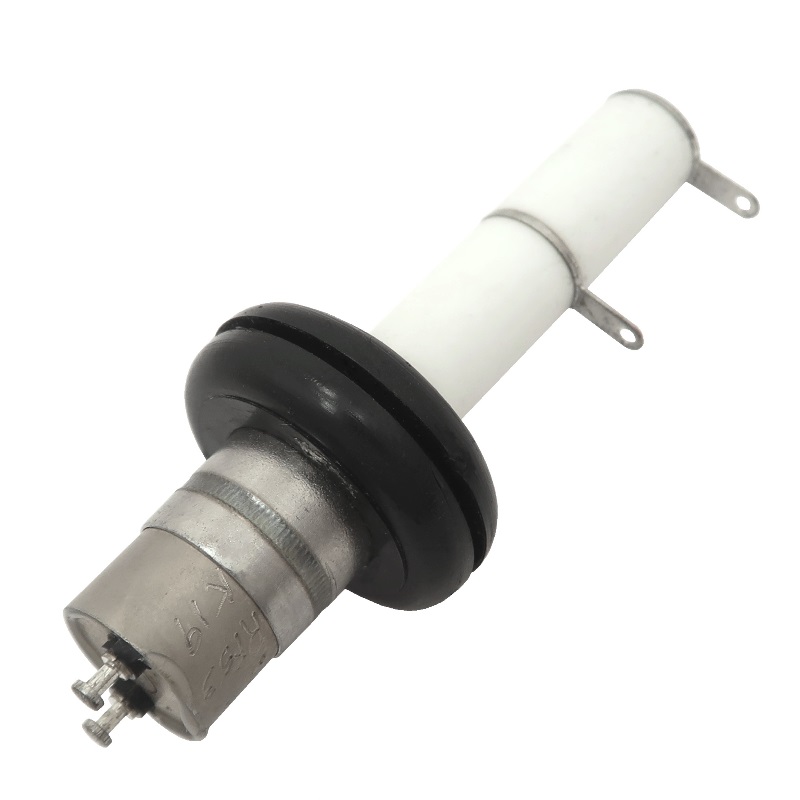

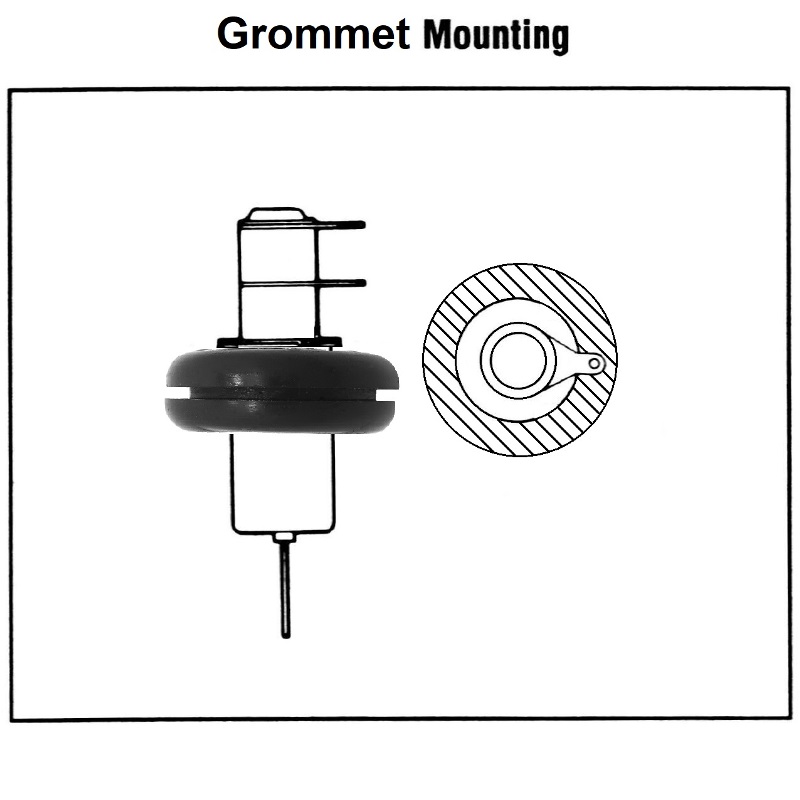

Grommet Mounting
Grommets are widely available. They are sold in variety packs making it easy to find the one you need. They re available in rubber and in silicone versions.
